Jabsco 1210-0001-P Neoprene Impeller Kit
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Jabsco Profile K Neoprene Impeller Kit – 1210-0001-P / 6-12100001P

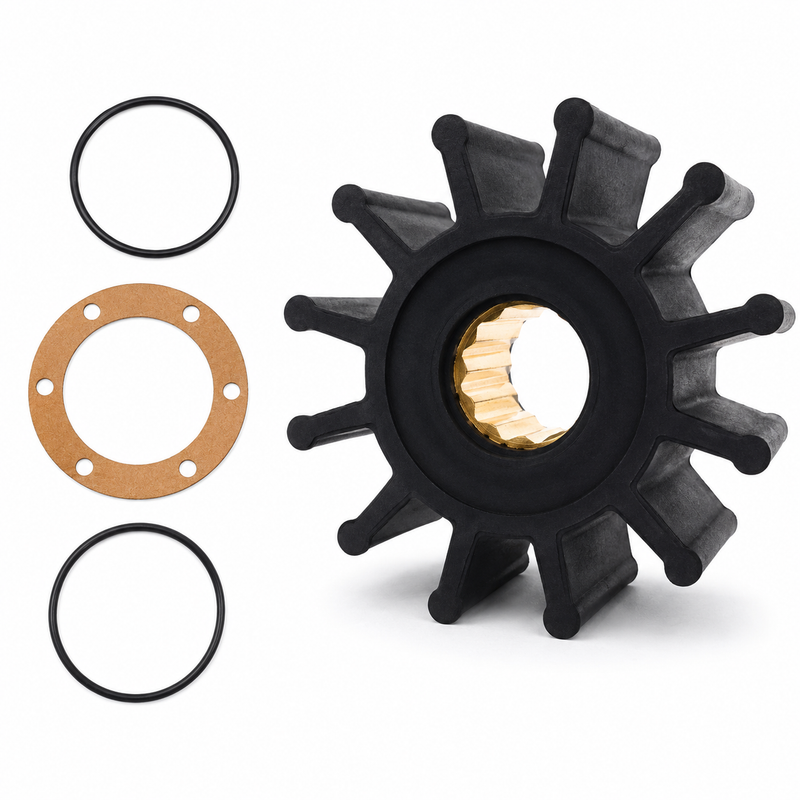

The Jabsco 1210-0001-P is a 12-blade neoprene flexible impeller kit for compatible marine engine-cooling, fresh-water transfer, salt-water transfer and general-purpose bronze pumps. It features a brass spline-drive hub and measures approximately 2-1/4 inches in diameter by 1-1/4 inches wide. Neoprene is the standard compound for raw-water cooling and water-transfer applications where exposure to oil or diesel fuel is minimal.
Key Features
- Jabsco part number: 1210-0001-P
- Land 'N' Sea SKU: 6-12100001P
- Impeller profile: K
- Twelve flexible blades
- Neoprene construction
- Brass hub insert
- Spline-drive connection
- Drive size: 7
- Outside diameter: 2-1/4 in / 57 mm
- Width: 1-1/4 in / approximately 31.5–32 mm
- Shaft diameter: 5/8 in / approximately 16 mm
- UPC / GTIN: 671880570718
- Service-kit references include the impeller, spline seal or plug and applicable sealing components.
Pump Compatibility
The 1210-0001-P is used across a broad range of compatible Jabsco flexible-impeller pumps, including:
- 1673-series
- 3270-series
- 3370-series
- 3380-series
- 5850-series
- 6490-series
- 9970-series
- 9990-series
- 10550-series
- 10950 and 10970-series
- 11410 and 11850-series
- 21690 and 21820-series
- 29500, 29520, 29530 and 29540-series
- 50280-series
- 52040-series
- Johnson Pump 09-1027B-10 Impeller Kit
The complete pump model should always be checked because some pump families were offered with different impeller compounds or internal configurations.
Engine and Generator Compatibility
Supported OEM cross-references place this impeller in compatible raw-water pumps used on selected:
- Volvo Penta marine engines
- Yanmar marine engines
- Onan generators
- Perkins marine engines
- Johnson Pump installations
- Vetus cooling systems
Compatibility is determined by the installed pump and original impeller number rather than engine brand alone.
Fitment Notice
Before ordering, confirm that the original impeller requires:
- Twelve blades
- 57 mm outside diameter
- Approximately 32 mm width
- 16 mm spline-drive shaft
- Brass insert
- Profile K configuration
- Neoprene construction
- Jabsco 1210-0001 or 1210-0001-P specification
Do not confuse this impeller with the 1210-0003-P nitrile impeller kit. Both versions share the same dimensions and spline-drive configuration, but the 1210-0001-P is neoprene for engine cooling and water transfer, while the 1210-0003-P is nitrile for bilge or transfer applications involving heavier oil and diesel contamination.
When This Part Needs Replacement
Replace the impeller when:
- Raw-water or exhaust-water flow becomes weak
- Engine or generator temperature begins rising
- The pump becomes difficult to prime
- The blades are cracked, hardened or permanently curved
- Blade tips are torn or missing
- The brass spline hub becomes loose or damaged
- The pump has operated dry
- Annual preventive cooling-system service is due
A flexible impeller should be replaced preventively rather than being operated until the blades fail and enter the cooling system.
Installation Notes
- Stop the engine and isolate the starting circuit.
- Close the raw-water intake seacock.
- Remove the pump end cover and old gasket or O-ring.
- Pull the old impeller by gripping the hub with a suitable removal tool or pliers.
- Do not pry against the pump face with a screwdriver.
- Recover missing blade fragments from hoses, oil coolers and heat exchangers.
- Inspect the pump bore, cam, cover plate, shaft and splines.
- Apply a light coating of suitable lubricant to the impeller bore and blades.
- Align the brass spline hub carefully with the pump shaft.
- Install the correct spline seal and cover sealing component.
- Reopen the seacock and verify strong water flow immediately after startup.
A light coating of lubricant assists installation and helps protect the impeller during initial dry priming.
Alternate / Cross-Reference Part Numbers
- Jabsco: 1210-0001-P
- Earlier Jabsco number: 1210-0001
- Land 'N' Sea SKU: 6-12100001P
- Compact format: 12100001P
- Volvo Penta: 860203, 3856039-7, 875811-2
- Yanmar: 129470-42530
- Johnson Pump: 09-1027B, 09-1027B-1, 09-1028B-9
- Vetus: IMP00201
- Ancor: J050007
- CEF: 500107
- Onan: 132-0162
- Perkins: 0460038
- UPC / GTIN: 671880570718
Parts Desk Insight
The 1210-0001-P and 1210-0003-P are physically similar, so the fluid being pumped is the critical distinction. Choose this neoprene 0001 version for raw-water cooling and normal fresh- or salt-water transfer. Confirm the 12-blade, 57 × 32 mm configuration and 5/8-inch spline hub before ordering.
