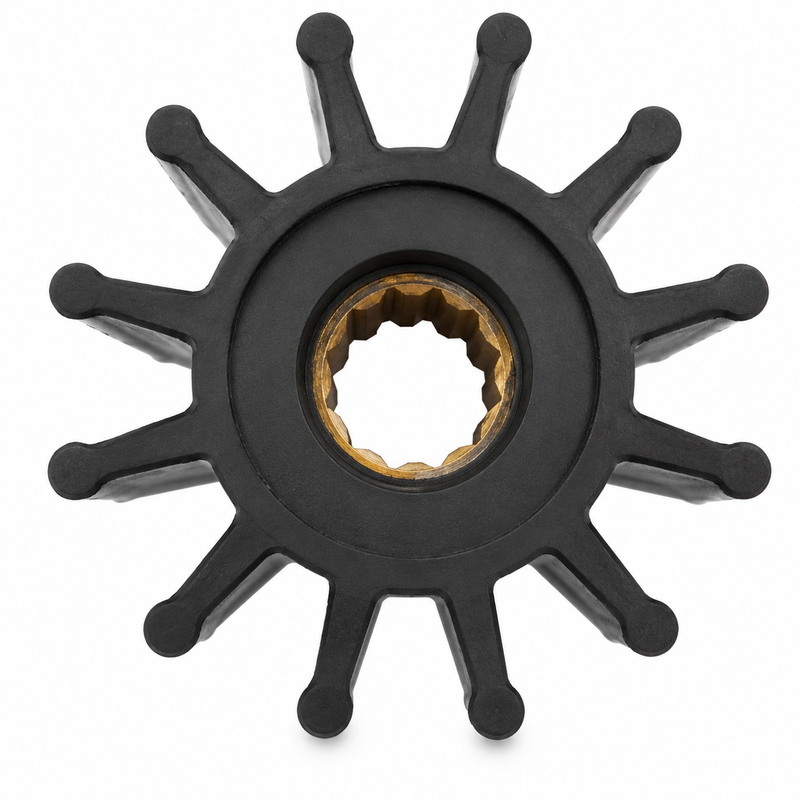

Jabsco 6-135540001P Replacement Neoprene Impeller
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Jabsco Profile K Neoprene Impeller Kit – 13554-0001-P / 6-135540001P
Product Description
The Jabsco 13554-0001-P is a large 12-blade neoprene flexible impeller kit for compatible marine raw-water cooling, bilge, transfer and general-purpose pumps. It features a brass 12-spline hub and is designed for fresh water, salt water and engine-cooling service where only limited oil or diesel contamination is present.
Key Features
- Jabsco part number: 13554-0001-P
- Land 'N' Sea SKU: 6-135540001P
- Impeller profile: K
- Twelve flexible blades
- Neoprene construction
- Brass hub insert
- 12-spline drive
- Outside diameter: 2-1/4 in / approximately 57 mm
- Width: 1-29/32 in / approximately 48 mm
- Shaft diameter: 5/8 in / approximately 16 mm
- UPC / GTIN: 671880588126
- Kit includes the impeller, spline seal and installation lubricant.
Pump and Engine Compatibility
The 13554-0001-P is used in compatible marine raw-water pumps requiring a Profile K, 57 × 48 mm neoprene impeller with a 5/8-inch spline-drive hub. Documented cross-reference applications include:
- Johnson Pump F6B-9 and compatible inboard pumps
- Selected Indmar crank-driven raw-water pumps
- Indmar Monsoon 320–350 hp applications
- Selected Volvo Penta petrol-engine raw-water pumps
- Yanmar 6LP-series diesel applications
- Selected Yamaha inboard applications
Compatibility depends on the installed pump and original impeller number rather than engine brand alone.
Fitment Notice
Before ordering, confirm that the original impeller requires:
- Twelve blades
- Approximately 57 mm outside diameter
- Approximately 48 mm width
- 5/8-inch shaft
- 12-spline brass hub
- Profile K configuration
- Neoprene construction
Do not confuse the 13554-0001-P with the Jabsco 1210-0001-P. Both are 12-blade, 2-1/4-inch-diameter impellers with a 5/8-inch spline hub, but the 1210 is only 1-1/4 inches wide, while the 13554 is nearly 1-29/32 inches wide.
When This Part Needs Replacement
Replace the impeller when:
- Exhaust-water discharge or pump output decreases
- Engine temperature begins rising
- The pump becomes difficult to prime
- The blades become cracked, hardened or permanently curved
- Blade tips are worn or missing
- The spline hub becomes loose or damaged
- The pump has operated dry
- Annual preventive cooling-system service is due
Jabsco guidance recommends replacing flexible impellers at least annually, or sooner according to engine duty and operating conditions.
Installation Notes
- Stop the engine and isolate the starting circuit.
- Close the raw-water intake seacock.
- Remove the pump cover and old sealing component.
- Pull the old impeller with a proper removal tool or pliers gripping the hub.
- Do not pry against the pump face with a screwdriver.
- Recover any missing vane fragments from hoses, coolers and heat exchangers.
- Inspect the pump bore, cam, cover plate, shaft and splines.
- Lubricate the replacement impeller before installation.
- Align the splined brass hub carefully with the pump shaft.
- Install the supplied seal and reinstall the cover.
- Reopen the seacock and confirm strong water flow immediately after startup.
Lubricating the impeller eases installation and protects it during the pump's initial prime.
Alternate / Cross-Reference Part Numbers
- Jabsco: 13554-0001-P
- Earlier Jabsco reference: 13554-0001
- Land 'N' Sea SKU: 6-135540001P
- Compact format: 135540001P
- Johnson Pump: 09-812B
- Johnson Pump: 09-812B-1
- Sierra: 18-3306
- Yanmar: 119773-42600
- Yanmar related references:
- 192470-42530
- 192470-42532
- Yamaha: 6TA-12457-00
- Volvo Penta:
- 21951354
- 3842786
- Indmar: S685007
- CEF: 500124
- JMP: 7136
- UPC / GTIN: 671880588126
Compatible & Related Products
- Johnson Pump 09-812B-1 Impeller Kit (F6) – Johnson Pump F6B cross-reference for the same spline-drive application
- Jabsco 4568-0001-P Profile K Neoprene Impeller Kit – Related Profile K Jabsco impeller kit
- Jabsco 1210-0001-P Neoprene Impeller Kit – Narrower 1-1/4-inch Profile K variant; confirm width before ordering
Parts Desk Insight
The critical fitment detail is the impeller's unusual 1-29/32-inch width. Several Jabsco impellers share the same 2-1/4-inch diameter and 5/8-inch spline hub, so confirming the full width and original pump number is essential before ordering.
