Jabsco 17018-0001-P Neoprene Impeller Kit
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Jabsco Profile M Neoprene Impeller Kit – 17018-0001-P / 6-170180001P
Product Description

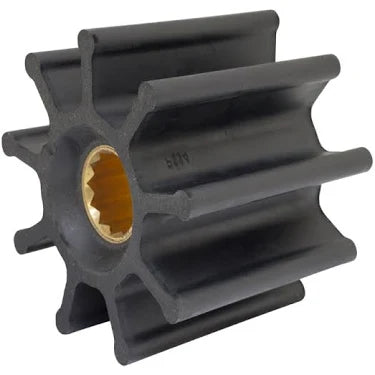

The Jabsco 17018-0001-P is a large Profile M flexible impeller kit for compatible marine diesel engine-cooling and water-transfer pumps. It uses an eight-blade neoprene impeller with a brass spline-drive hub and measures approximately 2-9/16 inches in diameter by 3 inches wide. The kit is associated with selected Caterpillar, Volvo Penta and MerCruiser diesel raw-water pump applications.
Key Features
- Jabsco part number: 17018-0001-P
- Land 'N' Sea SKU: 6-170180001P
- Impeller profile: M
- Eight flexible blades
- Neoprene construction
- Brass hub insert
- Spline-drive connection
- Outside diameter: 2-9/16 in / approximately 65 mm
- Width: 3 in / approximately 76 mm
- Shaft diameter: 5/8 in / approximately 16 mm
- Compatible pump references: 21890, 23340 and 29700
- UPC / GTIN: 671880588133
- Kit references include the impeller, gasket, O-ring and installation lubricant.
Pump and Engine Compatibility
Documented applications include:
- Jabsco 21890-series pumps
- Jabsco 23340-series pumps
- Jabsco 29700-series pumps
- Selected Caterpillar marine diesel raw-water pumps
- Selected Volvo Penta D6 and D9 engine-cooling pumps
- Selected large MerCruiser diesel engine-cooling pumps.
Fitment is determined by the installed pump, engine serial number and original impeller reference rather than engine brand alone.
Fitment Notice
Before ordering, confirm that the original impeller requires:
- Eight blades
- Approximately 65 mm outside diameter
- Approximately 76 mm width
- 16 mm spline-drive shaft
- Brass hub insert
- Profile M configuration
- Neoprene construction
- Jabsco 17018-0001-P specification
This impeller is significantly wider than many other 65 mm Jabsco models. The full 3-inch width and 5/8-inch spline hub are critical identification points.
When This Part Needs Replacement
Replace the impeller when:
- Raw-water or exhaust-water discharge weakens
- Engine temperature begins rising
- The pump struggles to prime
- Blades become cracked, hardened or permanently folded
- Blade tips are torn or missing
- The brass spline hub becomes loose or damaged
- The pump has operated without an adequate water supply
- Scheduled annual cooling-system service is due
Flexible impellers should generally be replaced at least annually, or sooner in high-duty engine-cooling service. Neoprene is intended primarily for fresh water, salt water and engine-cooling applications where only minor oil or diesel contamination is present.
Installation Notes
- Stop the engine and isolate the starting circuit.
- Close the raw-water intake seacock.
- Remove the pump cover and old sealing components.
- Use an appropriate impeller puller or suitable pliers to grip the hub.
- Do not pry against the pump housing or sealing face with a screwdriver.
- Recover missing blade fragments from hoses, coolers and heat exchangers.
- Inspect the pump bore, cam, shaft, splines and cover plate.
- Apply the supplied lubricant to the impeller before installation.
- Align the brass spline hub carefully with the pump shaft.
- Install the new gasket and O-ring as applicable.
- Reopen the seacock and verify strong water flow immediately after startup.
Do not allow the pump to run dry. Flexible-impeller pumps may require a short priming period, but prolonged dry operation can rapidly overheat and destroy the neoprene blades.
Alternate / Cross-Reference Part Numbers
- Jabsco: 17018-0001-P
- Earlier Jabsco number: 17018-0001
- Land 'N' Sea SKU: 6-170180001P
- Compact format: 170180001P
- Caterpillar: 3N5895
- Volvo Penta:
- 21730348
- 3583602
- 3593573
- 3817587
- 3819486
- JMP: 7446-01
- UPC / GTIN: 671880588133
See Also
- Jabsco 6-186730001P Replacement Neoprene Impeller – Profile I – similar large-format neoprene impeller, different profile
- Sierra 3306 Johnson Pump / Jabsco Impeller Kit – aftermarket alternative
Parts Desk Insight
The easiest way to distinguish this impeller is its unusual proportion: it is only about 2-9/16 inches in diameter but a full 3 inches wide. Confirm the Profile M shape, eight blades and 5/8-inch spline hub before ordering, especially on Volvo Penta, Caterpillar and MerCruiser diesel installations.
