Jabsco Profile Q Neoprene Impeller Kit – 17936-0001-P / 6-179360001P

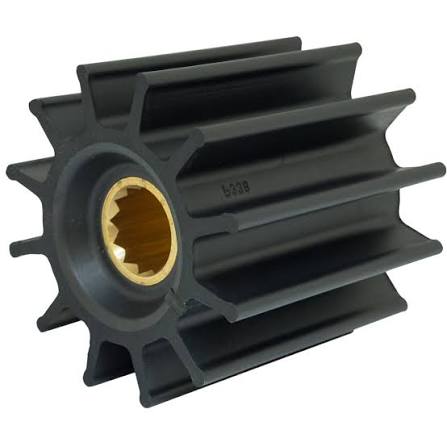

The Jabsco 17936-0001-P is a large Profile Q flexible impeller kit for heavy-duty marine engine-cooling, water-transfer and general-purpose bronze pumps. It features 12 neoprene blades, a brass spline-drive hub and an unusually large 3-3/4-inch diameter by 3-1/2-inch width. It is specified for compatible Jabsco 17490, 50270 and 52270-series pumps.
Key Features
- Jabsco part number: 17936-0001-P
- Land 'N' Sea SKU: 6-179360001P
- Impeller profile: Q
- Twelve flexible blades
- Neoprene construction
- Brass hub insert
- No. 7 spline-drive configuration
- Outside diameter: 3-3/4 in / approximately 95 mm
- Width: 3-1/2 in / approximately 89 mm
- Shaft diameter: 1 in / approximately 25 mm
- Kit includes the impeller, gasket, spline seal and installation lubricant
- Manufacturer UPC / GTIN: 671880588171
Pump Compatibility
Documented Jabsco pump applications include:
- Jabsco 17490-series
- Jabsco 50270-series
- Jabsco 52270-series
- Compatible large-capacity bronze pumps requiring a Profile Q, 12-blade neoprene impeller with a 1-inch spline-drive hub.
Engine Compatibility
Supported cross-reference applications include compatible raw-water pumps used on selected:
- Caterpillar marine engines
- Detroit Diesel marine engines
- MAN marine diesel engines
- Perkins marine engines
- Volvo Penta marine engines
- Yanmar marine engines
- Johnson Pump installations
Frequently documented OEM references include Caterpillar 4L8470, Detroit Diesel 5196168, 5198550 and 8924839, Perkins 460027, Volvo Penta 875814-6 and Yanmar 165000-35270. Fitment must be confirmed through the installed pump or original impeller number rather than engine make alone.
Fitment Notice
Before ordering, confirm that the original impeller requires:
- Twelve blades
- 3-3/4-inch outside diameter
- 3-1/2-inch width
- 1-inch spline-drive shaft
- Brass hub insert
- Profile Q configuration
- Neoprene construction
- Jabsco 17936-0001 or 17936-0001-P specification
This is a substantially larger impeller than the 65 mm Profile Y models such as the Jabsco 17937-0001-P Profile Y Neoprene Impeller Kit. Confirm all three dimensions and the spline-drive configuration before ordering.
When This Part Needs Replacement
Replace the impeller when:
- Raw-water or exhaust-water discharge decreases
- Engine operating temperature begins rising
- The pump becomes difficult to prime
- The blades become cracked, hardened or permanently folded
- Blade tips are torn or missing
- The brass spline hub becomes loose or damaged
- The pump has operated without adequate water
- Scheduled annual cooling-system service is due
Jabsco service guidance recommends replacing flexible impellers at least annually, or sooner where engine duty and operating conditions are severe.
Installation Notes
- Stop the engine and isolate the starting circuit.
- Close the raw-water intake seacock.
- Remove the pump end cover and old sealing components.
- Use a proper impeller-removal tool or suitable pliers to grip the hub.
- Do not pry against the pump housing with a screwdriver.
- Retrieve any missing blade fragments from hoses, coolers and heat exchangers.
- Inspect the pump bore, cam, shaft, splines and cover plate for wear.
- Lubricate the replacement impeller before installation.
- Align the brass spline hub carefully with the pump shaft.
- Install the supplied spline seal and cover gasket.
- Reopen the seacock and verify strong water flow immediately after startup.
For MAN applications, verify the separate engine-specific sealing O-ring; references associate MAN 51.96501-0580 with this installation, and it may not be included with the impeller kit.
Alternate / Cross-Reference Part Numbers
- Jabsco: 17936-0001-P
- Earlier Jabsco number: 17936-0001
- Land 'N' Sea SKU: 6-179360001P
- Compact format: 179360001P
- Johnson Pump: 09-814B
- Caterpillar: 4L8470
- Detroit Diesel: 5196168, 05196168, 5198550, 05198550, 8924839, 08924839
- MAN: 50.06506-0073, 50.06506.0073
- Perkins: 460027
- Vetus: IMP00801
- Volvo Penta: 875814-6, 875697, 844683, 842857
- Yanmar: 165000-35270
- UPC / GTIN: 671880588171
Parts Desk Insight
This is one of Jabsco's largest standard flexible impellers. The critical identifiers are its 3-3/4-inch diameter, 3-1/2-inch width and 1-inch spline hub. Because it is used across several heavy-duty diesel engine brands, the installed pump number or original impeller reference provides the safest fitment confirmation. Also available under the Jabsco Neoprene Impeller Kit 17936-0001-P – Flexible Raw Water Pump Service Kit listing.
