Jabsco 17954-0001-P MerCruiser Bravo Neoprene Impeller Kit
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Jabsco MerCruiser Bravo Neoprene Impeller Kit – 17954-0001-P / 6-179540001P

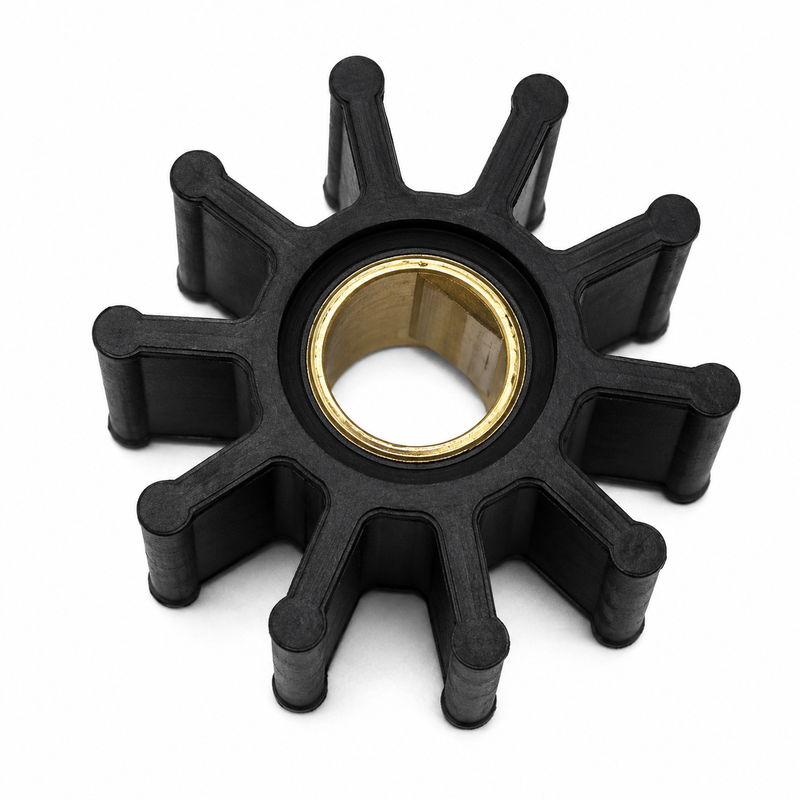

The Jabsco 17954-0001-P is a large 10-blade neoprene replacement impeller for compatible MerCruiser Bravo raw-water pumps and Jabsco 43210-series engine-cooling pumps. It features a brass single-flat D-drive hub and measures approximately 2-9/16 inches in diameter by 2 inches wide.
Key Features
- Jabsco part number: 17954-0001-P
- Land 'N' Sea SKU: 6-179540001P
- Impeller profile: Y
- Ten flexible blades
- Neoprene construction for fresh- and saltwater pumping
- Brass hub insert
- Single-flat D-shaft drive
- Outside diameter: 2-9/16 in / approximately 65 mm
- Width: 2 in / approximately 51 mm
- Shaft diameter: 3/4 in / approximately 19 mm
- UPC / GTIN: 671880588188
- Packaged kit references include the impeller, cover gasket or O-ring and installation lubricant.
Pump and Engine Compatibility
Documented applications include:
- Jabsco 43210-series bronze engine-cooling pumps
- Jabsco 43210-0001
- MerCruiser Bravo raw-water pump assemblies requiring impeller 47-59362
- Compatible pulley-driven replacement cooling pumps using Jabsco impeller 17954-0001-P.
This impeller is commonly associated with MerCruiser Bravo cooling systems, but final fitment should be confirmed from the installed pump number, original impeller number or engine serial-number parts diagram.
Fitment Notice
Before ordering, confirm that the original impeller requires:
- Ten blades
- Approximately 65 mm outside diameter
- Approximately 51 mm width
- 19 mm single-flat D-drive shaft
- Brass hub
- Neoprene construction
- Jabsco Profile Y configuration
- Jabsco 17954-0001-P or MerCruiser 47-59362 specification.
Several Jabsco impellers share a similar 2-9/16-inch diameter, so the full 2-inch width and 3/4-inch D-shaped hub are essential identification details. Also available as the Jabsco Neoprene Impeller Kit 17954-0001-P – Flexible Raw Water Pump Service Kit.
When This Part Needs Replacement
Replace the impeller when:
- Exhaust-water discharge becomes weak
- Engine temperature begins rising
- The raw-water pump struggles to prime
- Blades become cracked, hardened or permanently folded
- Blade tips are damaged or missing
- The brass hub slips on the pump shaft
- The pump has operated without an adequate water supply
- Annual preventive cooling-system service is due
Badly bent or missing blades indicate that replacement is required, and any missing fragments should be recovered from downstream cooling-system components.
Installation Notes
- Stop the engine and isolate the starting circuit.
- Close the raw-water intake seacock.
- Remove the pump cover and old gasket or O-ring.
- Pull the old impeller with an appropriate impeller-removal tool.
- Avoid prying against the pump housing or sealing surface.
- Recover missing vane fragments from hoses, coolers and heat exchangers.
- Inspect the pump bore, cam, wear plate, cover and drive shaft.
- Apply the supplied lubricant to the new impeller.
- Align the hub's flat carefully with the D-shaped pump shaft.
- Install the correct gasket or O-ring and refit the cover.
- Reopen the seacock and confirm strong cooling-water discharge immediately after startup.
Alternate / Superseded Part Numbers
- Current Jabsco number: 17954-0001-P
- Earlier Jabsco number: 17954-0001
- Land 'N' Sea SKU: 6-179540001P
- Compact format: 179540001P
- Mercury MerCruiser: 47-59362
- Mercury MerCruiser: 47-59362T1
- Related MerCruiser formats: 59362, 593621, 59362A1
- UPC / GTIN: 671880588188
Parts Desk Insight
This is the large MerCruiser Bravo-style D-shaft impeller, identifiable by its 10 blades, 2-inch width and 3/4-inch single-flat hub. Smaller 2-9/16-inch Jabsco impellers may look similar in photographs, so confirm the complete width and drive shape before ordering. See also the Jabsco 17954-0001-P Flexible Raw Water Pump Service Kit listing for an alternate presentation of this part.
