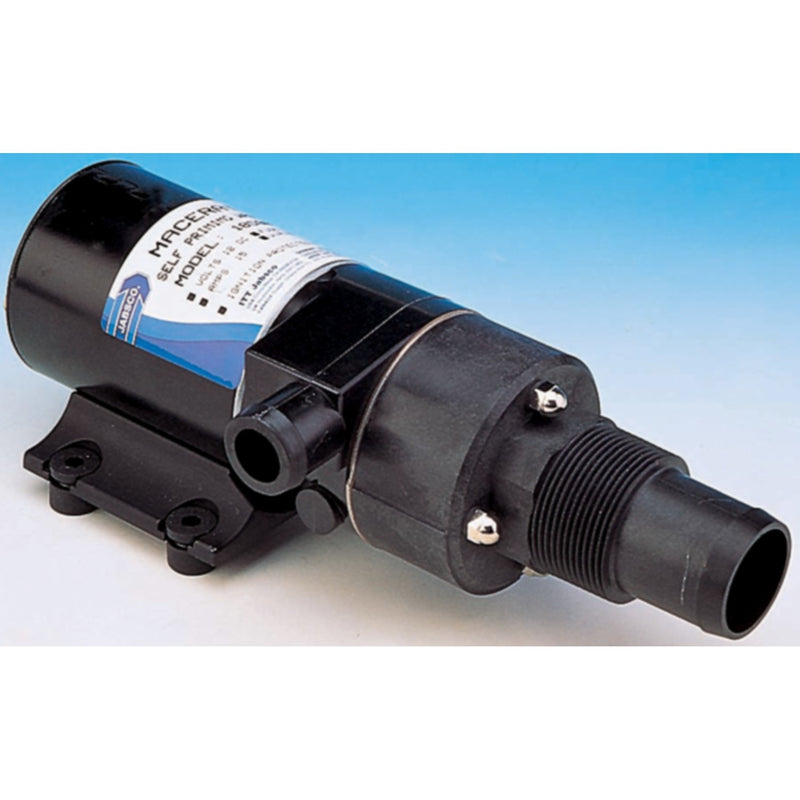

Jabsco 24V Self-Priming Marine Macerator Pump – 12 GPM (18590-2094)
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Jabsco 24V Self-Priming Marine Macerator Pump – 12 GPM (18590-2094)
A heavy-duty 24V macerator pump built for holding tank discharge on larger vessels and commercial applications running 24V electrical systems. The Jabsco 18590-2094 delivers 12 GPM flow with a four-bladed chopper, triple-sealed motor, and run-dry protection — engineered for reliable, clog-resistant operation in demanding marine environments.
Key Features
- 24V DC operation: Designed for 24V electrical systems common on larger cruisers, twin-engine powerboats, and commercial vessels.
- 12 GPM flow rate: High-volume discharge clears holding tanks quickly and efficiently.
- Four-bladed chopper: Macerates waste thoroughly to minimize clogging in the discharge line.
- Triple-sealed motor: Three-stage sealing prevents both internal and external motor corrosion — built for long-term reliability in salt water environments.
- Run-dry protection: Self-priming pump can operate safely without liquid present, protecting the motor during discharge cycles when the tank runs low.
- Self-priming to 4 ft (1.2 m): Primes automatically without manual intervention, even when mounted above the tank outlet.
- Ignition-protected: Complies with USCG 183.410 and ISO 8846 Marine ignition protection standards — safe for installation near fuel systems and in enclosed spaces.
Specifications
- Part Number: 18590-2094
- SKU: 6-185902094
- Voltage: 24V DC
- Flow Rate: 12 GPM
- Self-Priming Lift: Up to 4 ft (1.2 m) vertical
- Chopper: Four-bladed
- Motor Sealing: Triple-sealed
- Certifications: USCG 183.410, ISO 8846 Marine (ignition protection)
- Dimensions: 11⅜" L × 4¾" W × 3⅝" H
- Inlet Port: 1½" hose barb + 1½" NPT
- Discharge Port: 1" hose barb
- Weight: 5.2 kg (11.5 lbs)
Related Products
- Jabsco 18590-2092 – 12V Self-Priming Macerator Pump, 12 GPM — The 12V version of this pump for vessels with standard 12V electrical systems.
- Seachoice 12 GPM Marine Macerator Pump – 12V, 12A (17888) — Alternative 12V macerator with universal mounting bracket and easy-access unclogging knob.
- Johnson Pump 12V Macerator Pump — Another 12V macerator option for comparison.
- Jabsco Type III MSD Waste Management System – Holding Tank & Macerator (38110-0092) — All-in-one holding tank and macerator system for vessels building a complete sanitation setup.
Parts Desk Insights
The 18590-2094 is the 24V version of Jabsco’s most popular macerator pump — specify this one only after confirming the vessel runs a 24V electrical system. The 12V and 24V models are not interchangeable, and the 12V version (18590-2092) is the far more common choice for recreational boats. The triple-sealed motor and run-dry protection are the standout durability features — worth highlighting for customers who’ve had cheaper macerators fail from dry running or corrosion. The ignition-protection rating is important if the pump is going near the engine compartment or a fuel tank; confirm this with the customer before recommending a non-rated alternative. Inlet accepts both 1½" hose barb and 1½" NPT, which gives flexibility on the plumbing connection.
