Jabsco Profile HH Neoprene Impeller Kit – 18777-0001-P / 6-187770001P
Product Description
The Jabsco 18777-0001-P is a large 10-blade neoprene replacement impeller kit for compatible crankshaft-driven marine raw-water pumps. It uses a brass spline-drive hub and is designed to restore cooling-water flow in Jabsco 22110, 23800 and 50410-series pump assemblies. It also replaces the earlier Jabsco 22120-0001 impeller.
Key Features
- Jabsco part number: 18777-0001-P
- Land 'N' Sea SKU: 6-187770001P
- Impeller profile: HH
- Ten flexible blades
- Neoprene construction
- Brass hub insert
- Spline-drive connection
- Outside diameter: 2-1/4 in / 57 mm
- Width: 2 in / 51 mm
- Shaft diameter: 5/8 in / 16 mm
- UPC / GTIN: 671880574860

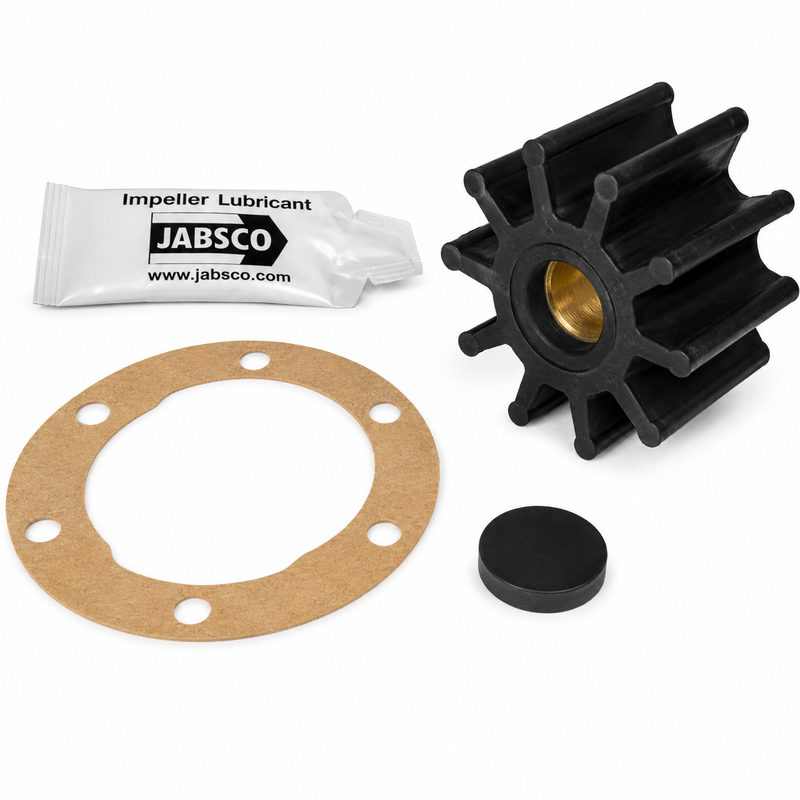

- Packaged service kit includes the impeller, sealing components and installation lubricant.
Pump Compatibility
Documented Jabsco pump applications include:
- 22110-0201
- 22110-0251
- 22110-0301
- 22110-0351
- 22740-series pumps
- 23800-0201
- 23800-0251
- 23800-0301
- 23800-0351
- 50410-1201
- 50410-1251
- 50410-1301
- 50410-1351
- 50410-1401
- 50410-1501
These are primarily crankshaft-driven raw-water pumps used on compatible petrol and diesel marine engines.
Engine Compatibility
Supported cross-reference applications include compatible installations on:
Volvo Penta
- AQ200D
- AQ205A and AQ205D
- AQ225-series
- AQ255B
- AQ260A and AQ260B
- AQ271A, B, C and D
- AQ280A
- AQ290A
- AQ311A and AQ311B
- BB225-series
- BB231A
- BB260-series
- 431A
- 570A
- 571A
- 572A
- 740-series
Other Applications
- Selected Marine Power engines
- Selected Indmar Ford and Chevrolet V8 applications
- Selected MasterCraft LT1 installations
- Selected MAN marine-engine pumps using reference 51.06506-0078
Compatibility must be confirmed by the installed pump number or original impeller reference, as engine manufacturers used different pump configurations across model years.
Fitment Notice
Before ordering, confirm that the original impeller requires:
- Ten blades
- 57 mm outside diameter
- 51 mm width
- 16 mm spline-drive shaft
- Brass hub
- Neoprene construction
- Jabsco Profile HH configuration
Do not select this impeller by diameter alone. Other 2-1/4-inch Jabsco impellers may use different widths, blade counts or drive systems.
When This Part Needs Replacement
Replace the impeller when:
- Exhaust-water discharge becomes weak
- Engine temperature starts rising
- The pump struggles to prime
- Impeller blades become cracked, hardened or permanently curved
- Blade tips are worn or missing
- The spline hub becomes loose or damaged
- The pump has operated dry
- Annual preventive cooling-system service is due
Jabsco recommends scheduled preventive replacement rather than waiting for complete failure, particularly in engine-cooling applications.
Installation Notes
- Stop the engine and isolate the starting circuit.
- Close the raw-water intake seacock.
- Remove the pump cover and old gasket or O-ring.
- Pull the impeller using a proper removal tool or suitable pliers gripping the hub.
- Do not pry against the pump face with a screwdriver.
- Recover missing blade pieces from hoses, coolers and heat exchangers.
- Inspect the pump bore, cam, cover plate, shaft and splines.
- Lubricate the new impeller before installation.
- Align the spline-drive hub carefully with the pump shaft.
- Install the supplied sealing component and refit the cover.
- Reopen the seacock and confirm strong cooling-water flow immediately after startup.
Avoid operating the neoprene impeller without water.
Alternate / Cross-Reference Part Numbers
- Jabsco: 18777-0001-P
- Earlier Jabsco number: 18777-0001
- Bulk impeller reference: 18777-0001B
- Supersedes Jabsco: 22120-0001
- Land 'N' Sea SKU: 6-187770001P
- Compact format: 187770001P
- Volvo Penta: 834794
- Volvo Penta: 876120
- Volvo Penta: 876120-7
- MAN: 51.06506-0078
- Marine Power: 0566-001P8
- Marine Power related reference: 527272
- Ancor: J050022
- UPC / GTIN: 671880574860
Parts Desk Insight
This impeller is easily identified by its unusually wide 2-inch body, ten blades and 16 mm spline-drive hub. It is commonly used in larger crankshaft-mounted Jabsco pumps, but the safest match is always the complete pump number or the older 22120-0001 reference.
