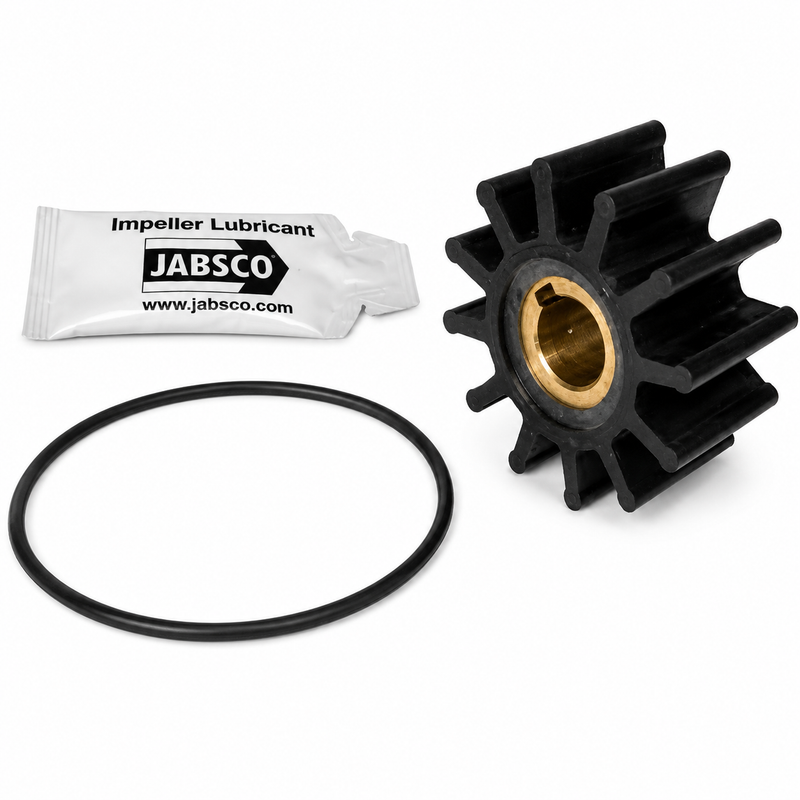

Jabsco Neoprene Impeller Kit – 18838-0001-P / 6-188380001P
Product Description
The Jabsco 18838-0001-P is a 12-blade neoprene flexible impeller kit for compatible marine engine-cooling, bilge, transfer and general-purpose bronze pumps. It uses a bronze keyed hub and directly cross-references the Sherwood 09959K / 9959 impeller used in several Sherwood G-Series raw-water pumps.
Key Features
- Jabsco part number: 18838-0001-P
- Land 'N' Sea SKU: 6-188380001P
- Impeller profile: W
- Twelve flexible blades
- Neoprene construction
- Bronze hub insert
- Keyed shaft drive
- Outside diameter: 2-7/16 in / 62.5 mm
- Width: 1-1/4 in / 32 mm
- Shaft diameter: 5/8 in / 15.9 mm
- Sherwood keyway specification: 3/16 in / 5 mm
- Kit includes the impeller, O-ring and installation lubricant
- UPC / GTIN: 671880588195
Pump Compatibility
The 18838-0001-P replaces the Sherwood 09959K / 9959 impeller used in compatible Sherwood pumps including:
- G15
- G21
- G30-2
- G30-2B
- G9901
- G9903
- J70
- K75
- K75B
Official Sherwood references identify the 09959K impeller in these G-Series pump families.
Engine Compatibility
The corresponding Sherwood 9959-size impeller is associated with compatible raw-water pump installations from:
- Chris-Craft
- Chrysler Marine
- Commander
- Crusader
- Onan
- OMC
- Perkins
- Pleasurecraft Marine / PCM
- Volvo Penta
- Westerbeke
- Selected Universal and Yamaha applications
Documented examples include Pleasurecraft 302 and 351 engines, Chris-Craft 350 applications and Onan MDL3 and MDL4 installations. Compatibility must be confirmed through the installed pump or original impeller number rather than engine brand alone.
Fitment Notice
Before ordering, confirm that the original impeller requires:
- Twelve blades
- 2-7/16-inch diameter
- 1-1/4-inch width
- 5/8-inch keyed shaft
- Bronze hub
- Neoprene construction
- Jabsco 18838-0001-P or Sherwood 09959K specification
Do not confuse this impeller with the narrower Sherwood 09000K, which has the same 2-7/16-inch diameter and 5/8-inch keyed shaft but is only 7/8 inch wide.
When This Part Needs Replacement
Replace the impeller when:
- Raw-water or exhaust-water flow decreases
- Engine temperature begins rising
- The pump becomes difficult to prime
- Vanes are cracked, hardened or permanently folded
- Blade tips are torn or missing
- The hub or keyway shows wear
- The pump has operated dry
- Annual preventive maintenance is due
Jabsco recommends scheduled preventive replacement, generally at least annually for engine-cooling service or sooner under heavy-duty conditions.
Installation Notes
- Stop the engine and isolate the starting circuit.
- Close the raw-water intake seacock.
- Remove the pump cover and old O-ring or gasket.
- Pull the impeller with an impeller-removal tool or suitable pliers gripping the hub.
- Do not pry against the pump face with a screwdriver.
- Recover missing vane fragments from hoses, coolers and heat exchangers.
- Inspect the housing, cam, cover plate, shaft and drive key.
- Lubricate the new impeller before installation.
- Align the bronze-hub keyway with the shaft key.
- Install the supplied sealing component and reinstall the cover.
- Reopen the seacock and verify strong water flow immediately after startup.
Lubricating the impeller eases installation and protects it during initial pump priming.
Alternate / Cross-Reference Part Numbers
- Jabsco: 18838-0001-P
- Earlier Jabsco reference: 18838-0001
- Land 'N' Sea SKU: 6-188380001P
- Compact format: 188380001P
- Sherwood: 09959K
- Sherwood legacy reference: 9959
- Johnson Pump: 09-701B-1
- Sierra kit: 18-3046
- Sierra replacement impeller: 18-3060
- Related OEM references: 1003062, 3854286
- UPC / GTIN: 671880588195
Compatible & Related Products
- Sherwood 09959K Impeller Kit – OEM Sherwood equivalent for the same G-Series pump families
- Sherwood 762-09959K Impeller Kit – Neoprene w/ Gasket & O-Ring – Updated Sherwood kit with gasket included
Parts Desk Insight
This is the wide Sherwood 9959-size impeller, measuring approximately 62.5 × 32 mm. Its closest look-alike is the Sherwood 09000K, but the 09000K is considerably narrower. Confirming the 1-1/4-inch width is the fastest way to distinguish the two before ordering.
