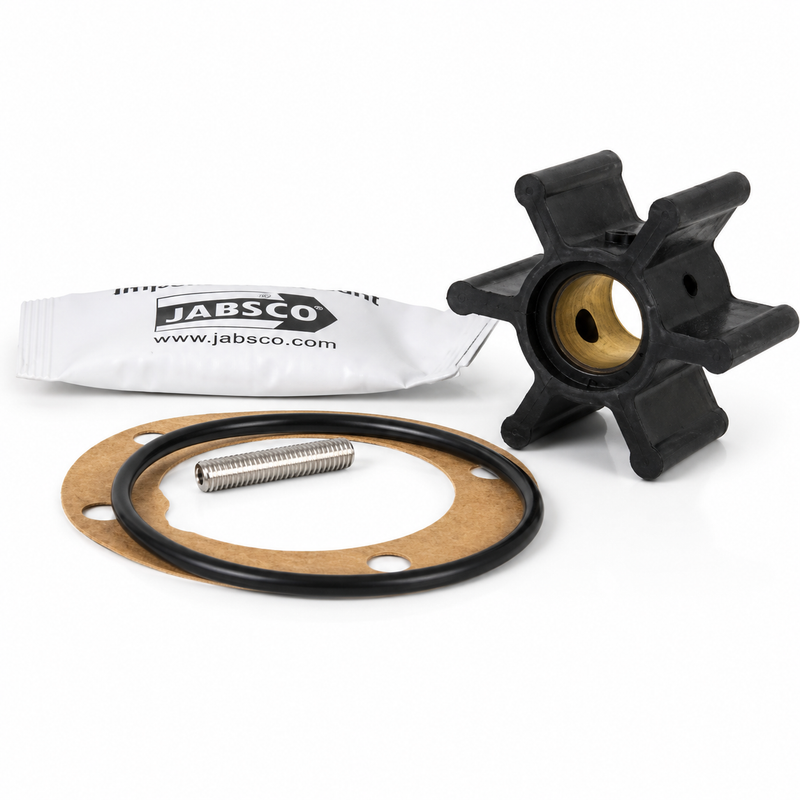

Jabsco 22405-0001-P Profile D Neoprene Impeller Kit

Jabsco Profile D Neoprene Impeller Kit – 22405-0001-P / 6-224050001P

Product Description

The Jabsco 22405-0001-P is a six-blade neoprene flexible impeller kit for compatible marine engine-cooling, bilge, transfer and general-purpose bronze pumps. It uses a brass hub with a slotted pin-drive connection and is intended primarily for fresh water, salt water and raw-water cooling applications where only small amounts of oil or diesel contamination may be present.

Key Features

• Jabsco part number: 22405-0001-P
• Land 'N' Sea SKU: 6-224050001P
• Impeller profile: D
• Six flexible blades
• Neoprene construction
• Brass hub insert
• Slotted shaft with pin drive
• Outside diameter: 1-9/16 in / 40 mm
• Width: 3/4 in / 19 mm
• Shaft diameter: 15/32 in / approximately 12 mm
• Packaged as an impeller service kit with sealing components and installation lubricant
• UPC / GTIN: 671880574747

Pump Compatibility

Documented Jabsco pump applications include:

• Jabsco 29300-2001C
• Jabsco 29300-2201C
• Jabsco 52010-2051
• Other compatible 29300- and 52010-series pumps requiring a 40 × 19 mm Profile D impeller with a 12 mm slotted pin-drive hub

Always verify the complete pump number, as similar Profile D impellers may use different shaft diameters.

Engine Compatibility

Documented engine applications include compatible installations on:

Volvo Penta

• MB10A and MB11
• MB1KHD, MB1KHY and MB2
• MD2 and MD2B
• MD2BHY
• MD5A, MD5B and MD5C
• MD10 and MD10A
• MD11C and MD11D

Generator Applications

• Selected Westerbeke 8–10 kW generator raw-water pumps

Fitment should be confirmed through the installed pump number or the engine’s cooling-system parts diagram.

Fitment Notice

Before ordering, confirm that the original impeller requires:

• Six blades
• Approximately 40 mm outside diameter
• 19 mm width
• Approximately 12 mm shaft diameter
• Slotted pin-drive hub
• Brass insert
• Neoprene construction
• Profile D configuration

Do not confuse this impeller with the Jabsco 4528-0001-P. Both are six-blade Profile D neoprene impellers measuring approximately 40 × 19 mm, but the 4528-0001-P uses a smaller 3/8-inch shaft, while the 22405-0001-P uses a 15/32-inch / 12 mm shaft. The two are not interchangeable.

Compatible & Related Products

• Johnson Pump 09-808B-1 MC97 Impeller – Replaces Jabsco 22405-0001 – direct OEM-equivalent for F35 pump applications
• Jabsco 4528-0001-P Profile D Neoprene Impeller Kit – same Profile D dimensions, smaller 3/8-inch shaft — confirm shaft size before ordering

When This Part Needs Replacement

Replace the impeller when:

• Raw-water or transfer-pump output decreases
• Exhaust-water discharge becomes weak
• Engine temperature starts rising
• The pump becomes difficult to prime
• The blades become cracked, hardened or permanently folded
• Blade tips are torn or missing
• The brass hub becomes loose
• The pump has operated dry
• Annual preventive maintenance is due

Flexible impellers should be inspected regularly and replaced preventively, especially when used in an engine-cooling system.

Installation Notes

• Stop the engine and isolate the starting system.
• Close the raw-water seacock or applicable isolation valve.
• Remove the pump cover and existing gasket or O-ring.
• Pull the old impeller using an impeller puller or suitable pliers gripping the hub.
• Do not pry against the pump body with a screwdriver.
• Recover any missing blade fragments from hoses, coolers and heat exchangers.
• Inspect the cover plate, cam, housing, shaft and drive pin for wear.
• Lubricate the new impeller before installation.
• Align the slot in the brass hub with the pump-shaft drive pin.
• Install the supplied sealing component and refit the cover.
• Reopen the seacock and verify strong water flow immediately after startup.

Never operate a neoprene flexible-impeller pump dry.

Alternate / Superseded Part Numbers

• Current packaged number: 22405-0001-P
• Earlier Jabsco number: 22405-0001
• Alternate packaging reference: 22405-0001B
• Land 'N' Sea SKU: 6-224050001P
• Compact format: 224050001P
• Johnson Pump: 09-808B / 09-808B-1
• Volvo Penta: 833995, 875583-7
• Vetus: IMP00601
• Ancor: J050021
• CEF: 500121
• UPC / GTIN: 671880574747

Parts Desk Insight – Best Use

The 22405-0001-P is the correct service impeller for Volvo Penta MD2/MD5/MD10/MD11-series diesel auxiliaries and Jabsco 29300/52010-series pumps — a common combination in cruising sailboats and small commercial vessels. The defining identifier is the 15/32-inch (12 mm) brass pin-drive hub: this is the larger of the two Profile D impellers in the Jabsco range, and it is frequently confused with the 4528-0001-P, which shares the same 40 × 19 mm outer dimensions but uses a smaller 3/8-inch shaft. Installing the wrong shaft size will result in a loose hub and immediate pump failure. The Johnson Pump 09-808B-1 is the direct OEM-equivalent for F35 pump applications. Always recover all blade fragments from heat exchangers and oil coolers before restarting the engine.
