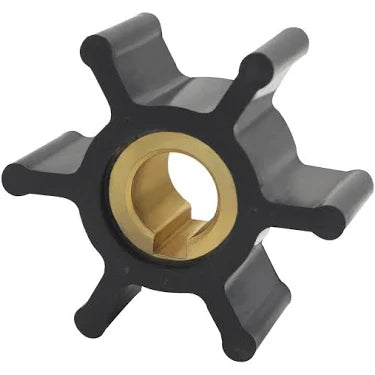

Jabsco 22799-0001-P Profile G Neoprene Impeller Kit
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Jabsco Profile G Neoprene Impeller Kit – 22799-0001-P / 6-227990001P
Product Description
The Jabsco 22799-0001-P is a six-blade neoprene flexible impeller kit for compatible marine engine-cooling, bilge, circulation and general-purpose water pumps. It features a brass hub with a keyed drive and is intended for fresh water, salt water and engine-cooling service where only limited oil or diesel contamination may be present.
Key Features
- Jabsco manufacturer part number: 22799-0001-P
- Land 'N' Sea SKU: 6-227990001P
- Impeller profile: G
- Six flexible blades
- Neoprene construction
- Brass hub insert
- Keyed shaft drive
- Outside diameter: 2 in / 51 mm
- Width: 7/8 in / 22 mm
- Shaft diameter: 1/2 in / 12.7 mm
- Packaged kit includes sealing components and installation lubricant
- UPC / GTIN: 671880575065
Engine and Pump Compatibility
The 22799-0001-P is used in compatible marine raw-water cooling pumps and is cross-referenced to several Yanmar and Kohler applications.
Yanmar References
- 124223-42090
- 124223-42091
- 124223-42092
- 128296-42040
- 128296-42070
- 128620-42200
Kohler References
- 250872
- 252475
- 229955
- 229955KIT
Also associated with compatible Bukh, Westerbeke and other engine-cooling pump installations requiring a 51 × 22 mm, six-blade, 12.7 mm keyed impeller. Confirm the installed pump or original impeller number before ordering.
Fitment Notice
Before ordering, confirm that the original impeller requires:
- Six blades
- 51 mm outside diameter
- 22 mm width
- 12.7 mm keyed shaft
- Brass hub insert
- Profile G
- Neoprene construction
Impellers with similar outside dimensions may use different shaft sizes, drive systems or rubber compounds. The full pump number or original impeller number provides the most dependable fitment confirmation.
When This Part Needs Replacement
Replace the impeller when:
- Engine-cooling water flow becomes weak
- Exhaust-water discharge decreases
- Engine temperature begins rising
- The pump becomes difficult to prime
- The vanes become cracked, hardened or permanently bent
- Blade tips are torn or missing
- The brass hub becomes loose
- The pump has operated dry
- Annual preventive service is due
Jabsco recommends preventive replacement rather than waiting for complete impeller failure, particularly in engine-cooling systems.
Installation Notes
- Stop the engine and isolate the starting system.
- Close the raw-water seacock or applicable isolation valve.
- Remove the pump cover and old sealing component.
- Use a proper impeller puller or suitable pliers to grip the hub.
- Do not pry against the pump housing with a screwdriver.
- Recover all missing vane pieces from hoses, oil coolers and heat exchangers.
- Inspect the cover plate, cam, pump bore, shaft and key.
- Lubricate the new impeller before installation.
- Align the hub keyway with the shaft key.
- Install the supplied gasket or O-ring and refit the cover.
- Reopen the seacock and confirm water flow immediately after startup.
Avoid operating the pump dry; extended dry running can quickly damage a neoprene impeller.
Alternate / Superseded Part Numbers
- Current packaged number: 22799-0001-P
- Earlier Jabsco number: 22799-0001
- Land 'N' Sea SKU: 6-227990001P
- Compact format: 227990001P
- Jabsco impeller type: 020
- Yanmar: 124223-42090, 124223-42091, 124223-42092, 128296-42040, 128296-42070, 128620-42200
- Kohler: 250872, 252475, 229955, 229955KIT
- Johnson Pump: 09-827
- Vetus: IMP00101
- CEF: 500129
- Ancor: J050016
- JMP: 7052-01
- UPC / GTIN: 671880575065
Parts Desk Insight – Best Use
The 22799-0001-P is the correct service impeller for Yanmar 3JH/4JH-series diesel engines and Kohler marine generator raw-water cooling pumps — two high-volume service applications where this part is frequently needed. The critical identifier is the 1/2-inch (12.7 mm) keyed brass hub: Profile G shares the same 51 mm diameter and 22 mm width as several other Jabsco impellers, but the keyed brass hub and 12.7 mm shaft are distinctive. Do not substitute a single-flat or pin-drive impeller of the same diameter — the drive connection will not engage correctly. Neoprene is appropriate for clean raw-water and engine-cooling circuits; if petroleum contamination is possible, verify whether a nitrile compound is specified. Always recover all blade fragments from heat exchangers and oil coolers before restarting the engine.
