Jabsco Ballast King Red Polyurethane Impeller Kit – 23095-0007-P
Product Description

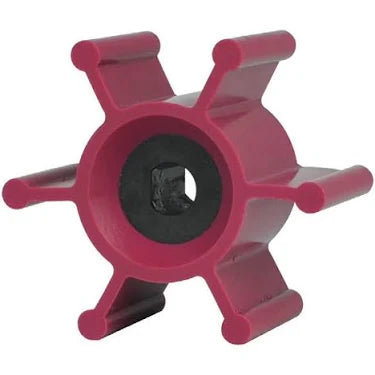

The Jabsco 23095-0007-P is a six-blade red polyurethane replacement impeller for Jabsco Ballast King reversible ballast pumps. Designed for rapid ballast-tank filling and draining, its flexible polyurethane construction provides improved resistance to occasional dry-running conditions compared with standard neoprene impellers. It also helps create the internal seal needed to reduce unwanted water movement when the pump is switched off.
Key Features
- Jabsco manufacturer part number: 23095-0007-P
- Land 'N' Sea SKU: 6-230950007P
- Red polyurethane construction
- Six flexible blades
- Impeller profile: H
- Single-flat drive
- Outside diameter: 2 in / 50.8 mm
- Width: 7/8 in / 22.3 mm
- Shaft diameter: 5/16 in / 7.9 mm
- Designed for reversible ballast-pump operation
- Run-dry-resistant replacement design
- Includes replacement O-ring and impeller lubricant
Pump Compatibility
The 23095-0007-P is designed for Jabsco Ballast King pumps, including documented applications such as:
- Jabsco 22610-series Ballast King pumps
- Jabsco 22610-9007
- Jabsco 22610-2007
- Wakeboard, wakesurf and ski-boat ballast systems using the specified Ballast King pump
Confirm the pump's complete model number before ordering, as Ballast Puppy and Ballast King pumps may use visually similar impellers with different specifications.
Fitment Notice
Before installation, confirm that the original pump requires:
- A six-blade polyurethane impeller
- 2-inch outside diameter
- 7/8-inch width
- 5/16-inch shaft
- Single-flat drive
- Jabsco Ballast King 22610-series compatibility
Do not select a ballast impeller using colour alone. Jabsco ballast-pump impellers can differ in dimensions, compound and pump application even when their appearance is similar. The Jabsco 6303-0007-P green polyurethane impeller is a visually similar but dimensionally different part intended for the smaller Ballast Puppy pump — do not interchange.
Compatible & Related Products
- Jabsco 6303-0007-P Green Polyurethane Impeller – Ballast Puppy / raw-water pump equivalent (smaller pump, different spec)
When This Part Needs Replacement
Replace the impeller when:
- Ballast tanks fill or drain more slowly than normal
- Pump output becomes weak or intermittent
- The pump runs but does not transfer water
- Water leaks into or drains from ballast bags while the pump is off
- The pump has difficulty reversing direction
- The blades are cracked, torn, worn or permanently folded
- The drive hub slips on the motor shaft
- The pump has experienced extended dry operation
A worn impeller can reduce transfer performance and prevent the pump from sealing effectively when it is switched off.
Installation Notes
- Disconnect electrical power to the ballast pump.
- Close any applicable isolation valves.
- Remove the pump end cover and existing sealing O-ring.
- Pull the old impeller straight from the shaft.
- Inspect the pump chamber and cover for scoring or debris.
- Remove any broken blade fragments from the hoses and ballast plumbing.
- Lubricate the new impeller with the supplied lubricant.
- Align the flat inside the impeller hub with the flat on the pump shaft.
- Install the replacement O-ring and refit the cover.
- Test the pump in both fill and drain directions.
- Check the system for leaks and proper ballast-tank holding.
Although this impeller offers improved dry-running resistance, extended operation without water should still be avoided.
Alternate / Related Part Numbers
- Current packaged part number: 23095-0007-P
- Impeller-only reference: 23095-0007
- Bulk or alternate packaging: 23095-0007B
- Related Jabsco references: 23095-0107, 23095-0107-P, 23095-0107B, 23095-0107-J, 23095-0007-24
- Land 'N' Sea SKU: 6-230950007P
- Compact format: 230950007P
- UPC / GTIN: 671880626637
Parts Desk Insight – Best Use
The 23095-0007-P is the correct service impeller for Jabsco Ballast King 22610-series reversible pumps used in wakeboard, wakesurf and ski-boat ballast systems. The red polyurethane compound is specified for this application because it tolerates the brief dry-running that occurs when ballast bags are fully emptied — a condition that would quickly destroy a standard neoprene impeller. It also maintains a tighter internal seal when the pump is off, reducing passive ballast-bag drainage. The most common ordering error is confusing this part with the green 6303-0007-P, which shares the same Profile H dimensions but is intended for the smaller Ballast Puppy pump — confirm the 22610-series pump model number before ordering. Colour alone is not a reliable selector.
