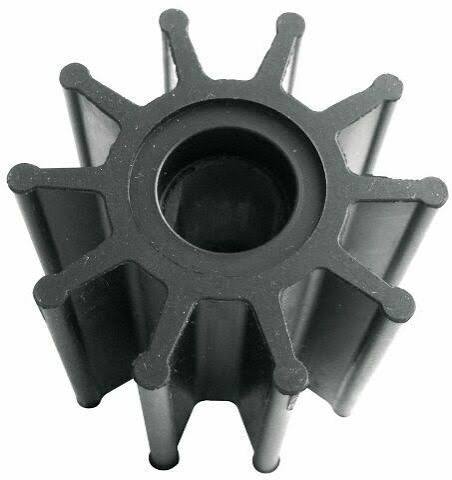

Jabsco 50461-1001-P PCM / Crusader Raw-Water Pump Impeller Kit

Jabsco PCM / Crusader Raw-Water Pump Impeller Kit – 50461-1001-P

Product Description

The Jabsco 50461-1001-P is a large neoprene raw-water pump impeller kit designed for compatible Pleasurecraft Marine and Crusader engine-cooling pumps. It replaces PCM RP061022 and Crusader R061022 in applicable serpentine-belt-driven pump assemblies, restoring the raw-water flow required to cool the engine and exhaust system.

Key Features

• Jabsco part number: 50461-1001-P
• Land 'N' Sea SKU: 6-504611001P
• Neoprene flexible impeller
• Ten flexible blades
• Double-flat shaft drive
• Outside diameter: 2-1/4 in / approximately 57 mm
• Width: 2 in / approximately 50.8 mm
• Shaft size: 5/8 in / approximately 16 mm
• Designed for compatible serpentine-belt-driven PCM and Crusader raw-water pumps
• UPC / GTIN: 671880631631

Engine and Pump Compatibility

Documented applications include compatible PCM and Crusader gasoline engines equipped with the applicable serpentine-belt-driven raw-water pump.

Pleasurecraft Marine – PCM

• PCM 5.0L applications
• PCM 5.7L applications
• PCM 6.0L applications
• PCM 8.1L applications
• Excalibur 330
• EX343
• ZR409

Crusader

• Crusader 5.0L applications
• Crusader 5.7L applications
• Crusader 6.0L applications
• Crusader 8.1L applications

Compatible pump and bearing-housing references include: RA057032, RA057034, RA057035, RA134071.

Application references consistently identify this impeller with later serpentine-drive cooling pumps. It is not intended as a universal replacement for earlier V-belt-driven PCM or Crusader pumps.

Fitment Notice

Before ordering, confirm:

• PCM reference RP061022 or Crusader reference R061022
• Serpentine-belt-driven raw-water pump
• Ten-blade impeller
• 2-1/4-inch diameter
• 2-inch width
• 5/8-inch double-flat shaft drive

PCM and Crusader engines may use different impellers depending on engine year, pump manufacturer and belt configuration. Match the installed pump assembly or original impeller number whenever possible. If your engine uses a V-belt-driven pump, see the PCM Impeller Kit RP061017 – V-Belt Driven instead.

Compatible & Related Products

• PCM / Crusader RP061022 Raw Water Pump Impeller – OEM-equivalent impeller for the same serpentine-drive pump
• PCM Impeller Kit RP061017 – V-Belt Driven – earlier V-belt pump variant; confirm belt configuration before ordering
• Sierra 18-8926 Raw Water Pump Impeller – aftermarket equivalent for Crusader applications
• Crusader Thermostat 143°F – R026002E – cooling-system service item for the same engine family

When This Part Needs Replacement

Replace the impeller when:

• Raw-water or exhaust-water discharge becomes weak
• Engine temperature rises above normal
• The pump loses prime
• Impeller vanes are cracked, hardened or permanently bent
• Blade tips are worn or missing
• The hub slips on the shaft
• The pump has operated without water
• Seasonal or scheduled cooling-system service is due

Reduced flow, cracked blades and missing blade sections are recognised signs of impeller deterioration. Missing fragments should be recovered from downstream hoses, coolers and heat exchangers before the engine is returned to service.

Installation Notes

• Shut down the engine and disconnect the starting circuit.
• Close the raw-water intake seacock.
• Relieve tension from the serpentine belt as required for pump access.
• Remove the pump cover and existing sealing O-rings.
• Pull the old impeller straight from the double-flat shaft.
• Inspect the housing, cover and shaft for scoring or wear.
• Search downstream plumbing for broken impeller pieces.
• Lubricate the new impeller with an impeller-safe lubricant.
• Align both flats in the hub with the pump shaft.
• Replace the housing and bolt O-rings supplied for the pump assembly.
• Reassemble the pump, reopen the seacock and confirm strong exhaust-water flow immediately after startup.

Do not operate the raw-water pump dry.

Alternate / Superseded Part Numbers

• Jabsco: 50461-1001-P
• Jabsco impeller reference: 50461-1001
• Land 'N' Sea SKU: 6-504611001P
• Compact format: 504611001P
• PCM: RP061022
• Crusader: R061022
• Sierra: 18-8926
• Mallory: 9-45718
• CEF: 500157
• UPC / GTIN: 671880631631

Parts Desk Insight – Best Use

The 50461-1001-P is the correct Jabsco service impeller for PCM and Crusader serpentine-belt-driven raw-water pumps — the standard cooling-pump configuration on most late-model PCM and Crusader inboard and inboard/outboard engines used in wakeboard, ski and performance boats. The 2-inch width and 5/8-inch double-flat drive make this one of the largest and most distinctive impellers in the Jabsco range — it is not interchangeable with any keyed or pin-drive impeller of similar diameter. The single most common ordering error is selecting this part for an earlier V-belt-driven pump: if the engine uses a V-belt pump, the correct kit is the PCM RP061017. The OEM RP061022 and Sierra 18-8926 are direct aftermarket equivalents. Always recover all blade fragments from heat exchangers and exhaust manifolds before restarting — fragment ingestion in a high-output performance engine can cause rapid secondary damage.
