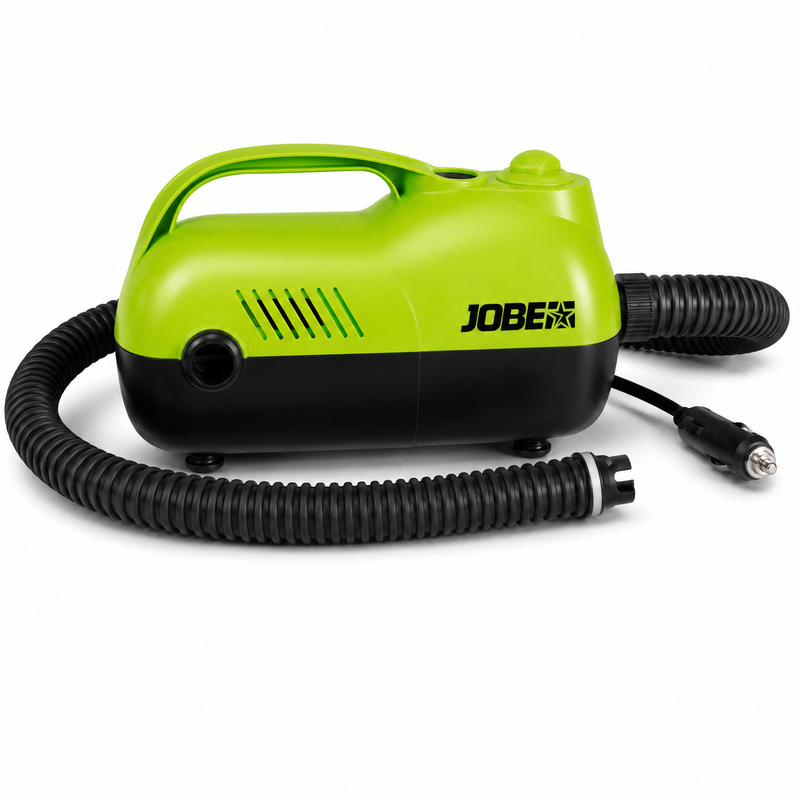

Jobe SUP Pump 12V – 410020001PCS

Jobe SUP Pump 12V – 410020001PCS

Product Description

The Jobe 410020001PCS is a 12-volt electric pump designed for inflating stand-up paddleboards, inflatable kayaks and other high-pressure inflatable watercraft. Its two-stage inflation system moves quickly from low-pressure high-volume fill to high-pressure finishing, reaching up to 20 PSI without manual effort. The pump connects to a vehicle or boat battery via alligator clips or to a 12-volt accessory socket via the included cigarette lighter connector, making it practical for beach, dock and on-water use.

Key Features

• Genuine Jobe electric SUP pump
• Manufacturer part number 410020001PCS
• 12-volt DC operation
• Fast two-stage inflation: low-to-high pressure sequence
• Maximum inflation pressure: 20 PSI
• Includes car battery alligator clips cable
• Includes cigarette lighter connector
• 15-amp fuse required (not included – verify fuse rating before use)
• Suitable for inflatable SUPs, kayaks and similar watercraft

Application Compatibility

The 410020001PCS is intended for inflating compatible Jobe and third-party inflatable watercraft, including:

• Inflatable stand-up paddleboards (iSUP)
• Inflatable kayaks
• Inflatable tenders and dinghies
• Other high-pressure inflatable watercraft requiring up to 20 PSI

Confirm the maximum recommended inflation pressure for the specific board or craft before use. Do not exceed the manufacturer’s stated maximum PSI for the inflatable being filled.

Technical Specifications

• Manufacturer: Jobe Sports
• Part number: 410020001PCS
• Operating voltage: 12V DC
• Maximum pressure: 20 PSI
• Fuse requirement: 15 amps
• Dimensions: 11.6 × 5.3 × 6.3 inches (295 × 135 × 160 mm)
• Weight: 1,941 g / 4.3 lb
• Power connections: Alligator clips and cigarette lighter connector

Fitment Notice

This pump requires a 12-volt DC power source capable of supplying at least 15 amps. Verify that the vehicle or boat circuit used can supply adequate current and that the correct 15-amp fuse is installed before operating the pump. Do not use with 24-volt systems.

Confirm that the pump’s valve adaptor is compatible with the inflation valve on the specific board or craft being inflated. Jobe inflatable products typically use a Halkey-Roberts or similar push-lock valve.

Operating Notes

• Connect the pump to the power source before connecting to the inflation valve
• Allow the pump to complete the low-pressure stage before the high-pressure stage engages automatically
• Monitor the pressure gauge and stop inflation at or below the board manufacturer’s recommended PSI
• Disconnect from the inflation valve before disconnecting from the power source
• Allow the pump to cool between extended inflation sessions

When This Product Needs Replacement

Inspect or replace the pump if:

• It fails to reach the rated 20 PSI maximum
• The motor runs but produces no airflow
• The power cable or connectors are damaged or corroded
• The fuse blows repeatedly during normal use
• The pump housing is cracked or the valve connector is damaged
• The unit becomes excessively hot during normal operation

Alternate Part Numbers

• Jobe part number: 410020001PCS
• Distributor SKU: 673-410020001PCS
• Product name: Jobe SUP Pump 12V

Related Products

• Jobe 410019003 12V Air Pump – Alternative Jobe 12V electric pump
• Jobe 410017201 Turbo 2.5 PSI Air Pump & Hose – Manual pump option for lower-pressure applications
• Jobe Croft Inflatable Kayak Package – Compatible inflatable watercraft
• Jobe Gama Inflatable Kayak Package – Compatible inflatable watercraft

Parts Desk Insight

The two-stage design makes this pump significantly faster than a single-stage unit for high-pressure SUP inflation – the low-pressure stage fills volume quickly and the high-pressure stage finishes to target PSI without overworking the motor. Keep a spare 15-amp fuse on hand and always verify the circuit capacity of the power source before connecting.
