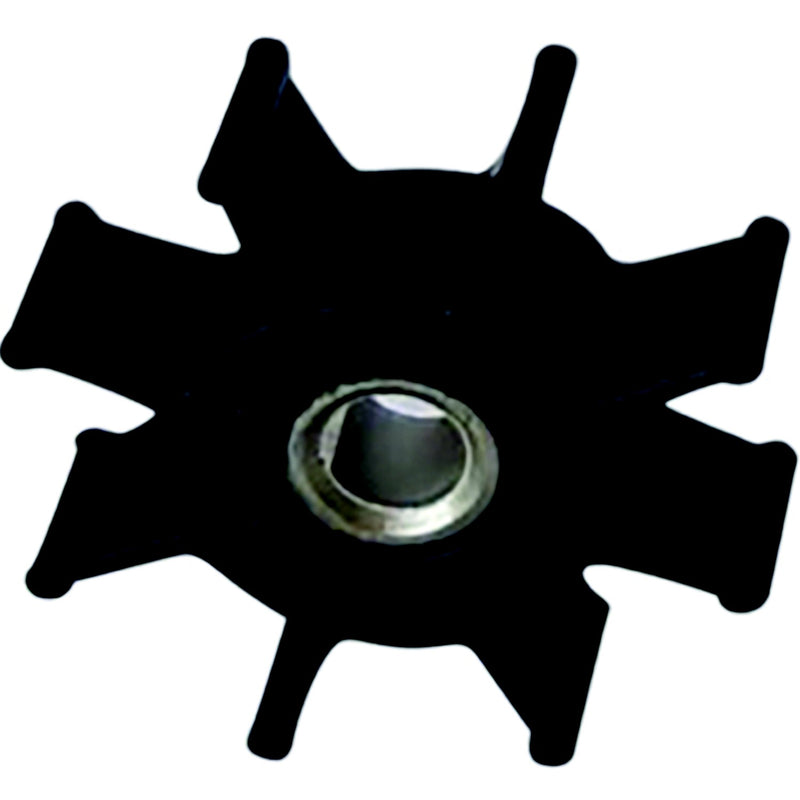

Johnson Pump 09843S9 F3B Impeller Kit, Nitrile, 1-7/8"
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
The Johnson Pump 09-843S-9 is an oil-resistant nitrile impeller service kit for compatible Johnson Pump F3 and F3B flexible impeller pumps. It is particularly suited to oil-transfer and fluid-transfer applications where a standard water-service impeller may not provide suitable resistance to petroleum-based fluids. The impeller uses an eight-blade design with a single-flat shaft connection.
Key Features
- Johnson Pump part number: 09-843S-9
- Also listed as 09843S9
- Designed for compatible F3 and F3B pumps
- Oil-resistant nitrile rubber construction
- Eight flexible impeller blades
- Single-flat shaft connection
- Outside diameter: 1.78 inches / approximately 45.2 mm
- Width: 0.50 inch / approximately 12.8 mm
- Shaft diameter: 0.31 inch / approximately 8 mm
- UPC/EAN: 7330717011055
Kit Contents
The service kit includes:
- Nitrile flexible impeller
- Cover gasket
- O-rings
- Glycerine-based installation lubricant
- Pump cover listed in current kit descriptions
Pump Compatibility
Confirmed applications include:
- Johnson Pump F3 flexible impeller pumps
- Johnson Pump F3B-19 pumps
- Johnson Pump pump number 10-24760
- Johnson Pump pump number 10-24516
- Johnson Pump F3B oil-change kit or bucket assembly 65F3B
The F3B-19 is used as a reversible oil-transfer pump, and 09-843S-9 is its replaceable nitrile impeller.
Fitment Notice
Confirm the original pump model and impeller dimensions before ordering. This kit requires an F3/F3B pump using:
- Approximately 1.78-inch outside diameter
- Approximately 0.50-inch impeller width
- Approximately 0.31-inch shaft diameter
- Single-flat shaft connection
- Eight-blade nitrile impeller
Although the product is sometimes catalogued as a 1-7/8-inch impeller, the published technical diameter is approximately 1.78 inches or 45.2 mm. Match the pump number and shaft configuration rather than relying only on the rounded catalogue size.
When This Part Needs Replacement
Replace the impeller when:
- Pump output becomes weak or inconsistent
- The pump no longer primes reliably
- Fluid transfer takes noticeably longer
- The blades are cracked, torn, hardened or permanently bent
- The hub or flat-drive connection shows wear
- Pieces are missing from the impeller
- The pump has operated dry
- The pump has ingested dirt or abrasive debris
- The scheduled preventive-maintenance interval has been reached
A worn or damaged flexible impeller can reduce flow and may lead to pump or system failure.
Installation Notes
Before installation:
- Disconnect electrical power to the pump
- Drain or isolate the fluid-transfer system
- Remove the pump cover carefully
- Note the direction of the existing impeller blades
- Remove all damaged impeller fragments
- Inspect the cover, cam, housing and shaft for wear
- Verify that the shaft flat and impeller hub match
- Install the supplied gasket and O-rings
- Apply the supplied glycerine lubricant to the new impeller
- Rotate the shaft while inserting the impeller
- Reassemble the pump and check for leaks
- Confirm proper flow in both directions when servicing a reversible pump
Do not operate the flexible impeller pump dry.
Alternate / Cross-Reference Part Numbers
- Johnson Pump: 09-843S-9
- Compact format: 09843S9
- Distributor SKU: 189-09843S9
- Distributor reference: 189-09843S9F1
- UPC/EAN: 7330717011055
Parts Desk Insight
This is the nitrile F3B impeller intended for oil-transfer service. The critical identifiers are the eight-blade design, single-flat 8 mm shaft connection and approximately 45.2 mm diameter. It should not be replaced with a similar-looking water-service impeller unless the rubber compound and pump application are confirmed.
