Johnson Pump F4B Impeller Kit 09-1026B-1
Part Number: 09-1026B-1 (also shown as 091026B1) | UPC: 7330717008758
The Johnson Pump 09-1026B-1 is a genuine F4 / F4B flexible impeller service kit for marine engine raw-water cooling pumps. It uses Johnson's MC97 / EPDM cooling-water compound in a 6-blade, pin-drive configuration engineered to deliver dependable raw-water flow through compatible F4-series pumps.
Impeller Specifications
- Pump family: Johnson Pump F4 / F4B
- Material: MC97 / EPDM cooling-water compound
- Number of blades: 6
- Drive type: Pin drive
- Outside diameter: 2.00 in. / 50.8 mm
- Width: 0.87 in. / 22 mm
- Hub / bore diameter: 0.50 in. / 12.7 mm

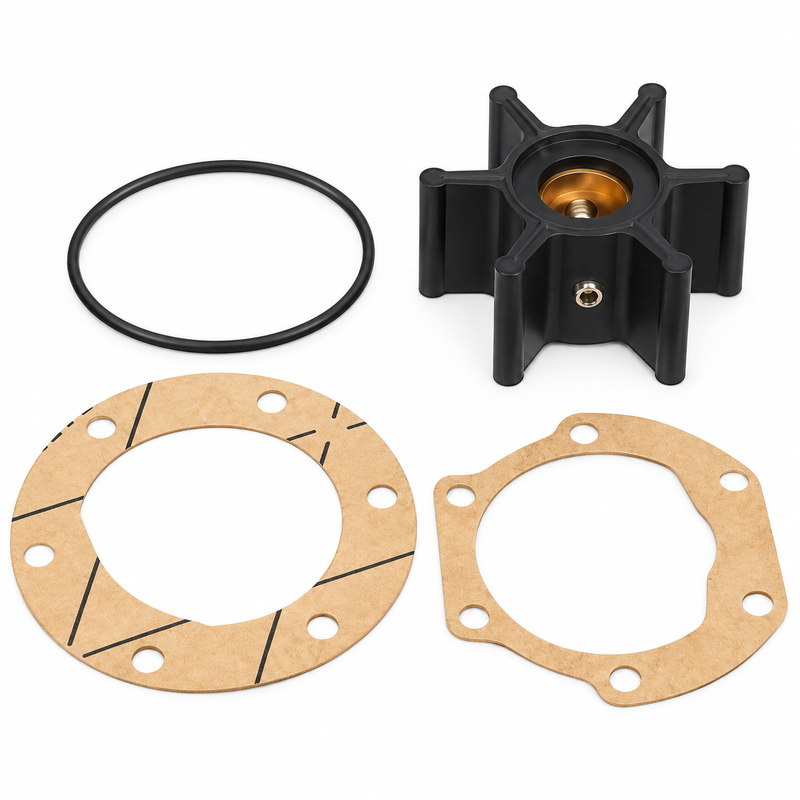

Kit Contents
- 09-1026B-1 F4B flexible impeller
- 01-42391 gasket
- 01-45284 pump gasket (F4B-9 applications)
- Impeller installation lubricant
Compatible Pump Models
- Johnson Pump F4
- Johnson Pump F4B
- Johnson Pump F4B-4
- Johnson Pump F4B-9
- Johnson Pump F4B-903
- Johnson Pump F4B/6-M
Compatible Applications
Cross-reference catalogs associate this impeller family with marine cooling systems from:
- Volvo Penta
- Perkins
- Westerbeke
- Yanmar
- Bukh
- Farymann
- Lombardini
- VM Motori
Always confirm fitment by matching the existing pump model and impeller number rather than engine brand alone.
Fitment Notice
Before ordering, confirm:
- Pump model and F4 / F4B designation
- Existing impeller number
- Pin-drive hub configuration
- Outside diameter: 2.00 in. / 50.8 mm
- Width: 0.87 in. / 22 mm
- Bore: 0.50 in. / 12.7 mm
Important: Johnson offers several F4 impellers with the same 2.00 in. / 50.8 mm outside diameter but different hub bores and drive styles. The Johnson 09-808B-1 uses a 0.47 in. / 12 mm bore, while 09-1026B-1 uses 0.50 in. / 12.7 mm. Matching the full impeller number and hub configuration is essential to ensure correct fit and pump performance.
OEM & Cross-Reference Part Numbers
- Johnson Pump: 09-1026B-1
- Also shown as: 091026B1
- Jabsco: 673-0001
- Perkins: 24880194
- Volvo Penta: 804696 / 875808 / 897055 / 3593659
- Westerbeke: 21218
When to Replace the Impeller
- Cooling-water flow becomes weak or intermittent
- Vanes are cracked, torn, stiff, or permanently deformed
- Missing blade material is found — inspect all downstream cooling passages for fragments before reassembly
- Pump has been run dry
- Engine has experienced overheating
- Annual raw-water pump maintenance is due
Installation Notes
- Shut off the raw-water supply before beginning work
- Remove the pump cover and extract the old impeller
- Inspect the old impeller for missing vane pieces — locate all fragments in the cooling circuit before closing up
- Inspect the cam, cover plate, and pump chamber for scoring or wear
- Confirm the pin-drive hub matches the pump shaft before installing the new impeller
- Lubricate the new impeller with the supplied or approved water-safe impeller lubricant
- Install the appropriate kit gasket for your pump model
- Rotate the pump shaft in its normal operating direction while seating the impeller
- Verify strong cooling-water flow immediately after startup
Related Parts
- Johnson Pump 09-1027B-10 Impeller Kit (F5)
- Johnson Pump 09-812B-1 Impeller Kit (F6)
- Johnson Pump 09-1028BT-1 Impeller Kit (F7)
- Johnson Pump 09-808B-1 Impeller Kit
- Johnson Pump 09-806B-1 Impeller Kit
- Johnson Pump 09-801B Impeller
- Johnson Pump 09-45825 Service Kit for F6B-9
- Johnson Pump 09-45587 Service Kit
- Seachoice 17781 Impeller Puller
- Volvo Penta 3593573 Impeller Kit – Raw Water Pump
- Jabsco Neoprene Impeller Kit 920-0001-P
- Jabsco Neoprene Impeller Kit 11979-0001-P
Parts Desk Insights
The Johnson 09-1026B-1 is the standard service impeller for F4 and F4B raw-water pumps used on a wide range of European and Asian diesel engines — Volvo Penta, Westerbeke, Perkins, Yanmar, Bukh, and others. It is a common annual service item on sailboats and trawlers where these engines are frequently found. The Volvo Penta cross-references (804696, 875808, 897055, 3593659) make it easy to confirm fitment on Volvo-powered vessels without having a Johnson pump number on hand.
The most common ordering mistake is selecting by outside diameter alone. Several Johnson F4 impellers share the 2.00 in. / 50.8 mm diameter but have different bore sizes and drive styles — the bore difference between 09-1026B-1 (0.50 in.) and 09-808B-1 (0.47 in.) is small but critical for a proper shaft fit. As with all impeller services, check the old impeller carefully for missing vane pieces before closing up the pump — fragments in the cooling circuit are a frequent cause of continued overheating after an otherwise successful service.
