Lenco 15106102 12" x 12" Edge Mount Electric Trim Tab Kit with 124 Switch
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.

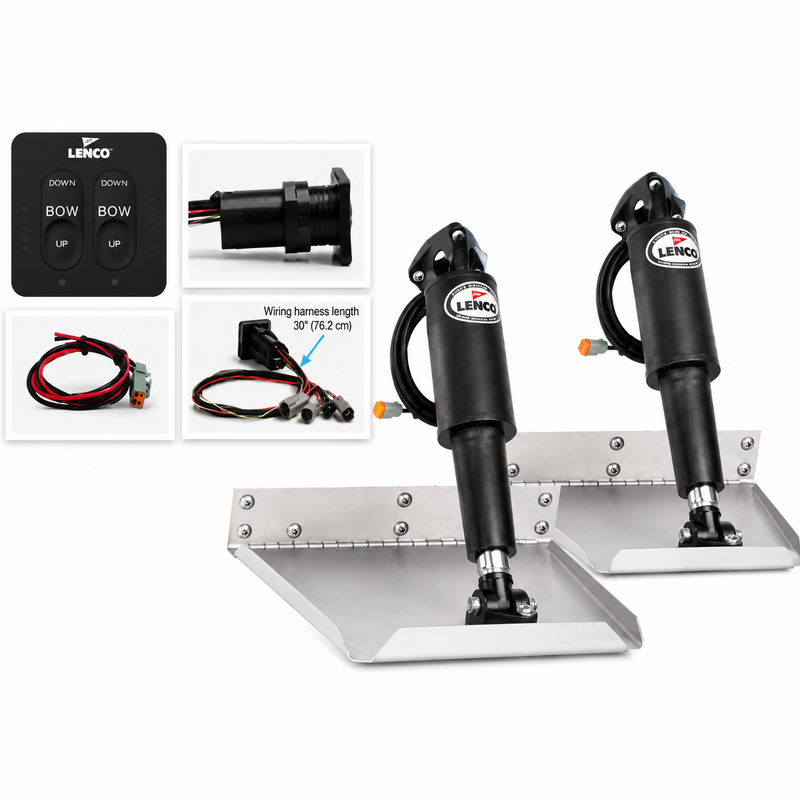

12" x 12" Edge Mount Electric Trim Tab Kit with 124 Switch
The Lenco 15106102 is a complete 12" x 12" edge mount electric trim tab system designed for boats with limited transom height where a standard mount setup won't fit. Unlike conventional trim tabs where the actuator mounts to the transom above the blade, edge mount tabs position the actuator at the trailing edge of the blade itself — reducing the required transom height to just 11" and keeping the installation compact and low-profile. The blades feature 1" turned-up edges and an 85° inside taper for added strength and water flow efficiency, and the entire system uses waterproof Deutsch plug-and-play connections throughout.
What's Included
- Two 12-volt electric actuators with 6-foot leads and Deutsch connectors
- Two 12" x 12" trim tab blades — 12-gauge 304 stainless steel with 1" turned-up edges and 85° inside taper
- Two 20-foot actuator extension harnesses with Deutsch connectors
- All stainless steel mounting hardware
- Lenco 124 switch kit
Specifications
- Tab size: 12" x 12"
- Blade material: 12-gauge 304 stainless steel
- Blade edge: 1" turned-up with 85° inside taper
- Hinge height: 2"
- Minimum transom height: 11"
- Voltage: 12V DC
- Connectors: Waterproof Deutsch plug-and-play
- Actuators: Fully submersible
Parts Desk Insights
Best Use Case: Edge mount is the go-to solution for low-freeboard boats — particularly bass boats, flats boats, bay boats, and jon boats — where the transom height is too short for a standard actuator mount. If a customer's transom measures between 11" and 13", this kit is often the only viable electric trim tab option. The 12" x 12" blade provides strong lift for boats in the 20–26 ft range. For boats with adequate transom height (14"+) that prefer a conventional setup, see the Lenco 15103104 12" x 12" Standard Trim Tab Kit with Double Rocker Switch or the Lenco 15105102 12" x 12" Standard Trim Tab Kit with Tactile Switch. For bracket repairs on an existing Lenco actuator, see the Lenco 15099001 Actuator Mounting Bracket Replacement Kit.
