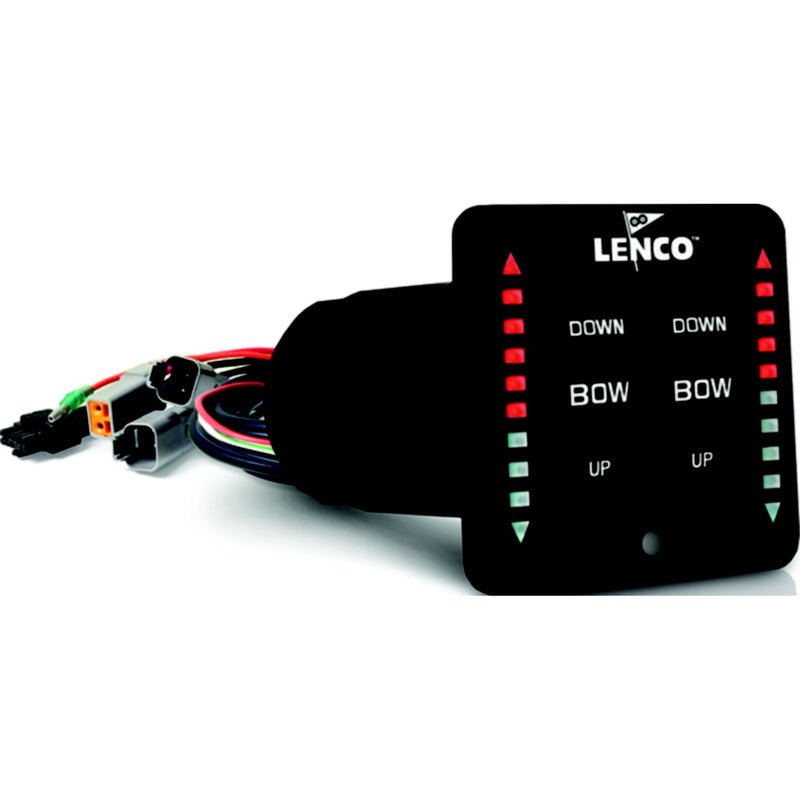

Lenco 15170-001 – All-In-One Integrated Trim Tab Switch Kit, Single Actuator
The Lenco 15170-001 is a self-contained helm control for single-actuator electric trim tab systems. The control electronics are built directly into the keypad bezel — no separate control box required — giving you trim tab control, LED position indication, and automatic tab retraction in a single, clean helm installation.
Key Features
- Compatible with 12V and 24V systems
- All-in-one integrated design — control electronics built into the keypad bezel
- Built-in automatic tab retractor
- Two high-intensity LED displays show exact trim tab position at all times
- Automatic photo eye adjusts LED brightness for changing light conditions
- Backlit keypad for nighttime operation
- Self-Check feature
- Waterproof Plug & Play Deutsch connectors
- Wiring harness: 30" (76.2 cm) from rear of switch bezel
- Power pigtail: 36" (91.4 cm)
- Mounting cut-out: 2-1/16"
- Overall keypad dimensions: 2.75" x 2.75"
- Required rear mounting clearance: approximately 4.08"
- Part number: 15170-001
Compatible Applications
Designed specifically for Lenco single-actuator electric trim tab systems, where one actuator operates each tab. The 15170-001 provides both actuator control and tab-position feedback through the integrated LED display.
For dual-actuator systems, see the Lenco 15171-001 LED Indicator Integrated Switch Kit – Dual Actuator.
Fitment Notice
Confirm your trim tab installation uses a single-actuator configuration before ordering. Replacement keypads and control boxes from 2016 and earlier Lenco switch systems are not compatible with this kit.
The 15170-001 is the all-in-one integrated version. It is not interchangeable with the Lenco 15270-001 Two-Piece LED Switch Kit, which houses the control electronics in a separately mounted control box.
When to Replace
- Existing trim tab switch has failed
- LED tab-position indication is no longer accurate
- Automatic retractor has stopped functioning
- Keypad or wiring is damaged
- Upgrading an older compatible system to an integrated LED control
Installation Notes
The 15170-001 uses a self-contained helm-mounted keypad with a 30" wiring harness and 36" power pigtail. Installation requires a 2-1/16" mounting opening and approximately 4.08" of clearance behind the mounting surface. Verify system voltage, actuator configuration, electrical connections, and available dash depth before installation.
Related Part Numbers
- 15170-001 – This item: LED All-In-One Switch Kit, Single Actuator
- 15171-001 – LED Integrated Switch Kit, Dual Actuator
- 15270-001 – LED Two-Piece Switch Kit, Single Actuator
- Lenco Flybridge Kit for 2-Piece LED Integrated Kits – Adds a second helm station to 15170-001 systems
Parts Desk Insights
The most common ordering mistake is single actuator vs. dual actuator. The 15170-001 is the single-actuator all-in-one control. Also note that the all-in-one design requires more depth behind the helm than the two-piece 15270-001 — check both the actuator configuration and available dash clearance before ordering.
