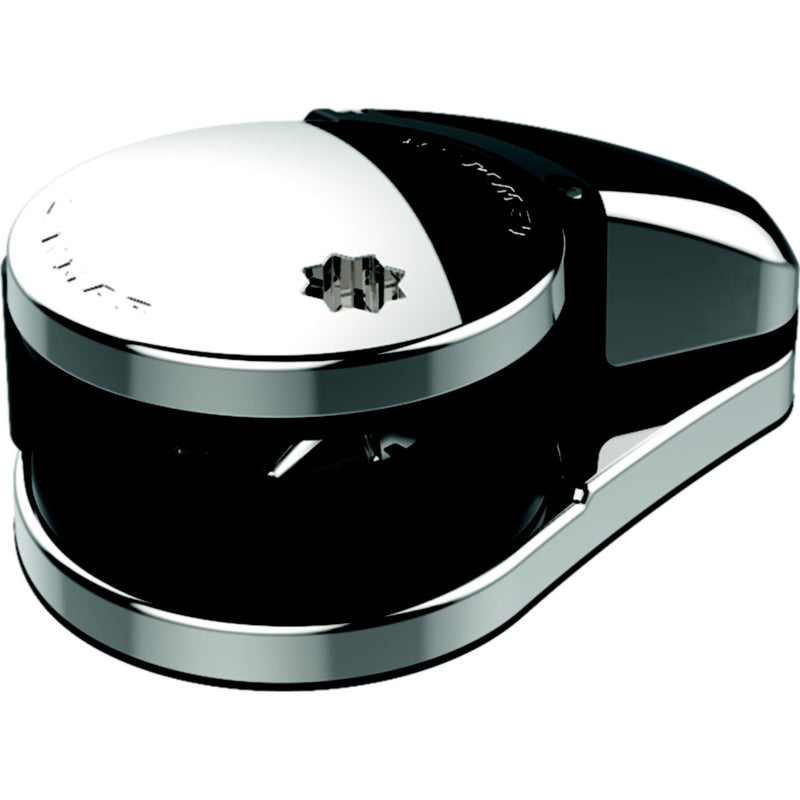

Lewmar VX2 Vertical Windlass Extended Kit – 12V, 8mm/5/16" Gypsy

Lewmar VX2 Vertical Windlass Extended Kit – 12V, 8mm/5/16" Gypsy

The Lewmar VX2 is a vertical windlass built for the 30–48 ft boat market, delivering up to 850 kg (1,874 lb) of maximum pull in a package that's lighter and more compact than previous-generation vertical windlasses. The vertical design keeps the motor and gearbox below deck, leaving a clean, low-profile capstan on the bow — a popular choice for sailors and powerboaters who want a tidy foredeck without sacrificing anchoring performance. The worm wheel gearbox is robust and proven, and the IP67-rated cover protects the deck unit from full submersion. This extended kit includes everything needed for a complete installation.

Key Features

• Vertical windlass design — motor and gearbox mount below deck for a clean, low-profile bow
• 850 kg (1,874 lb) maximum pull capacity
• Gypsy sized for 8mm / 5/16" chain rode
• Robust worm wheel gearbox for reliable, controlled retrieval under load
• IP67 waterproof rated deck cover — submersion-proof as standard
• Stainless steel and composite construction for long-term durability
• Same deck footprint as Lewmar V2/V3 models — direct upgrade path for existing installations
• Extended kit includes: deck unit, motor/gearbox, solenoid, rocker switch, circuit breaker, and gypsy

Compatible Applications

• Powerboats and sailboats in the 30–48 ft range requiring a vertical windlass
• Vessels running 8mm or 5/16" chain rode anchor systems
• Boats upgrading from Lewmar V2 or V3 windlasses — same deck footprint, no re-cutting required
• Installations where below-deck motor placement is preferred for a clean foredeck
• 12V DC electrical systems

Compare Models

• Lewmar V4 Vertical Windlass with Gypsy, 12V, 3/8" Chain — heavier-duty vertical windlass for larger vessels or 3/8" chain rode
• Lewmar H2 Horizontal Windlass with Gypsy – 12V, 5/16" Chain — horizontal alternative for similar vessel sizes
• Lewmar H3 Horizontal Windlass with Gypsy – 12V, 5/16" Chain — horizontal step-up with higher pull capacity

Pair It With

• Lewmar Anchor Rode – 9/16" x 200' Nylon with 5/16" x 20' Chain — compatible chain/rope rode for this windlass

Parts Desk Insights

Best Use Case: The VX2 is the right call for customers in the 30–48 ft range who want a vertical windlass with a clean below-deck motor installation. The vertical form factor is especially popular with sailboat owners who prioritize a tidy foredeck. The V2/V3 footprint compatibility is a strong selling point for customers upgrading an existing Lewmar installation — no deck modification required.

Vertical vs. Horizontal: Customers sometimes ask whether to go vertical or horizontal. Vertical windlasses keep the motor below deck (cleaner look, better weight distribution) but require a deck penetration for the shaft. Horizontal windlasses are easier to install on boats without an existing anchor locker setup. Use the customer's existing setup and deck configuration as the primary decision factor.

Pull Capacity: At 850 kg maximum pull, the VX2 is well-suited for mid-size vessels with standard anchor tackle. For customers with heavier anchors or larger boats at the top of the 30–48 ft range, consider the Lewmar V4 as a step-up option.

Chain Compatibility: Sized for 8mm / 5/16" chain. Verify the customer's existing rode spec before recommending — mismatched chain size is a common return reason on windlass orders.

Kit Contents: The extended kit is complete out of the box. Confirm the customer doesn't need to source additional components — this is a common point-of-sale question.
