Mercury Quicksilver — .770 Propeller Tab Washer — 8M0204724
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.

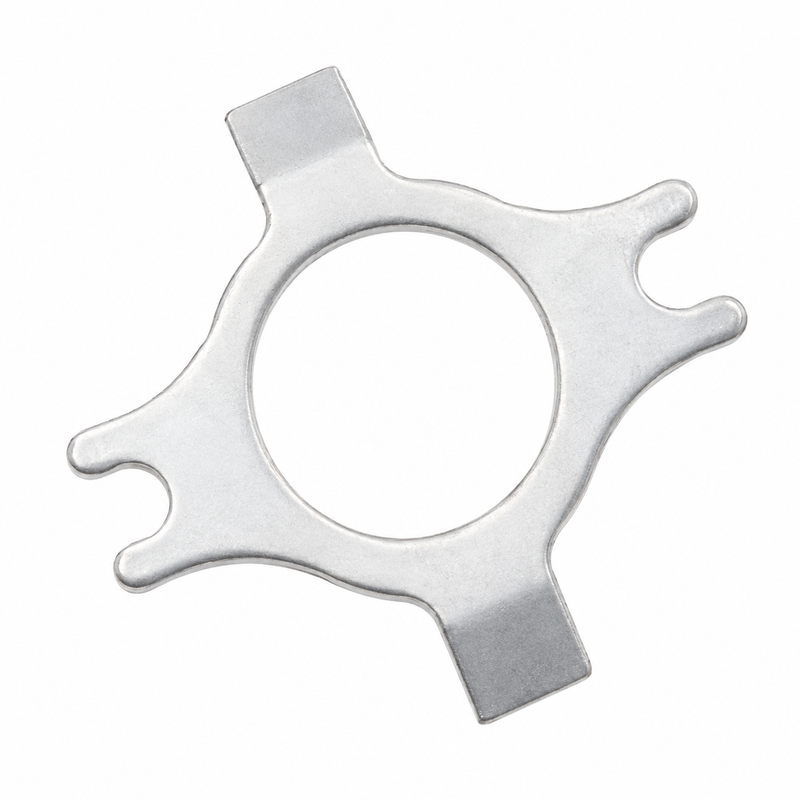

Mercury Quicksilver .770 Propeller Tab Washer 8M0204724
Mercury Quicksilver 8M0204724 is a genuine OEM .770 in. propeller tab washer used with the 2-pin Flo-Torq drive sleeve adapter in applicable Mercury Marine propeller assemblies. It forms part of the propeller-retaining hardware at the propeller nut and helps mechanically secure the nut after correct installation.
Compatible Applications
- MerCruiser Alpha One Gen II propeller assemblies using the specified 2-pin Flo-Torq adapter
- MerCruiser Bravo I propeller assemblies using the specified 2-pin Flo-Torq adapter
- Mercury and Mariner outboard applications whose propeller-hardware diagram specifies 8M0204724 or superseded 8M0042130
Fitment notice: Propeller hardware varies by drive, gearcase, propeller, hub system, and drive-sleeve adapter. Confirm the exact propeller or gear-housing diagram before ordering.
Part Details
- Current part number: 8M0204724
- Mercury description: TAB WASHER-.770
- Brand: Mercury Quicksilver
- Product type: Propeller tab washer
- Nominal size: 0.770 in. or 19.56 mm
- Adapter system: Applicable 2-pin Flo-Torq drive sleeve adapter
- Quantity: One washer per applicable assembly
- Supersedes: 8M0042130
- GTIN: 678633186400
- Approximate weight: 0.02 lb or 9 g
- Condition: New
Key Features
- Genuine OEM propeller-retaining component
- Designed for the specified 2-pin Flo-Torq hardware arrangement
- Used with the propeller nut retaining hardware
- Current replacement for Mercury 8M0042130
When to Replace This Washer
Replace the tab washer if a locking tab is cracked, broken, missing, repeatedly bent and weakened, or if the washer is distorted, corroded, or mechanically damaged. Do not rely on damaged locking tabs to retain the propeller nut assembly.
Installation Notes
Install 8M0204724 in the correct orientation with the corresponding Flo-Torq drive sleeve adapter and propeller nut hardware. While the propeller is removed, inspect the forward thrust washer, drive sleeve, aft adapter, propeller nut, hub components, and propeller-shaft splines. Follow the specified propeller-nut tightening procedure for the exact drive or outboard.
Related Products
- Mercury Quicksilver Propeller Nut Kit 52707Q1
- Mercury Quicksilver Tab Washer 816629Q — a different washer configuration for identification comparison, not an automatic substitute
Technical FAQ
Can this washer be selected by its .770 size alone?
No. The specific Flo-Torq drive-sleeve and hub arrangement is the more important fitment detail.
Is 816629Q interchangeable with 8M0204724?
Not automatically. It is a different Mercury tab-washer configuration. Confirm the exact hardware diagram.
What earlier part does 8M0204724 replace?
It supersedes Mercury part number 8M0042130.
Parts Desk Insights
Best use case: Replacing the specified locking washer during propeller or hub service when the diagram calls for 8M0204724 or superseded 8M0042130.
Most common mistake: Matching by appearance or outside diameter while overlooking the drive-sleeve adapter and hub system.
Fitment guidance: Match the washer to the exact propeller-hardware diagram, gearcase, hub components, and 2-pin Flo-Torq adapter before installation.
