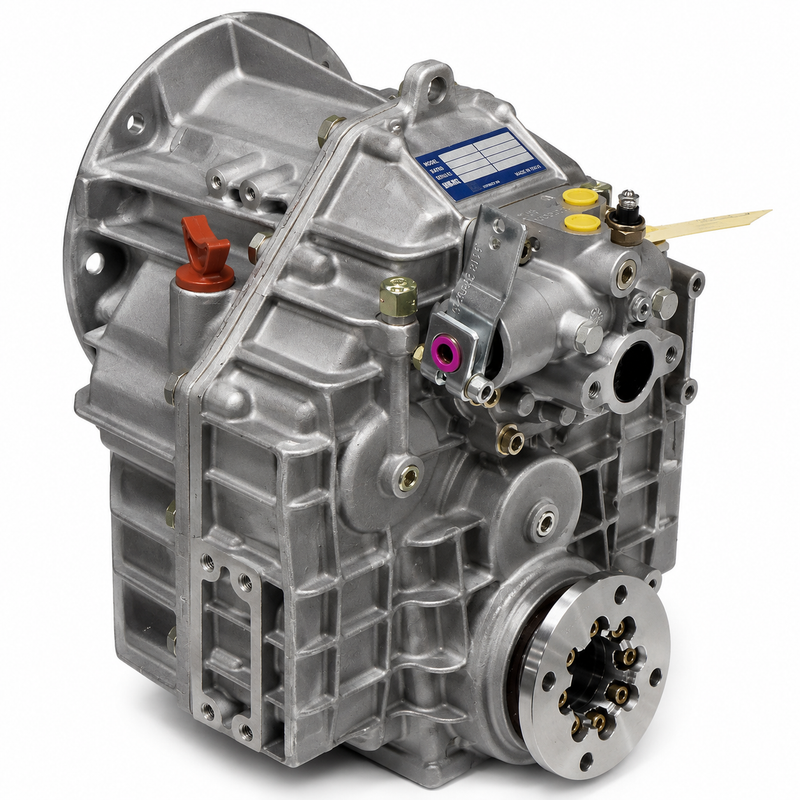

ZF 63IV V-Drive Marine Transmission 2.0:1 – Part 3312003014

ZF 63IV V-Drive Marine Transmission – 2.0:1 Ratio

The ZF 63IV is a hydraulic V-drive marine transmission designed for inboard ski boats, wake boats, towboats, and sport cruisers where the engine sits level and the drivetrain routes power downward and aft through a built-in output angle. This unit carries ZF part number 3312003014 and is historically cross-referenced with the Hurth HSW630V1.

The V-drive configuration allows compact engine-bay layouts without sacrificing drivetrain efficiency — a common choice in performance towboats and wake sport vessels where interior space and weight distribution are priorities.

Part Information

• Part Number: 3312003014
• Brand: ZF Marine
• Model: ZF 63IV
• Cross-Reference: Hurth HSW630V1
• Gear Ratio (Ahead): 2.000:1 (may also appear as 1.992:1 ahead / 2.033:1 astern in some documentation)
• Output Angle: 12° V-drive
• Shift Actuation: Mechanical
• Housing: Seawater-resistant aluminum alloy
• Approximate Weight: 35 kg (77 lbs)

Supersession & Replacement

• This Part Number: 3312003014 (ZF 63IV / Hurth HSW630V1)
• Current Replacement Reference: ZF 68IV – ZF68IV Marine Transmission 1.98:1 Ratio (Part 3312003209) — verify ratio, mounting footprint, and output flange compatibility before substituting

Compatible Applications

• Inboard ski boats and wake boats with V-drive layouts
• Performance towboats requiring a 2.0:1 reduction and 12° output angle
• Sport cruisers with compact engine-bay installations
• Any inboard application originally specced for the ZF 63IV or Hurth HSW630V1 with mechanical shift actuation

System & Diagram Position

This transmission mounts directly to the engine bell housing and connects to the propeller shaft via the output flange. In the drivetrain diagram it sits between the engine coupling and the shaft seal/cutlass bearing assembly. The V-drive output angle routes the shaft downward toward the keel, allowing the engine to sit further aft and higher in the hull.

When to Replace

Consider replacement when the transmission shows internal gear damage, slipping under load, loss of hydraulic pressure, bearing noise, metal contamination in the fluid, cracked housing, shift failure, or damage that is not economical to rebuild. Fluid contamination with water or a milky appearance warrants immediate inspection.

Installation Notes

• Confirm the model tag and ratio before removal
• Inspect the engine coupling, input shaft, and output flange for wear before installing the new unit
• Verify shaft alignment in the vessel after the drivetrain is fully supported and settled
• Check cooler hose routing, fluid capacity, and shift cable adjustment per the ZF service manual
• Final alignment should be completed with the vessel in the water under normal load conditions

Related Parts & Service Items

• ZF Marine Transmission Filter Kit 3312199031
• ZF Marine Transmission O-Ring – Seal Component
• ZF Marine Transmission O-Ring – Seal Component
• ZF Marine Transmission Sealing Ring
• ZF Marine Transmission O-Ring 16x2mm
• ZF Marine Transmission Output Flange 4"
• ZF Hurth Level Gauge Dipstick
• ZF Hurth 32 Needle Bearing

Technical FAQ

Q: What is the difference between the ZF 63IV and ZF 68IV?
A: The 68IV is the current production successor. Ratios are similar but not identical, and the mounting footprint and output flange dimensions may differ. Always verify before substituting.

Q: Can I use this transmission with a diesel engine?
A: The ZF 63IV is rated for both gasoline and diesel inboard applications within its torque capacity. Confirm the engine's output torque and RPM range against ZF's published ratings for this model.

Q: What fluid does this transmission use?
A: ZF Marine transmissions in this series typically use ATF (Dexron III or equivalent) or ZF-specified marine transmission fluid. Confirm with the ZF service manual for this model before filling.

Q: What is the service interval?
A: ZF recommends fluid and filter inspection annually or every 100–150 hours of operation, whichever comes first. Replace fluid and filter at the first sign of contamination or discoloration.

Parts Desk Insights

Best use case: This is the right transmission for a V-drive inboard rebuild or replacement where the original unit is the ZF 63IV or Hurth HSW630V1 with a 2.0:1 ratio and mechanical shift. It's a well-proven unit in the ski and wake boat segment.

Common mistakes: The most frequent ordering error is confusing the ZF 63IV with the ZF 68IV — the model names look similar and the ratios are close, but the mounting footprint and output flange are not always interchangeable. Always pull the model tag off the existing transmission before ordering. A second common mistake is ordering by ratio alone without confirming the output angle — not all 2.0:1 V-drive transmissions share the same 12° geometry.
