Mercury MerCruiser OEM Shift Crank 8M2009865 | Now 8M0226861 | Alpha One Gen I Gen II R MR Gear Housing

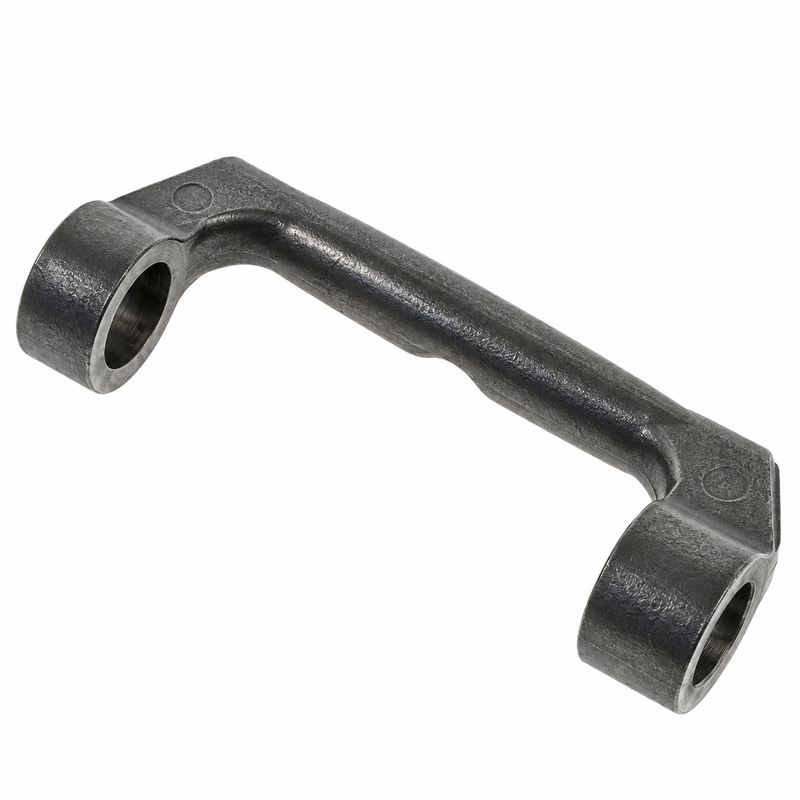

Mercury MerCruiser OEM Shift Crank — Part 8M2009865 (Current: 8M0226861)

• Part Number: 8M2009865
• Current OEM Replacement: 8M0226861 (Mercury supersession — this is the active part number to order)
• Replaces: 76865 (earlier MerCruiser shift crank)
• Supersession Chain: 76865 → 8M2009865 → 8M0226861
• Brand: Mercury Marine / MerCruiser (Genuine OEM)
• Official Product Type: Gear Housing & Shift Components — Shift Crank / Crank-Shifter
• System: Sterndrive lower unit — internal gear-housing shift mechanism
• Diagram Position: Shift crank inside the sterndrive gear housing, interfacing with the shift spool / shaft assembly
• Qty Required: 1 per applicable gear housing
• Weight: approx. 0.15 kg

Note on supersession: Mercury superseded 8M2009865 to 8M0226861. If your parts list or service record shows either 76865 or 8M2009865, the current part to order is 8M0226861. Confirm against the lower-unit diagram for your specific drive serial number.

What It Does

The 8M2009865 / 8M0226861 is the genuine OEM shift crank (crank-shifter) used inside the gear housing of a wide range of MerCruiser sterndrives. It forms part of the internal shift mechanism that transfers movement from the shift shaft to the spool / shaft assembly, enabling the lower unit to engage forward, neutral, and reverse gear. The shift crank was used across several drive generations — from early MC-1 style gear housings through Alpha One Gen I and both standard- and counter-rotation Alpha One Gen II configurations. Difficulty engaging gears or excessive internal shift play can result from wear in the crank, the shift spool, the shift shaft, the clutch dog, or the cable system — inspect all shift-mechanism components together rather than replacing the crank in isolation.

Compatible Applications

Confirm fitment by drive serial number and the specific Mercury gear-housing diagram before ordering. Very early gear housings may use a different crank design before the 76865 / 8M2009865 generation.

• Early MerCruiser MC-1 style sterndrives — selected gear-housing configurations
• MerCruiser 120 / 140 — selected configurations
• MerCruiser 165 — selected configurations
• MerCruiser 888, 898 — selected configurations
• MerCruiser R, MR — selected configurations
• Alpha One Gen I — selected configurations
• Alpha One Gen II — standard-rotation gear housings
• Alpha One Gen II — counter-rotation gear housings

Not sure it fits? Send us your MerCruiser drive serial number before ordering.

Related Shift Mechanism Components

Mercury gear-housing diagrams show the shift crank alongside the following components. Inspect all of them during lower-unit service — these are sold separately and are not included with the shift crank:

• 818349T1 — Shift spool / shaft assembly (Alpha One Gen II)
• 818349A1 — Earlier spool kit reference
• 8M0063266 — Shim set (applicable Alpha One Gen II assemblies)
• 15-44491A1 — Shim set (selected Alpha One Gen II applications)
• 15-47397A1 — Shim set (earlier MerCruiser gear housings)

Part Numbers & Supersession

• 8M0226861 — Current Mercury OEM replacement (order this number)
• 8M2009865 — Previous Mercury / MerCruiser part number; superseded by 8M0226861
• 76865 — Earlier MerCruiser shift crank; superseded by 8M2009865, then 8M0226861

When to Replace

Inspect or replace the shift crank when:

• The crank pivot or contact surfaces show visible wear or distortion
• The drive has difficulty engaging forward or reverse gear
• Excessive internal shift play is present in the gear housing
• The crank has been damaged during gear-housing disassembly
• A lower-unit rebuild reveals abnormal wear in the shift mechanism
• The crank is bent, cracked, or missing

Service Interval

Inspect at each scheduled lower-unit gear-lube service and whenever the gear housing is opened for service. If gear lube shows signs of water contamination or the lower unit has difficulty shifting under load, inspect the full shift mechanism — crank, spool, shift shaft, and clutch dog — before reassembly. Replace any component that shows abnormal wear to avoid reopening the gear housing shortly after service.

Installation Notes

• Confirm 8M0226861 (the current supersession of 8M2009865 and 76865) is the correct shift crank for your gear housing by serial number and diagram before installing
• Inspect the shift spool / shaft assembly (818349T1 or applicable reference) and its mating surfaces at the same time — wear in the spool can affect shift engagement even with a new crank
• Inspect the applicable shim set and replace if worn or distorted
• Verify smooth forward, neutral, and reverse engagement through the complete shift range before final gear-housing assembly
• Gearcase rebuilds require correct bearing, shim, and shift-component setup — follow the applicable MerCruiser service manual for lower-unit assembly, bearing preload, and shift-mechanism adjustment
• Do not treat the shift crank as an isolated external linkage part — internal shift problems often involve more than one component

Technical FAQ

Q: My parts list shows 76865 — what do I order?
Order 8M0226861. The supersession chain runs 76865 → 8M2009865 → 8M0226861. Mercury replaced 76865 with 8M2009865 and subsequently superseded that with 8M0226861. The 8M0226861 is the current OEM replacement for all three part numbers in applicable gear housings. Confirm against the current Mercury lower-unit diagram for your drive serial number.

Q: My sterndrive shifts hard or won’t engage cleanly — is the shift crank the cause?
Not necessarily. Shift problems on MerCruiser sterndrives can come from the shift crank, the shift spool / shaft assembly, the shift shaft, the clutch dog, the cable adjustment, or a combination of these. Inspect the complete shift mechanism during lower-unit service and replace all worn components at the same time rather than replacing one part and reassembling.

Q: Does this crank fit both standard and counter-rotation Alpha One Gen II drives?
Yes, within verified configurations. Both standard- and counter-rotation Alpha One Gen II gear housings are listed applications for 8M2009865 / 8M0226861. Confirm against the Mercury gear-housing diagram for your specific drive serial number before ordering.

Q: Why does my parts diagram still show 8M2009865 or 76865?
Older service manuals and parts diagrams may not reflect the current supersession chain. The current Mercury OEM part to order is 8M0226861 regardless of which earlier number appears in an older diagram. If in doubt, provide your drive serial number for confirmation.

Parts Desk Insights

The supersession chain is the most important thing to communicate with this part: 76865 → 8M2009865 → 8M0226861. A lot of service records and older diagrams still reference one of the earlier numbers, and customers occasionally call in for 76865 without knowing it has been superseded twice. The current part is 8M0226861. When the gear housing is open for a shift crank inspection, the shift spool and shaft assembly (818349T1) should be pulled and inspected at the same time — in most cases where the crank is worn, the spool shows corresponding wear on its contact surface. Replacing only the crank and leaving a worn spool in place means the drive may not shift correctly after reassembly, and reopening the gear housing is a significant labour job. Confirm shim selection from the diagram while everything is apart.
