Mercury MerCruiser Quicksilver Drive Lube Monitor Reservoir Cap 8067271

Mercury MerCruiser Drive Lube Monitor Reservoir Cap 8067271

Part Number: 8067271 (service format: 36-8067271)
Brand: Mercury / Quicksilver
Product Type: Drive Lube Monitor Reservoir Cap (OEM)
System: MerCruiser Sterndrive / Gear-Lube Monitor
Application: Gear-lube monitor reservoir cap — Alpha and Bravo sterndrives
Supersedes: 808625
Quantity Required: 1 per reservoir
GTIN / UPC: 745061482043
Approximate Weight: 50 g

What This Part Is

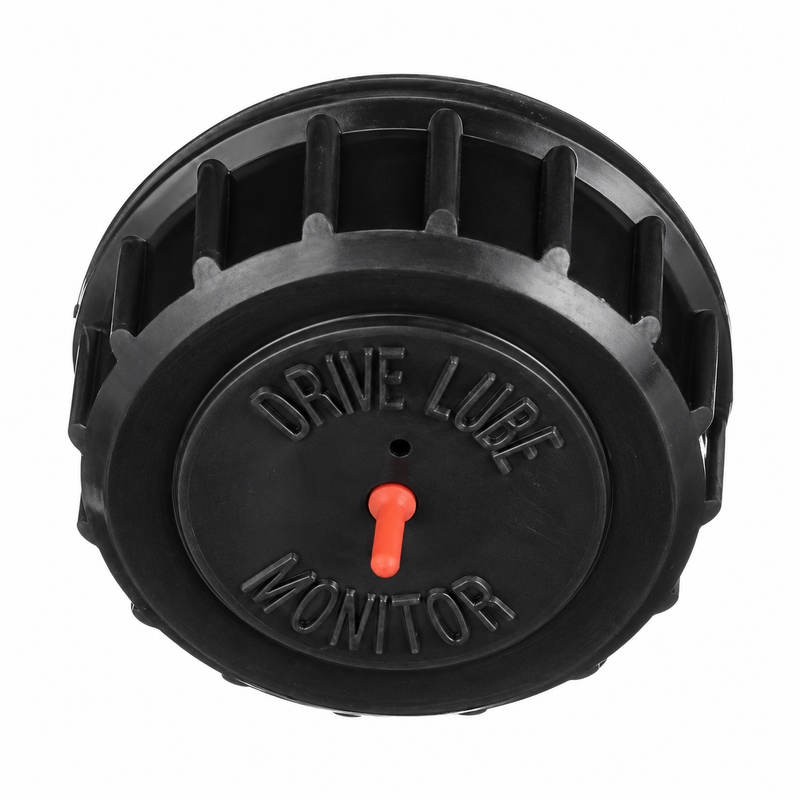

The 8067271 is the genuine OEM replacement cap for the gear-lube monitor reservoir on MerCruiser Alpha and Bravo sterndrives. The gear-lube monitor system allows visual confirmation that the sterndrive gearcase contains adequate lubricant. This listing is the reservoir cap only — it does not include the reservoir bottle, sensor, hose, connector, or bracket assembly.

Compatible Applications

• MerCruiser Alpha One sterndrive — where gear-lube monitor reservoir is installed
• MerCruiser Alpha One Gen II sterndrive — where gear-lube monitor reservoir is installed
• MerCruiser Bravo One sterndrive — where gear-lube monitor reservoir is installed
• MerCruiser Bravo Two sterndrive — where gear-lube monitor reservoir is installed
• MerCruiser Bravo Three sterndrive — where gear-lube monitor reservoir is installed
• MerCruiser 540 Stroker 4V (1G400000 and up) — Bravo application

Confirm the engine/drive model and reservoir assembly style before ordering. Mercury used several different lube-monitor bottle assemblies across Alpha and Bravo applications.

System Context

The gear-lube monitor reservoir sits in the engine compartment and is connected via hose to the sterndrive gearcase. The reservoir level provides a visual indication of gearcase lube status without requiring removal of the drive. The 8067271 cap seals the top of the reservoir bottle and must seat properly to maintain system integrity.

When to Replace

• Cap is cracked or physically damaged
• Cap no longer tightens or seals securely on the reservoir neck
• Cap is missing from the reservoir
• Sealing surface is damaged or deteriorated
• Cap is contaminated during drive-lube system service and cannot be cleaned adequately

Installation Notes

• Inspect the reservoir neck and sealing surface before installing the replacement cap
• Clean away old lubricant residue, dirt, or debris that could prevent proper seating
• Confirm the cap seats and tightens correctly before returning the drive to service
• While the reservoir is accessible, inspect the full lube-monitor system: bottle condition, hose routing and connections, connector at the transom, and bracket security

Related System Components

The following components make up the complete drive-lube monitor system. Inspect all when servicing the reservoir cap:

• 8M0075708 / 8M0075709 / 8M0075710 — lube monitor bottle / reservoir (application-specific)
• 808624 — reservoir connector
• 861163 — 90° connector to transom
• 8M0214996 — 1/4 in. ID lube-monitor hose
• 860065A1 — lube-monitor reservoir bracket kit

Part Number Cross-Reference

• Current OEM: 8067271 / 36-8067271
• Supersedes: 808625
• Supersession: 808625 → 8067271

Technical FAQ

Q: Does this cap include the reservoir bottle or sensor?
A: No. 8067271 is the reservoir cap only. The complete reservoir bottle is a separate assembly (8M0075708, 8M0075709, or 8M0075710 depending on application). Order the appropriate bottle assembly if the reservoir itself is cracked or damaged.

Q: What is the gear-lube monitor system?
A: It is a passive visual monitoring system that connects the sterndrive gearcase to a small reservoir in the engine compartment via a hose. The reservoir level allows quick visual confirmation of gearcase lube status. A drop in reservoir level can indicate a gearcase seal leak that should be investigated.

Q: Does 8067271 fit both Alpha and Bravo drives?
A: Yes, Mercury confirms fitment across Alpha and Bravo sterndrive applications where the gear-lube monitor reservoir is installed. Confirm the reservoir bottle style before ordering, as different bottle assemblies were used across production ranges.

Parts Desk Insights

Best use case: Order 8067271 when the reservoir cap is damaged, missing, or no longer sealing on a MerCruiser Alpha or Bravo sterndrive with a gear-lube monitor system. It is most commonly needed after a drive service where the cap was cracked or lost.

Common issues: The most frequent confusion is customers ordering this cap when they actually need the complete reservoir bottle assembly — the cap is inexpensive and easy to overlook as a separate part. If the reservoir bottle itself is cracked or leaking, the correct part is one of the 8M0075708 / 8M0075709 / 8M0075710 bottle assemblies, not this cap. Also confirm the reservoir is the style that uses this cap before ordering, as Mercury used different monitor configurations across production years.
