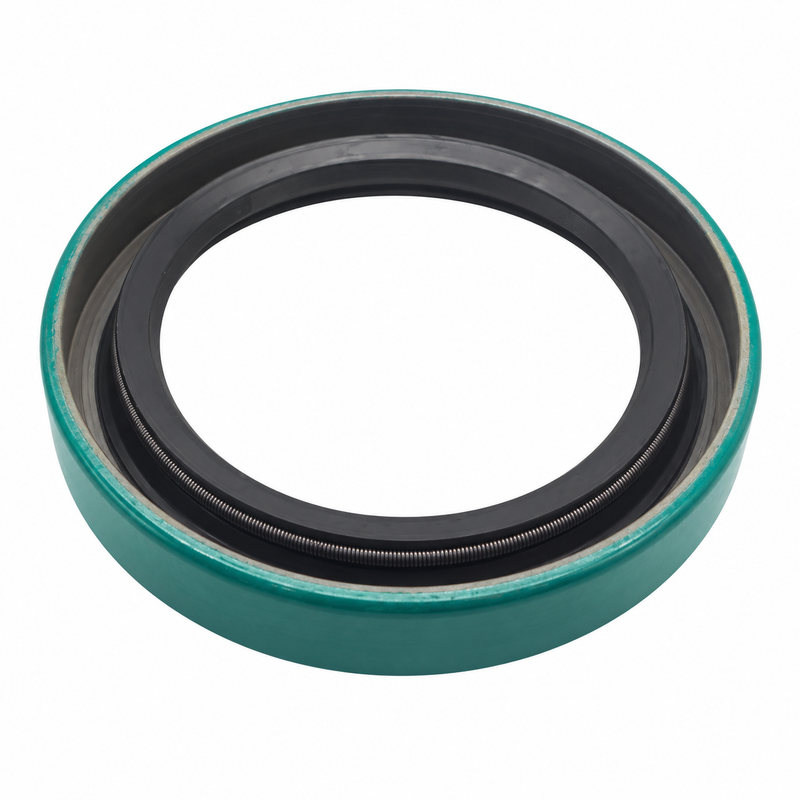

Mercury MerCruiser Quicksilver Bravo Upper Gear Housing Oil Seal 807006
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
807006 — OEM Upper Gear Housing Oil Seal
| Part Number | 807006 / 26-807006 |
| Brand | Quicksilver (Genuine Mercury Marine OEM) |
| Official Product Type | Oil Seal — Upper Gear Housing / U-Joint Carrier |
| Supersedes | 18816, 44190 |
| Replaced By | No supersession on file — 807006 is current |
| GTIN / Barcode | 745061285552 |
| Seal Diameter | 2.254 in. (documented in later Bravo carrier assemblies) |
| Quantity | 1 per applicable carrier assembly |
| System | Sterndrive — Upper Gear / U-Joint Input Shaft Sealing System |
What This Seal Does
The 807006 is the upper gear housing / U-joint carrier oil seal on MerCruiser Bravo-family sterndrives. It seats in the carrier assembly at the gear end of the U-joint / input-shaft area, retaining drive lubricant inside the upper gear housing while sealing around the rotating yoke and shaft assembly. Keeping this seal intact prevents lubricant loss and water intrusion — two of the most common causes of upper-gear failure on Bravo drives.
Compatible Applications
- Bravo One
- Bravo Two
- Bravo Three
- Bravo X One
- Bravo X Two
- Bravo X Three
- Bravo XR One
- Bravo XR SportMaster
- Bravo XZ One
- Selected integrated-transom Bravo configurations
- Blackhawk upper gear assemblies
Predecessor seal 18816 was used across Bravo One, Two, and Three drives in serial range 0B664190 – 0F729999. 807006 is the current replacement for those applications.
Fitment Notice — Read Before Ordering
Mercury uses more than one seal diameter in related Bravo carrier assemblies. Confirm the drive model, serial number, and upper-gear / U-joint carrier diagram before ordering.
- 807006 — 2.254 in. diameter (this part)
- 8M0214932 — 2.132 in. diameter (related assembly, not interchangeable)
These seals are not interchangeable even though they occupy similar diagram positions. Verify your carrier diagram position and serial number.
Serial Number Requirements
Predecessor seal 18816 applied to serial range 0B664190 through 0F729999 on Bravo One, Two, and Three. Later Bravo assemblies use 807006 directly. Confirm your serial number against the current Mercury parts diagram for your specific drive model.
When to Replace This Seal
- Gear lubricant leaking from the U-joint / input-shaft area
- Water intrusion found in the upper gear housing
- Seal lip is hardened, cut, or worn
- Seal is disturbed or damaged during carrier removal
- Yoke sealing surface shows leakage evidence
- Upper gear housing rebuild — replace any seal that has been disturbed
Diagram Position & Related Components
807006 installs in the carrier assembly alongside these components. Where available in our catalog, active links are provided:
- 8M0171142 — Carrier Assembly
- 8M0169062 — Ring Nut
- 41613 — Washer
- 8M0214974 — O-Ring
- 86780 — Sealing Ring
- 8M0103472 / 8M0104358 — Tapered Roller Bearing Assemblies
During service, inspect the yoke sealing surface, carrier bore, O-ring, bearings, and drive lubricant condition. Install the seal squarely and to the depth specified in the applicable Mercury service manual.
Technical FAQ
Q: Can I use 807006 where my diagram shows 8M0214932?
No. The 8M0214932 is the 2.132 in. diameter seal used in related carrier assemblies. The 807006 is the 2.254 in. version. They are not interchangeable — use the part number shown in your specific carrier diagram.
Q: My parts book still shows 18816 — is 807006 the correct replacement?
Yes. 18816 supersedes to 807006 and 44190 also supersedes to 807006. Order 807006 (current number: 26-807006).
Q: How do I know if this seal has failed?
Look for gear lube weeping from the U-joint / input-shaft area, water contamination in the upper gear housing oil, or visible hardening and cracking of the seal lip on inspection.
Q: What service interval applies?
Mercury does not publish a fixed mileage or hour interval for this seal. Replace during any upper gear housing disassembly, at the first sign of leakage, or whenever the carrier is removed for bearing service. Inspect condition annually during annual gear lube service.
Parts Desk Insights
Best use case: This is the seal to order when a Bravo drive is leaking at the U-joint / input-shaft area where it enters the upper gear housing. It is a high-confidence replacement for 18816 and 44190 on Bravo One, Two, and Three — and is the standard seal for later Bravo X, XR, XZ, and Blackhawk upper gear assemblies.
Common issue: The most frequent ordering mistake is confusing 807006 with the smaller 8M0214932 (2.132 in.) seal. Always confirm the carrier diagram and seal diameter before ordering — the two are not interchangeable despite occupying related positions in the upper gear assembly.
