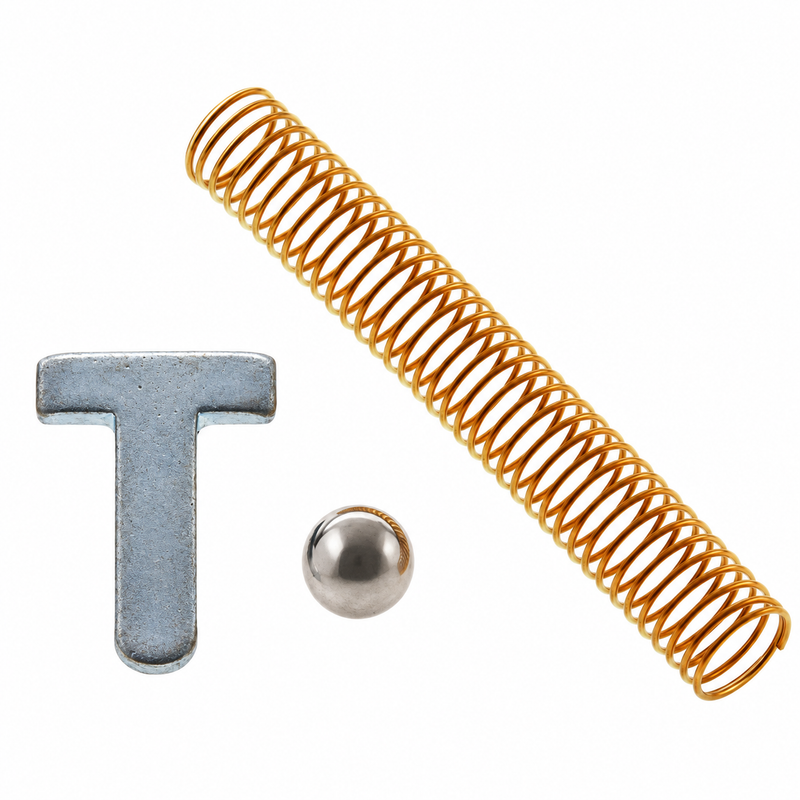

Mercury MerCruiser Quicksilver OEM Carburetor Check Ball Kit — Part 809520

• Part Number: 809520
• Full Catalog Reference: 3302-809520
• Brand: Mercury Marine / MerCruiser / Quicksilver (Genuine OEM)
• Official Product Type: Carburetor Parts — Check Ball Kit
• System: Fuel System — Carburetor (Mercarb and TKS configurations)
• Application: Accelerator-pump circuit check-ball components within the carburetor body
• Qty Required: 1 kit per applicable carburetor assembly
• GTIN / UPC: 745061294868
• Weight: approx. 0.05 kg

What It Does

The 809520 is the OEM check ball kit used inside select Mercarb and TKS carburetors on MerCruiser gasoline engines. The check ball acts as a one-way fuel-control component within the carburetor passage, and is particularly important to the accelerator-pump circuit — it controls fuel flow direction during pump operation and must seat cleanly to deliver a crisp, consistent shot of fuel when the throttle is opened. A dirty, worn, or improperly seated check ball is one of the more common causes of throttle hesitation on carbureted MerCruiser engines.

Compatible Applications

Confirm fitment by engine serial number and carburetor parts diagram before ordering. MerCruiser used several carburetor configurations across the same engine families.

• 3.0L GM 181 I/L4 — Mercarb applications
• 3.0L Alpha One — Mercarb applications
• 4.3L GM V6 — Mercarb and TKS applications
• 4.3L Carb Alpha / Bravo
• 5.0L Carb Alpha / Bravo
• 5.7L GM 350 V8 — Mercarb and TKS applications
• 5.0L / 5.7L sterndrive TKS applications

Not sure it fits? Send us your MerCruiser engine serial number before ordering.

Related Carburetor Service Parts

When servicing the carburetor, also inspect these components shown in Mercury carburetor diagrams. These parts are sold separately and are not included with 809520:

• 96551 — Accelerator Pump Kit (search by part number)
• 810916 — Accelerator Pump Arm (search by part number)
• 8109201 — Accelerator Pump Rod (search by part number)
• 804689 — Inlet Seat / Needle Kit (search by part number)
• 810929004 — Carburetor Gasket Set (search by part number)
• 9044 — Packing Set (search by part number)

Part Numbers & Supersession

• 809520 — Current Mercury Marine OEM reference
• 3302-809520 — Full Mercury catalog format

809520 remains an active Mercury part number with no confirmed supersession at time of listing.

When to Replace

Inspect or replace the check ball components during carburetor service if you are experiencing:

• Hesitation or stumble when the throttle is opened
• Weak or inconsistent acceleration from a standing start
• Fuel metering problems traced to the carburetor accelerator-pump circuit
• A stuck, corroded, or contaminated check ball found during disassembly
• Any internal carburetor overhaul where the check-ball passage is disturbed

If the accelerator pump is already being serviced, inspect the check ball at the same time — it costs very little to replace while the carburetor is apart.

Service Interval

There is no fixed replacement interval. Replace on condition or whenever the carburetor is disassembled for service. Inspect during any fuel system or carburetor rebuild and replace if the check ball shows wear, corrosion, or does not seat and release freely.

Installation Notes

• Confirm the carburetor configuration (Mercarb or TKS) and the exact diagram location for the check ball before disassembly
• Check balls are small directional components — correct placement in the carburetor passage is critical to proper operation
• Keep the carburetor work area clean; even small debris in a check-ball seat or fuel passage can cause poor accelerator-pump performance
• Follow the applicable Mercury Mercarb or TKS carburetor service procedure for correct installation sequence
• Inspect all adjacent components (pump kit, pump arm, gaskets) while the carburetor is apart

Technical FAQ

Q: Is 809520 used in both Mercarb and TKS carburetors?
Yes. Verified Mercury diagrams show 809520 in both conventional Mercarb and later TKS carburetor configurations across 3.0L, 4.3L, 5.0L, and 5.7L MerCruiser applications. It is not exclusive to either carburetor type.

Q: What symptoms indicate the check ball needs replacement?
The most common symptom is throttle hesitation — a stumble or flat spot when the throttle is opened, especially from idle. This is characteristic of an accelerator-pump circuit issue, and the check ball is a key component in that circuit.

Q: Is the accelerator pump kit included with 809520?
No. The check ball kit (809520) and the accelerator pump kit (96551) are separate parts. Both are commonly inspected and replaced together during carburetor service, but they must be ordered individually.

Q: How do I confirm 809520 is the right kit for my carburetor?
Match the part number against the Mercury parts diagram for your specific carburetor assembly, identified by engine serial number. Different carburetor castings used across the same engine families may have different internal components.

Parts Desk Insights

The 809520 check ball kit is an easy part to overlook during carburetor service — it is small, inexpensive, and tends to stay in place until it does not. The most common issue we see is customers who rebuild the accelerator pump and replace the gaskets but leave the original check ball in place, then come back with the same hesitation problem. If the carburetor is already apart and you are servicing the accelerator pump, replacing the check ball at the same time is the practical call. The other thing to watch is cleanliness: a check ball seat that looks clear can still have enough varnish residue to prevent a clean seal. Clean the passage thoroughly before installing the new ball.
