Mercury MerCruiser Quicksilver 20826 Gear Housing O-Ring — 2.230" × 0.139"

Mercury MerCruiser Quicksilver 20826 — Gear Housing O-Ring, 2.230" × 0.139"

Overview

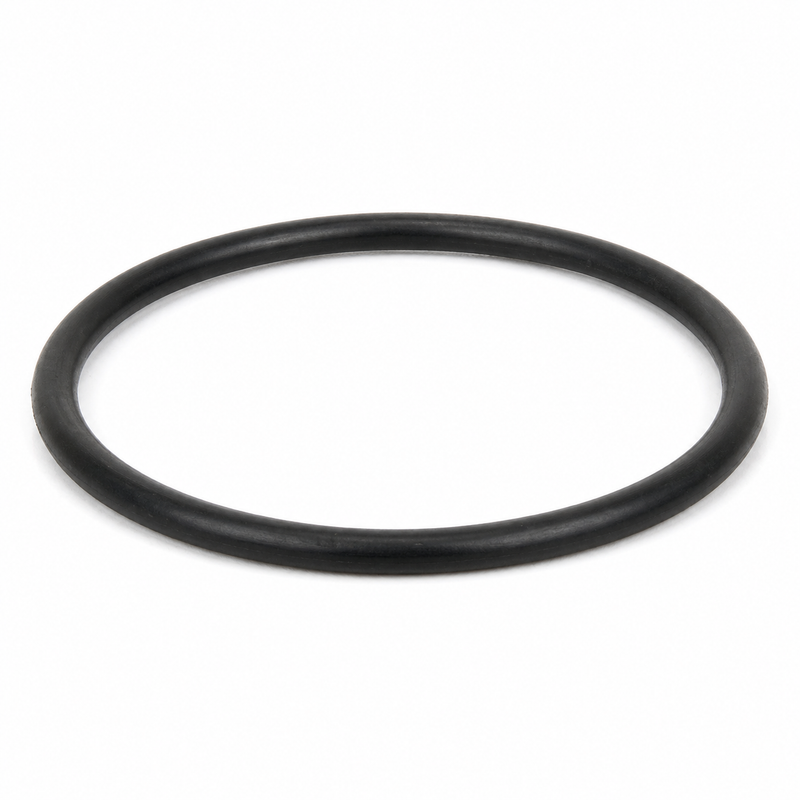

Mercury Quicksilver 20826 is a genuine OEM gear-housing O-ring used across a wide range of Mercury and MerCruiser sterndrive, jet-drive, transom, and Mercury Racing assemblies. It is a 2.230" ID × 0.139" cross-section O-ring used at gear-housing top covers and selected upper gear-housing sealing positions where Mercury parts diagrams specifically call for 20826 / 25-20826.

Fitment note: This O-ring appears across multiple Mercury assembly types. Mercury uses several different-sized O-rings in the same gearcase and jet-drive housings — the correct O-ring is determined by the exact parts diagram position and serial number, not by diameter or visual comparison alone. Always confirm by the serial-number-specific parts diagram before ordering.

Compatible Applications

• MerCruiser Bravo One sterndrive — gear-housing and top-cover sealing positions (confirm diagram location and serial range)
• MerCruiser Bravo Two sterndrive — gear-housing and top-cover sealing positions (confirm diagram location and serial range)
• MerCruiser Bravo Three sterndrive — gear-housing and top-cover sealing positions (confirm diagram location and serial range)
• MerCruiser Bravo X / Bravo XR / Bravo SportMaster — selected housing sealing positions (confirm diagram location and serial range)
• Mercury integrated and high-performance transom assemblies — selected positions (confirm diagram location and serial range)
• Mercury jet-drive housings — 120XR2, 175XR2, 200 DFI, 210 Carb, 240 EFI, 250 DFI jet-drive component groups (confirm diagram location and serial range)
• Mercury Racing engine and drive applications — selected housing sealing positions (confirm diagram location and serial range)
• Selected older Mercury 60 HP and Mark-series outboard applications (confirm diagram location and serial range)
• Assemblies adjacent to coupling kit 88243A3 — where diagram specifies 20826
• Always confirm by exact engine/drive model, serial number, and diagram position — this O-ring is used in multiple unrelated Mercury assembly locations

When to Replace

• Whenever the housing or cover it seals is removed — O-rings should not be reused once the joint has been separated
• O-ring is flattened, cut, hardened, swollen, cracked, or otherwise damaged
• Lubricant or water leakage at the housing joint after the assembly was last serviced
• During any gear-housing, jet-drive housing, or top-cover service where the O-ring groove is accessible

Installation Notes

• Clean the O-ring groove and all mating surfaces before installation — inspect for corrosion, burrs, or debris that could damage the new O-ring or prevent proper seating
• Lightly lubricate the O-ring with the lubricant specified in the Mercury service manual for the exact assembly before installation
• Seat the O-ring evenly in the groove — do not twist, stretch, pinch, or nick it during assembly; a twisted or nicked O-ring will not seal and can cause an immediate leak
• Confirm the correct diagram position before installing — this O-ring is used in multiple Mercury assembly locations and the correct position matters for proper sealing
• Do not reuse the old O-ring — a previously compressed O-ring will not seal reliably even if it looks undamaged

Technical FAQ

• Why can’t I just use a generic O-ring of the same diameter? O-ring sealing performance depends on both the inner diameter and the cross-section diameter. A ring with the correct ID but the wrong cross-section will be either too loose in the groove (causing leaks) or too tight (causing installation damage). Material hardness and compound also affect compression set and resistance to the specific fluids in the assembly. The OEM Mercury O-ring is sized and compounded for the exact groove and fluid environment.
• How do I confirm which O-ring my assembly needs? Look up your exact drive, engine, or jet-drive model and serial number in the Mercury parts catalog and locate the specific diagram that shows the housing or cover you are servicing. The diagram will show the correct O-ring part number for each position. This is the only reliable way to confirm the right O-ring when multiple sizes are used in the same assembly area.
• What happens if water gets past the gear-housing O-ring? Water intrusion into the gear housing dilutes the gear lube, which causes rapid bearing and gear wear. In most cases the damage is not immediately apparent but accelerates over time. A failed housing O-ring is one of the most preventable causes of gearcase failure — replacing O-rings during any housing service eliminates this risk.
• Should I replace all O-rings in the housing at the same time? Yes, in most cases. If the housing has been opened, replacing all O-rings in the assembly as a set adds minimal cost and eliminates the need to reopen the housing later for an O-ring that was reused and then failed. Mercury service kits for gear-housing service typically include all O-rings for the assembly.

Part Numbers & Cross-References

• Mercury OEM: 20826 / 25-20826
• Earlier superseded references: 20311 / 25-20311 / 802020
• Aftermarket equivalents: Sierra 18-7104 / Sierra 18-7459 / GLM 82280
• Johnson / Evinrude / OMC cross-references: 0308627 / 0509370 / 0777539 / 308627 (confirm application by diagram)

Parts Desk Insights

Best Use Case: This O-ring is the right call when servicing a Mercury sterndrive gear housing, jet-drive housing, or transom assembly where the parts diagram specifically calls for 20826 / 25-20826 at the housing cover or upper gear-housing sealing position. It’s a low-cost part that should always be replaced during any housing service rather than reused — the cost of the O-ring is negligible compared to the cost of reopening a housing due to a failed seal.

Common Issues: The most frequent mistake is selecting an O-ring by diameter alone without confirming the cross-section. Mercury uses several O-rings with similar IDs but different cross-section dimensions in the same gear-housing area — and they are not interchangeable. The second common issue is reusing the original O-ring during reassembly. A previously compressed O-ring may look acceptable but will not seal reliably in service, especially in high-vibration or temperature-cycling marine applications.
