Mercury MerCruiser Quicksilver Gear Housing Shim Set 8M0063267
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.

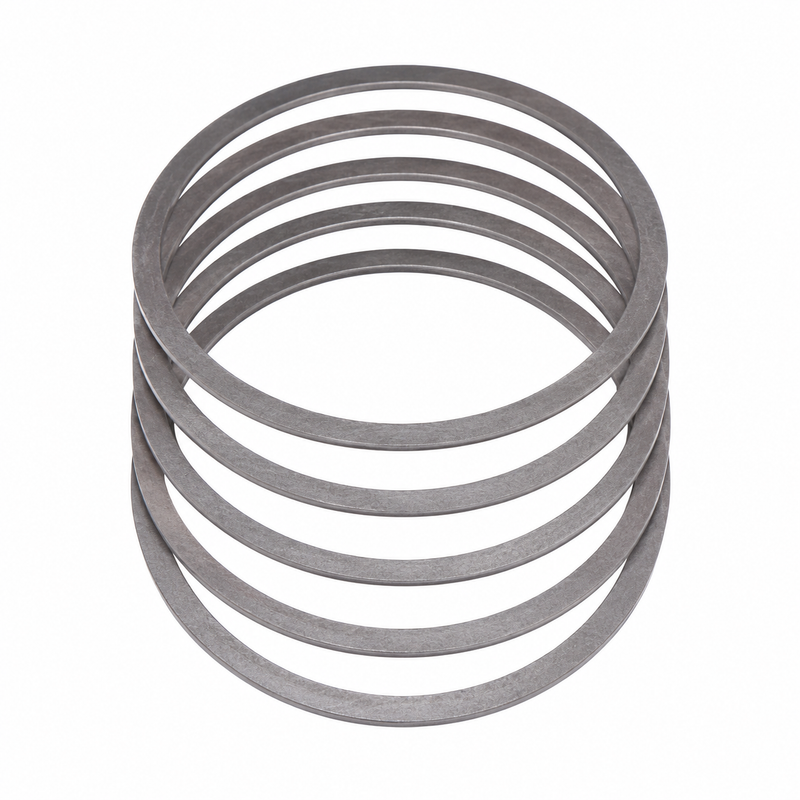

Mercury Quicksilver Gear Housing Shim Set – Roller Bearing to Gear Housing
Part Number: 8M0063267 (15-8M0063267)
Brand: Mercury / Quicksilver
GTIN: 745061897403
Product Overview
A genuine OEM roller-bearing-to-gear-housing shim set used during assembly or overhaul of selected Mercury outboard lower units. These shims establish the correct bearing and pinion-gear position relationship within the gearcase. Shim range shown in applicable diagrams: .006–.048 in. Quantity required varies based on the specific gearcase setup measurement.
Compatible Applications
- Mercury V-115 DFI / OptiMax 2.5L
- Mercury V-135
- Mercury V-175 DFI / OptiMax 2.5L
- Mercury Magnum II
- Mercury Magnum III
- Selected Mercury 140 Jet gearcase assemblies
- Additional Mercury V6 outboard gear housings using the same roller-bearing and pinion setup
Fitment Note: Fitment is gearcase- and serial-number-specific. Engine horsepower alone is not sufficient to confirm compatibility. Always match the engine serial number and gear-housing parts diagram before ordering.
When This Part Is Needed
- Rebuilding or overhauling the lower unit gearcase
- Replacing the driveshaft bearing or gear housing
- Existing shim stack is damaged, lost, or out of specification
Installation Notes
- Correct shim selection is a precision gearcase procedure — do not assume the old shim stack thickness is correct
- Measure and set bearing and pinion position per the applicable Mercury service manual
- Improper shimming affects gear alignment, bearing loading, and lower-unit durability
Superseded Part Numbers
- 42637A1
- 8M0053110 (selected later gearcase assemblies)
Related Parts
- Quicksilver Needle Roller Bearing 30956T
- Mercury MerCruiser Pinion Nut 11-35921
- Mercury Quicksilver Driveshaft Oil Seal 26-804156
- Mercury Outboard Propeller Shaft Oil Seal 8M0205729
- Mercury Quicksilver Lower Unit Seal Kit 26-33144A2
Parts Desk Insights
This shim set is a precision setup component, not a general hardware item. The most common issue is customers ordering by horsepower alone — fitment requires matching the specific gearcase assembly and serial number to the correct diagram. The required shim thickness must be measured during assembly, not copied from the old shim stack. If you’re rebuilding a lower unit and aren’t sure which shims apply, reference your Mercury service manual or contact us with your serial number before ordering.
