Quicksilver SC1000 Gauge Bezel – Chrome 85mm | 8590743
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.

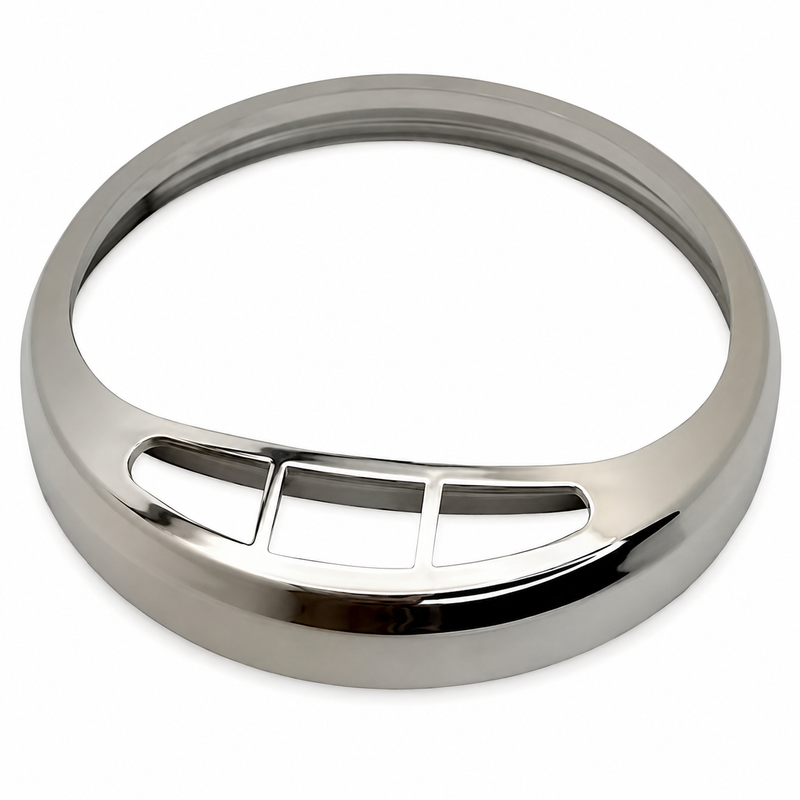

Quicksilver SC1000 Gauge Bezel – Chrome, 85mm | 8590743
Part Number: 8590743
Brand: Quicksilver (Mercury Marine OEM)
Official Product Type: Gauge Bezel / Trim Ring
Finish: Chrome
Diameter: 85mm
System: Instrumentation / Helm Panel
Condition: New OEM
What It Does
The Quicksilver 8590743 is the genuine OEM chrome bezel (trim ring) for the Quicksilver SC1000 multifunction gauge series. The bezel frames the gauge face at the helm panel, providing a finished, factory appearance and protecting the gauge mounting edge. At 85mm diameter, this bezel fits the standard SC1000 gauge cutout size. It is a direct OEM replacement for a bezel that is cracked, corroded, scratched, or missing.
Compatible Applications
- Quicksilver SC1000 multifunction gauge — 85mm panel cutout
- Any helm panel installation using the SC1000 gauge in the standard 85mm format
Note: This bezel is specific to the SC1000 gauge series and the 85mm cutout diameter. Confirm your gauge model and panel cutout size before ordering. Bezels are not interchangeable between different gauge series or cutout sizes.
Dimensions
Bezel Outer Diameter: 85mm
Finish: Chrome
Fits: Quicksilver SC1000 gauge series, standard 85mm panel cutout
Diagram Position
This bezel appears in the SC1000 gauge assembly diagram as the outer trim ring component. It is the outermost visible ring at the helm panel face, separate from the gauge body and mounting hardware.
Supersedes / Alternate Part Numbers
- 8590743 — current Quicksilver OEM part number (no known supersession on record)
Kit Contents
Single chrome bezel ring. Gauge, mounting hardware, and wiring harness are not included.
Service Interval
No scheduled replacement interval — replace when the bezel is cracked, heavily corroded, scratched, or damaged. Chrome bezels on saltwater boats are particularly susceptible to pitting and corrosion over time, especially if the protective finish is compromised.
Technical FAQ
Q: Will this bezel fit any 85mm gauge, or only the SC1000?
This is an OEM bezel designed specifically for the Quicksilver SC1000 gauge. While the outer diameter is 85mm, the profile, clip design, and fit may differ from generic or third-party gauge bezels. For a guaranteed fit, use this part only with the SC1000 gauge it was designed for.
Q: Is there a black bezel option for the SC1000?
This listing is for the chrome finish only. If you need a black bezel for the SC1000, check the Mercury parts catalog for the alternate finish part number, or contact us to confirm availability.
Q: My bezel snapped during removal — is this common?
Yes. Plastic bezels that have been exposed to UV and saltwater for several seasons become brittle and can crack during removal. If you’re removing the gauge for service, work carefully around the bezel clips and consider having a replacement on hand before you start.
Related Products
Parts Desk Insights
Best Use Case: This bezel is the right call when you’re refreshing a helm panel that has a perfectly functional SC1000 gauge but a cosmetically damaged or corroded bezel. It’s a low-cost way to restore a clean, factory look without replacing the entire gauge. It’s also a smart part to have on hand before pulling a gauge for service — bezels rarely survive removal intact on older installations.
Common Issues: The most common problem is ordering a bezel by diameter alone without confirming the gauge model. An 85mm bezel from a different gauge series may not clip or seat correctly on the SC1000. Always match by part number. The second common issue is corrosion — chrome bezels on saltwater boats can pit and lose their finish within a few seasons if not rinsed regularly. If the gauge is in a high-exposure location, consider whether a black or non-chrome option might hold up better long-term.
