Mercury MerCruiser Quicksilver 3-Inch Riser Extension Kit 864929A3 | Standard Cooling Dry Joint
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.

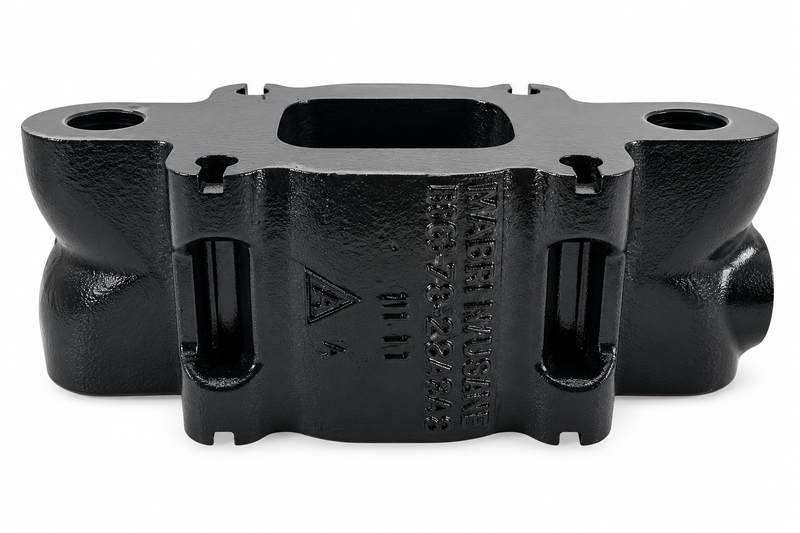

Mercury / Quicksilver OEM 3-Inch Riser Extension Kit — Part No. 864929A3
| Part Number | 864929A3 |
|---|---|
| Brand | Mercury Marine / Quicksilver |
| Product Type | Exhaust Riser Extension Kit |
| Extension Height | 3 in. / 76 mm |
| Kit Contents | 2 riser extensions (1 kit services one engine) |
| Exhaust System | Dry-Joint |
| Cooling Type | Standard / Raw-Water Cooling |
| UPC / GTIN | 745061564657 |
| Supersedes / Related | 864929A1 (earlier reference) |
About This Kit
The 864929A3 is a genuine Mercury Marine / Quicksilver OEM exhaust riser extension kit that raises the exhaust elbow connection by 3 inches (76 mm) on MerCruiser dry-joint exhaust systems with standard (raw-water) cooling. Each kit contains two riser extensions, providing everything needed to service one complete engine installation. Proper riser height is critical in marine applications — adequate separation between the exhaust outlet and waterline helps prevent water from entering the exhaust system.
Important distinction: The A3 suffix identifies this as the standard / raw-water cooling version. The companion kit 864929A4 is for closed-cooling applications. Both use 3-inch extensions but they are not interchangeable — confirm your cooling system type before ordering.
Compatible Applications
Confirm the engine serial number, cooling-system type, and dry-joint exhaust configuration before ordering.
- 2004–2016 MerCruiser sterndrive V6 & V8 — 305 CID / 5.0L, 350 CID / 5.7L, 377 CID / 6.2L (non-EC engines, SN 0W310000 and up)
- 2002–2016 MerCruiser inboard V8 — 350 CID / 5.7L, 377 CID / 6.2L (non-EC engines, SN 0M390000 and up)
- Standard / raw-water cooled dry-joint exhaust manifold configurations only
When This Kit Is Needed
- Riser spacers are corroded, pitted, or cracked
- Exhaust system rebuild requiring replacement of original 3-inch spacers
- Exhaust outlet height needs to be restored to factory specification
- New boat installation requiring additional riser height
- Water intrusion suspected due to insufficient exhaust-to-waterline separation
Installation Notes
- Verify the engine uses a dry-joint exhaust manifold — do not install on wet-joint systems
- Confirm standard / raw-water cooling — closed-cooling engines require 864929A4
- Inspect both exhaust manifolds and elbows for corrosion or erosion before reassembly
- Replace dry-joint gaskets during reassembly — gasket selection depends on cooling configuration (restrictor 864850A02, block-off 864549A02, or full-flow 864547A02)
- Check all mating surfaces for pitting before torquing fasteners
- Verify exhaust hose and elbow alignment after the 3-inch extension is installed
- Follow the applicable MerCruiser service manual for torque specs and gasket selection
Kit Contents
- 2 × 3-inch (76 mm) exhaust riser extensions
- One kit services one complete engine
Related & Alternate Part Numbers
- 864929A1 — earlier related reference (superseded by A3)
- 864929A4 — 3 in. riser extension kit, closed-cooling version
- 865995A01 — 1.7 in. riser extension kit, standard cooling
- 865996A01 — 1.7 in. riser extension kit, closed cooling
- 864850A02 — restrictor gasket for riser / cooling circuit
- 864549A02 — block-off gasket
- 864547A02 — full-flow gasket
- Sierra 18-1847K — aftermarket 3 in. dry-joint standard-cooling spacer kit (cross-reference)
Related Products
- Sierra Exhaust Manifold — Dry Joint — 47-1842 — dry-joint exhaust manifold for MerCruiser applications
Parts Desk Insights
The single most common ordering mistake on this kit is confusing standard cooling (A3) with closed cooling (A4). Both are 3-inch dry-joint kits and look identical, but they are engineered for different cooling circuits. Check your engine's cooling system type first — if your engine uses a heat exchanger (fresh-water cooled), you need the A4; if it circulates raw lake or sea water directly through the engine, you need the A3. When in doubt, your engine's serial number and the parts diagram will confirm which version applies.
