Mercury — MerCruiser Bearing Carrier Anode — Alpha One Gen II and Vazer — 806105T1
In stock items ship same or next day.
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.

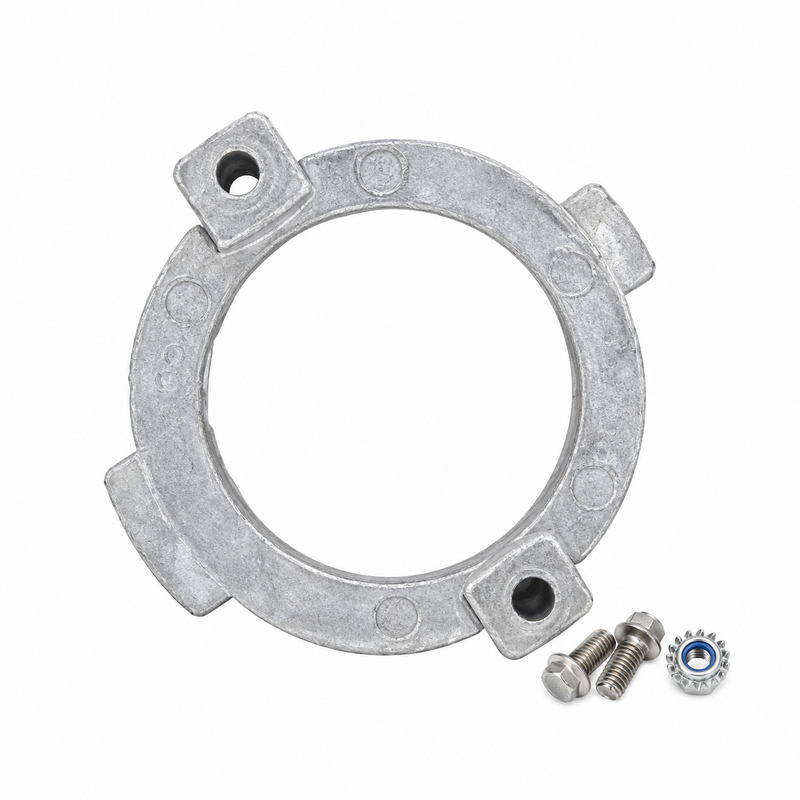

Mercury 806105T1 Bearing Carrier Anode for Alpha One Gen II and Vazer
Help protect the gearcase from galvanic corrosion with this aluminum sacrificial anode for the bearing-carrier area of compatible MerCruiser sterndrives. It is suitable for freshwater and saltwater use and includes attaching hardware.
Compatible Applications
- MerCruiser Alpha One Gen II sterndrives
- MerCruiser Vazer sterndrives
Part Details
- Brand: Mercury
- Part number: 806105T1
- Mercury reference: 97-806105T1
- Quicksilver equivalent: 806105Q1
- Product type: Bearing carrier anode
- Material: Aluminum
- Location: Bearing carrier area behind the propeller
- Contents: One anode with attaching hardware
Fitment Notice
Confirm the drive model and serial number, then compare the installed bearing-carrier anode and mounting points before ordering. Select the drive-specific diagram in Mercury Parts Finder. Compatible-part listings show approximate dimensions, but Mercury does not publish an OEM dimensional drawing for this part, so those measurements are not stated as exact specifications here.
When to Replace
Inspect the anode regularly. Mercury recommends replacing a sterndrive anode when about half its metal has been consumed, or sooner if it is cracked, loose, or missing.
Installation Notes
Mount the anode against a clean metal contact surface using the supplied hardware. Do not paint the anode, as a coating can prevent it from protecting the drive.
Technical FAQ
Is this a trim-tab or transom anode? No. This anode mounts at the bearing carrier behind the propeller; trim-tab and transom anodes use different locations.
How do I confirm the correct fit? Match the drive model and serial number to its diagram, then compare the bearing-carrier mounting points.
Related Alpha One Gen II Anodes
These are other anodes for Alpha One Gen II drives, not replacements for the bearing-carrier anode. Vazer fitment is not verified for these linked products. Confirm drive serial number, mounting position, and anode material before choosing:
- Alpha One Gen II Aluminum Anode Kit
- Alpha One Gen II Zinc Anode Kit
- Alpha One Gen II Magnesium Anode Kit
- Mercury 76214T5 Flat Anti-Vent Plate Anode, a different mounting position
Parts Desk Insights
Best use: Sacrificial protection for the gearcase at the bearing-carrier area.
Common mistake to avoid: Choosing a trim-tab or transom anode because it looks similar. Those anodes mount in different locations.
Sizing and fitment: Use the drive-specific serial-number diagram and compare the installed anode and mounting points. Approximate compatible-part dimensions are not an OEM specification.
