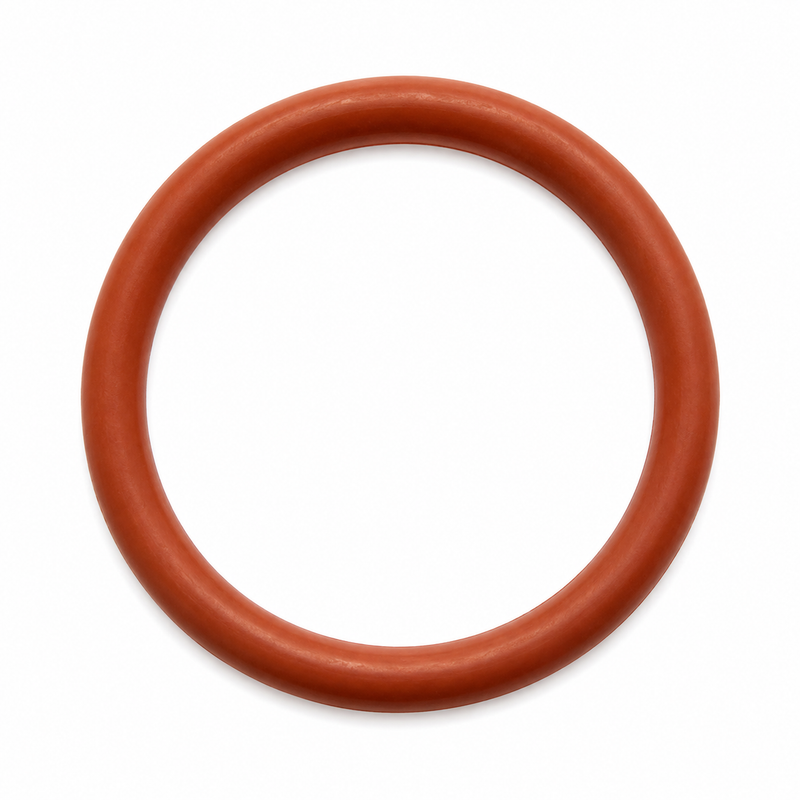

Mercury MerCruiser Quicksilver Water Tube O-Ring 8M0204645
In stock items ship same or next day.
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Part Details
- Part Number: 8M0204645
- Service Format: 25-8M0204645
- Brand: Mercury / Quicksilver
- Type: O-ring — water tube / water-pump coupling seal
- System: Cooling — lower unit water tube and water-pump coupling assembly
- Dimensions: Approx. 0.796 in. ID × 0.139 in. cross-section
- GTIN: 745061130579
- Replaces: 21836 (historical cross-references: 20679, F53795, F53795-1)
- Qty Per Assembly: 1 or 2 depending on application — confirm by diagram position
- Important: Mercury uses several similarly sized O-rings in the same lower unit. Do not select by diameter alone — confirm the exact diagram position and part number.
About This Part
Genuine Mercury / Quicksilver 8M0204645 is an OEM O-ring used at the water tube, water tube extension, and water-pump coupling area of selected Mercury outboard and MerCruiser gearcase assemblies. Mercury parts diagrams identify 8M0204645 as the direct replacement for earlier O-ring 21836, and list it in several cooling-water and lower-unit gearcase arrangements where it seals the water passage at the tube or coupling joint. Because Mercury uses several nearly identical O-rings at different positions within the same lower unit, the correct part must be confirmed by diagram position — not by diameter or appearance alone.
Compatible Applications
- Mercury 75 HP EFI FourStroke — standard-rotation gearcase, water-pump coupling area (2 required in this application)
- Selected Mercury two-stroke outboards — water tube extension position
- Selected Mercury / MerCruiser gear housing and water-pump rebuild assemblies using the original 21836 / 8M0204645 seal
Confirm compatibility by engine or drive model, serial number, and the exact exploded-view diagram position. Some assemblies use one O-ring; others use two at the water-pump coupling — do not assume quantity without checking the diagram.
O-Ring Position Reference — Same Lower Unit
Mercury uses several different O-rings in the same gearcase. Do not substitute by appearance or diameter:
- 8M0204645 — 0.796 × 0.139 in. — water tube / water-pump coupling (this part)
- 32509 — 0.489 × 0.070 in. — water tube (different position)
- 859774 — 0.412 × 0.210 in. — water tube (different position)
When to Replace
Replace this O-ring whenever the water tube, coupling, or gearcase cooling assembly is disassembled, or when inspection reveals any of the following:
- Flattening or permanent compression set
- Cuts, nicks, or tearing
- Hardening or brittleness
- Swelling or distortion
- Cracking
- Visible leakage or evidence of poor sealing around the water-tube connection
A damaged seal at this location can reduce cooling-water flow to the engine, potentially leading to overheating. Replace O-rings as a set whenever the assembly is apart rather than reusing old seals.
Installation Notes
Clean the water-tube or coupling groove and all mating surfaces before installation. Lightly lubricate the O-ring with clean water or the recommended assembly lubricant and seat it evenly so it is not twisted or pinched during reassembly. Where the applicable Mercury diagram specifies two 8M0204645 O-rings (such as the 75 HP FourStroke gearcase), replace both and confirm their individual positions before reinstalling the coupling or gear housing.
Related Service Parts
- Mercury MerCruiser Gasket Inlet Seat 25033
- Mercury MerCruiser Quicksilver Lockwasher 8M0204647
Cross-Reference Part Numbers
- Current OEM: 8M0204645 / 25-8M0204645
- Replaces: 21836
- Historical cross-references: 20679, F53795, F53795-1
- GTIN: 745061130579
Parts Desk Insight
8M0204645 is specifically a cooling-water / water-tube O-ring, not a generic gearcase seal. The most common issue is selecting the wrong O-ring by diameter or appearance — Mercury uses several similarly sized seals at different positions within the same lower unit, and they are not interchangeable. Matching by the service part number 25-8M0204645 or the superseded number 21836, and confirming against the exact exploded-view diagram position, is the most reliable approach. When servicing the lower unit cooling system, replace all O-rings in the water-tube assembly at the same time rather than replacing only the one that shows obvious damage.
