Minn Kota Quick Release Bracket – Cable-Steer Bow-Mount Motors, Long Shaft (Part #1862052)
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.

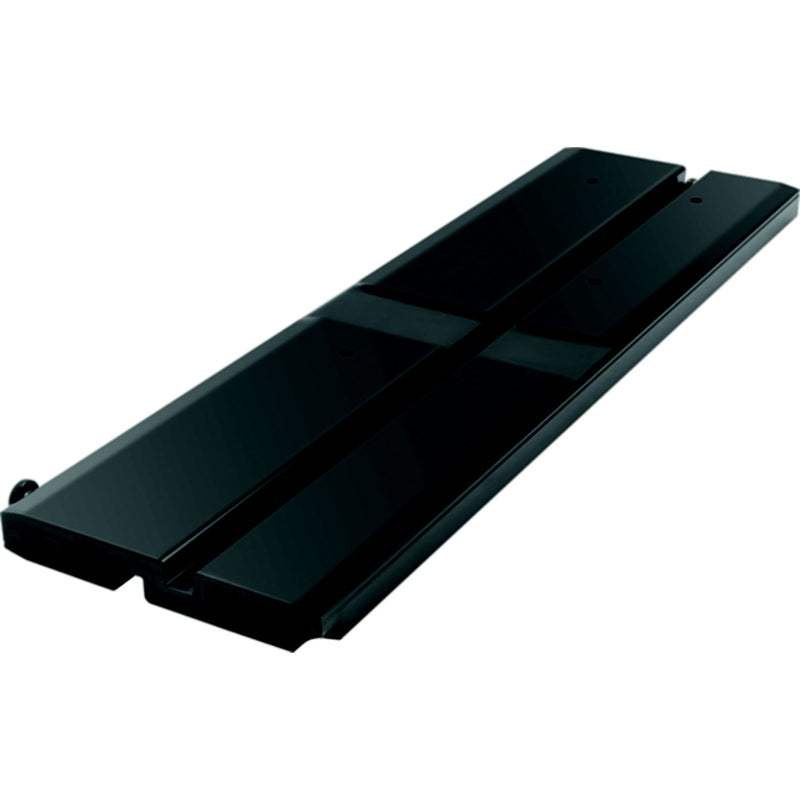

Minn Kota Quick Release Bracket – Long Shaft, Cable-Steer Bow-Mount Motors
The Minn Kota 1862052 Quick Release Bracket is the long-shaft version of Minn Kota’s heavy-duty cable-steer mounting solution — designed for bow-mount motors with foot control shafts from 57" to 72" and hand control shafts up to 62". Built from extruded aluminum with a side-screw locking mechanism, it holds the motor securely while underway and releases cleanly when you need to stow or transport. Reinforced to handle the higher torque output of QUEST series motors, it’s the right bracket for larger, deeper-hulled boats where longer shafts are required.
Key Features
- Extruded Aluminum Construction – Lightweight yet rigid; resists corrosion and flex under load
- Side-Screw Locking System – Provides a quiet, rattle-free lock that releases quickly when needed
- QUEST-Rated Torque Capacity – Engineered to handle the increased torque of high-thrust QUEST series motors
- Stainless Steel Hardware Included – Comes with both 5/16" and 1/4" stainless steel mounting fasteners for a complete installation
Compatible Applications
- Cable-steer bow-mount trolling motors with foot control shafts from 57" to 72"
- Cable-steer bow-mount trolling motors with hand control shafts up to 62"
- Compatible with Minn Kota QUEST series motors, including the Ultrex QUEST 60" Shaft
- Deeper-hulled boats — pontoons, larger fiberglass bass boats, and walleye boats — where a longer shaft is required to reach proper motor depth
- Not intended for hand-steer or transom-mount motors
Specifications
- Part Number: 1862052
- Material: Extruded aluminum
- Locking Mechanism: Side screw
- Hardware Included: 5/16" and 1/4" stainless steel mounting hardware
- Shaft Compatibility: Foot control 57–72", Hand control ≤62"
Also Available
- Minn Kota 1862042 Quick Release Bracket – Short Shaft (Foot Control ≤45", Hand Control ≤52")
- Minn Kota QUEST Quick Release Bracket – Black
- Minn Kota QUEST Quick Release Bracket – White
- Minn Kota MKA-64 Quick Release Bracket – Black
- Minn Kota MKA-23 Composite Scissors Quick Release Bracket
Parts Desk Insights
Best use case: This bracket is the correct choice for customers running a cable-steer bow-mount motor on a longer shaft — most commonly a 60" or 72" foot-control setup on a deeper-hulled fiberglass bass boat, walleye boat, or large pontoon where the motor needs extra reach to achieve proper running depth. It’s the natural companion to QUEST series motors at longer shaft lengths.
- Shaft length is the key selection factor — if the customer’s foot control shaft is 45" or shorter, they need the 1862042 short-shaft bracket instead
- Both 5/16" and 1/4" hardware are included — no additional fasteners needed for a standard installation
- The side-screw locking design eliminates the rattle common with older bracket styles — a frequent customer complaint worth mentioning at point of sale
- For non-cable-steer or transom-mount applications, see the MKA-23 Composite Scissors Bracket or browse the full Minn Kota Accessories & Rigging collection
