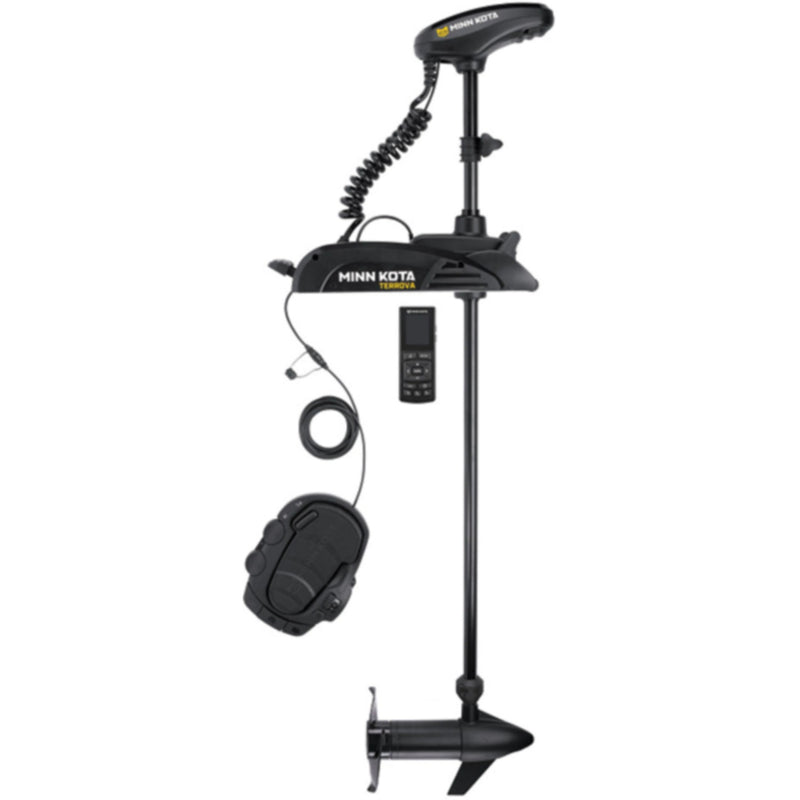

Minn Kota Terrova 80 lb Bow Mount Trolling Motor – 45" Shaft, 24V, Dual Spectrum CHIRP

More Power. Low-Profile Bow. GPS Precision.

The Minn Kota Terrova 80 lb steps up to 24-volt power for anglers who need more thrust than a 12V system can deliver — without giving up the compact 45" shaft suited to low-profile bows. It brings the full Terrova GPS feature set, including Spot-Lock® positioning and AutoPilot™ heading control, plus built-in Dual Spectrum CHIRP sonar for clear fish and structure returns. A strong choice for mid-size freshwater boats where bow height is low but conditions demand more push.

Key Features

• 80 lbs of Thrust / 24V: More power than a 12V system for mid-size boats in wind and current
• 45" Indestructible Composite Shaft: Compact shaft for low-profile bows; lifetime guarantee against breakage
• Spot-Lock® with Jog: GPS anchor holds your exact position; micro-adjust with the push of a button
• AutoPilot™: Automatically steers a straight heading so you can focus on fishing
• Dual Spectrum CHIRP Sonar: More accurate fish and structure returns than traditional sonar, built into the motor head
• Digital Maximizer™: Extends battery run time up to 5× compared to conventional motors
• Weedless Wedge™ 2 Prop: Swept-back blades power through weeds without bogging down
• Push-to-Test Battery Meter: Instant battery status at the motor head
• Mobile App Compatible: Full control from your Apple® or Android™ device
• Includes: Handheld remote and corded foot pedal

Compatible Applications

• Mid-size freshwater fishing boats with low bow profiles (up to approximately 20" bow height)
• Aluminum fishing boats and fiberglass bass boats in the 17–21 ft range
• 24-volt dual battery systems
• Anglers who need more thrust than 12V provides but have a low-profile bow that limits shaft length
• Humminbird® CHIRP-compatible fish finder users

In the Box

• Minn Kota Terrova trolling motor (80 lb / 45" / 24V)
• Handheld remote
• Corded foot pedal
• Integrated Dual Spectrum CHIRP sonar transducer

Related Models

• Need a longer shaft? See the Terrova 80 lb / 72" Shaft model
• Fishing saltwater? See the Riptide Terrova 80 lb Saltwater models
• Need maximum thrust? See the Terrova 112 lb / 36V models
• Looking for a lighter 12V option? See the Terrova 55 lb / 45" / 12V model

Parts Desk Insights

Best Use Case: The Terrova 80 lb / 45" / 24V is the right call for anglers with a low-profile bow (up to ~20" from the waterline) who have outgrown 12V performance — typically on mid-size aluminum or fiberglass boats in the 17–21 ft range fishing in wind, current, or open water where 55 lbs of thrust isn’t enough to hold position. The 45" shaft is the limiting factor: if your bow is higher than ~20", step up to the 54" or 60" shaft version instead.

Shaft Selection Tip: A general rule is to add 16" to your bow height to determine the minimum shaft length needed. Measure from the waterline to the top of the bow mount before ordering. If the 45" shaft is borderline for your setup, size up — too short causes cavitation and efficiency loss.

24V Battery Setup: This motor requires two 12V batteries wired in series to produce 24V. Use matched batteries of the same age, type, and capacity for best performance. AGM or lithium batteries in the 100–120 Ah range are recommended.

Sonar Note: Dual Spectrum CHIRP is a solid sonar upgrade over traditional single-frequency sonar, but is not the same as MEGA Down Imaging. If MEGA imaging is a priority, consider the Terrova 112 lb models with MEGA Down Imaging.
