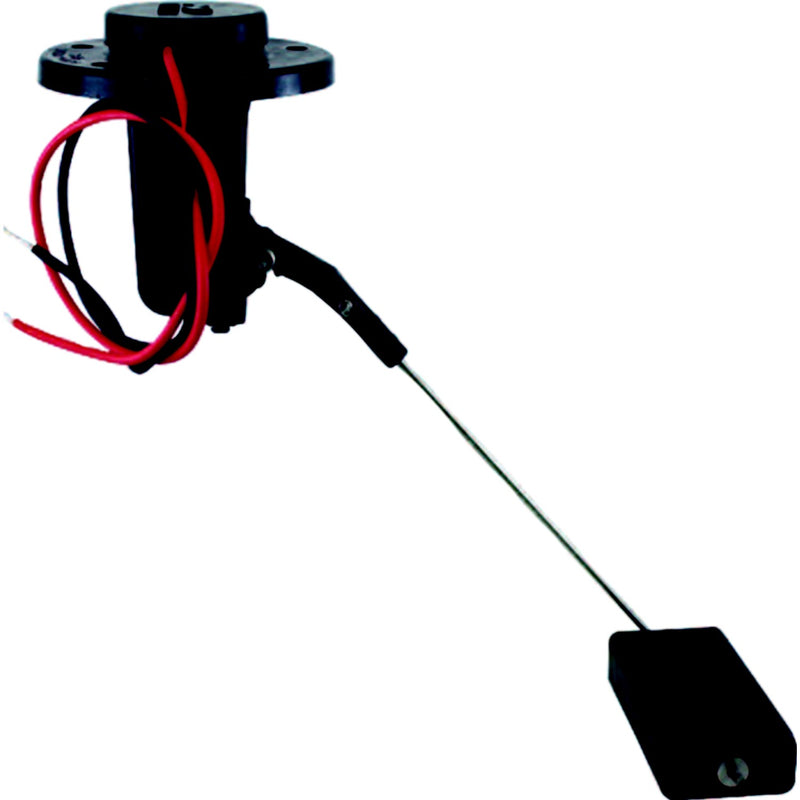

Moeller Reed Array Sending Unit for Tank Depth 6 to 24"

Sold out
Original price $112.69
Original price $112.69 - Original price $112.69
Original price $112.69
Current price $107.06
$107.06 - $107.06
Current price $107.06
Availability: Sold out

No restocking fees on eligible returns

You have 30 days to request a return. All sale items are final sale.

Customer pays return postage. Return postage is reimbursed if we made a mistake.

Monitor fuel level with the Moeller Reed Array Sending Unit designed for universal top-mount installation in fuel tanks with a 6" to 24" depth range. This molded thermoplastic sender features a corrosion-protected, sealed electrical circuit and a SAE 5-hole mounting bolt pattern to help protect against fuel, water, and other contaminants.

Key Features

  • Molded, UV-stabilized thermoplastic sender with corrosion protection
  • Standard SAE 5-hole mounting bolt pattern
  • Sealed electrical circuit helps protect against fuel, water, and contaminants
  • Reed switch and magnet technology for dependable fuel-level sensing
  • Suitable for gasoline, ethanol, bio-diesel and non-potable water
  • Temperature range: -40°F to 176°F
  • Meets requirements of ISO 10088, ABYC H-24, 33CFR 183.590 and ISO 8846
  • Calibrated to the industry standard of 33-240 ohms (dash gauge compatibility)
  • Tank depth range: 6" to 24" (152-610 mm)
  • Three year limited warranty

Product Compatibility

  • Marine fuel level sensing (tank depth 6" to 24")
  • Top-mount fuel tanks (aluminum, plastic, or stainless steel)
  • Gasoline / ethanol / bio-diesel fuel systems
  • Non-potable water level applications where a compatible 33-240 ohm dash gauge is used

Product Details

  • Moeller Reed Array Sending Unit for Tank Depth 6 to 24"
  • SKU / Part number: 114-03579110
  • Type: Reed array sending unit (sender)
  • Tank depth range: 6" to 24" (152-610 mm)
  • Mounting: Top mount with standard SAE 5-hole mounting bolt pattern
  • Output / calibration: 33-240 ohms (calibrated industry standard)
  • Temperature range: -40°F to 176°F
  • Warranty: Three year limited warranty
  • Weight (variant data provided): 544 g

Parts Desk Insights

Best Use Case: Best for replacing a reed array fuel level sender when you need a universal, top-mount unit calibrated to 33-240 ohms for a compatible dash gauge, and your tank depth falls within 6" to 24".

Common Issues: Common install pitfalls include choosing the wrong sender for the tank depth range (6"–24"), not verifying gauge resistance compatibility (33-240 ohms), or missing/properly seating the 5-hole gasket and screws during top-mount installation. Also confirm the mating surfaces and tank opening are clean and that wiring connections are kept sealed/protected from fuel exposure.
