Sherwood Raw-Water Pump Neoprene Impeller Kit 12-Blade - 17000K-SHW
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
The Sherwood 17000K-SHW Flexible Neoprene Impeller Kit is a factory-packaged raw-water pump service kit for compatible Sherwood marine engine cooling pumps. It includes the flexible neoprene impeller and related service components needed for routine raw-water pump maintenance.
This kit is used where the engine, pump model, or parts diagram calls for Sherwood 17000K-SHW, 17000K, or the internal impeller reference 17000A.
-
Key Features
- Genuine Sherwood/Pentair-style raw-water pump impeller kit.
- Part number: 17000K-SHW.
- Internal impeller reference: 17000A.
- Flexible neoprene impeller for raw-water cooling service.
- 12-blade impeller design.
- Supplied as a service kit with key pump-wear components.
- Designed for compatible Sherwood bronze raw-water pump bodies.
- Includes drive key and sealing components for proper pump reassembly.
- Internal threaded core supports mechanical puller removal using compatible Sherwood-style tooling.

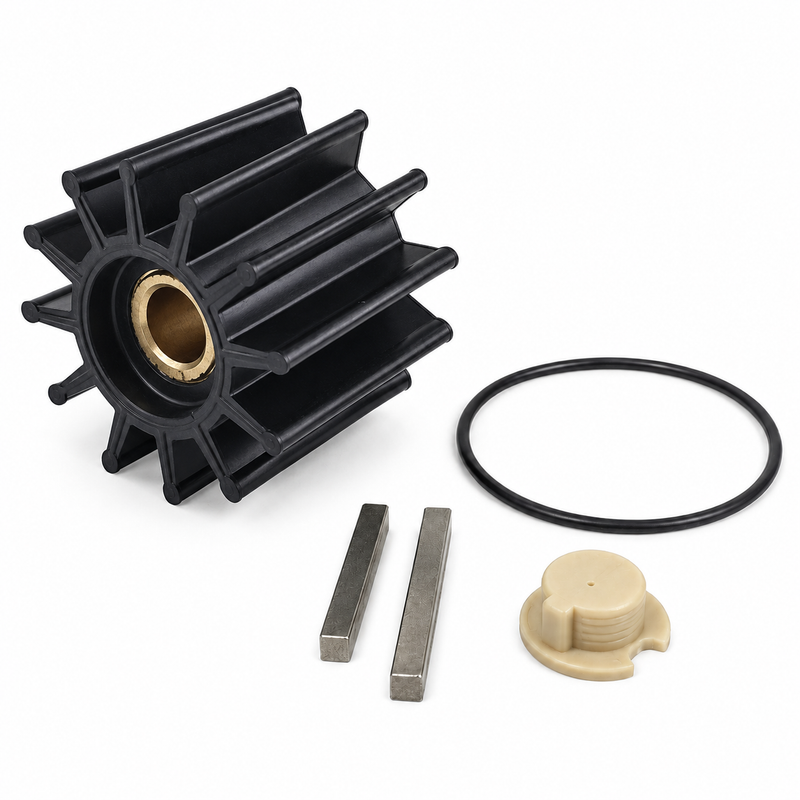

Kit Contents
- 1 neoprene 12-blade impeller
- 1 pump cover O-ring
- 1 protective end cap / rubber plug
- 1 3/16 in. drive key
- 1 factory-style technical installation guide
Technical Specifications
- Impeller outside diameter: 3-5/16 in. / 84 mm
- Impeller depth / width: 2-7/8 in. / 73 mm
- Shaft fitment: 20 mm, approximately 3/4 in. ID
- Blade count: 12
- Impeller material: neoprene
- Drive style: keyed drive
- Drive key reference: 3/16 in.
- Removal thread reference: 3/4 in.-16 internal thread
- Compatible removal tool reference: Sherwood 25105 impeller puller/tool, where applicable
Pump Compatibility
This kit is intended for Sherwood raw-water pump applications that specify 17000K-SHW, 17000K, or 17000A impeller service components.
Confirm compatibility by:
- Sherwood pump model number.
- Existing impeller dimensions.
- Shaft diameter.
- Drive key size.
- Pump cover sealing style.
- Engine raw-water pump parts diagram.
- OEM service manual or pump tag.
Do not rely on engine brand alone. The same engine family may have different raw-water pumps depending on model year, marinizer, cooling layout, or prior pump replacement history.
Fitment Notice
Verify the pump model and old impeller before ordering. The correct impeller must match the pump cavity diameter, impeller depth, shaft size, keyway, cover seal, and drive configuration. An incorrect impeller can reduce raw-water flow, damage the pump body, overload the pump shaft, or cause engine overheating.
When This Part Needs Replacement
Replace the impeller if blades are cracked, hardened, swollen, missing, permanently bent, heat-damaged, or worn at the hub. Replacement is also recommended during annual cooling-system service, after running the pump dry, after overheating, when water flow is reduced, or whenever the pump cover is removed and the impeller condition is uncertain.
Inspect the pump cover, cam, wear plate, shaft seal area, and cover O-ring during service. Damaged or grooved pump surfaces can shorten new impeller life.
Installation Notes
Close the seacock or isolate the raw-water supply before opening the pump. Remove the pump cover and old impeller carefully. If the impeller is stuck in the bronze pump body, use the correct puller method rather than prying against the housing. The internal core is designed to support a compatible 3/4 in.-16 mechanical removal tool such as the Sherwood 25105 style puller.
Lubricate the new impeller with an approved impeller lubricant or clean soapy water before installation. Align the keyway, install the supplied drive key, and rotate the impeller in the normal pump direction as it enters the cavity. Replace the cover O-ring, reinstall the cover evenly, reopen the seacock, and confirm strong raw-water discharge after startup.
Do not run a flexible impeller pump dry. Even brief dry running can damage neoprene blades.
Alternate / Superseded Part Numbers
- Sherwood 17000K-SHW — factory-packaged kit reference
- Sherwood 17000K — common kit reference
- Sherwood 17000A — internal impeller reference
- 17000K SHW — alternate formatting
- 17000K-SHW Neoprene Impeller Kit — common product description
- Sherwood 25105 — related removal tool reference; not included unless specified
Parts Desk Insight
The impeller is the heart of the raw-water cooling pump. On a marine engine, a worn or dry-run impeller can quickly reduce cooling water flow and lead to overheating. For best reliability, replace the impeller on a regular service schedule, confirm the pump cavity is clean and smooth, and keep the old impeller blades accounted for if any pieces are missing.
