NOCO Genius Boost HD GB70 Jump Starter, 2000A

NOCO Genius Boost HD Jump Starter – GB70

Product Description

The NOCO Genius Boost HD GB70 is a compact 12-volt lithium-ion jump starter designed for cars, trucks, boats, RVs and commercial equipment. Its 2,000-amp peak output can jump-start petrol engines up to 8.0 litres and diesel engines up to 6.0 litres, while the 56Wh internal battery can provide up to 40 jump starts on a single charge under suitable conditions. Spark-proof connections, reverse-polarity protection, heavy-duty battery clamps and an IP65-rated enclosure make the GB70 well suited to vehicle, marine and emergency-use applications.

Key Features

• 2,000-amp peak jump-starting output
• Suitable for 12-volt lead-acid batteries
• Rated for petrol engines up to 8.0 litres
• Rated for diesel engines up to 6.0 litres
• Up to 40 jump starts per charge under suitable conditions
• 56Wh internal lithium-ion battery
• Spark-proof connection technology
• Reverse-polarity protection
• Heavy-duty integrated battery clamps
• IP65 water- and dust-resistant housing with ports closed
• 400-lumen LED flashlight with seven operating modes
• USB power-bank output for phones and other devices
• 12-volt, 15-amp accessory output
• One-year limited manufacturer warranty

Application Compatibility

The GB70 is intended for 12-volt lead-acid starting batteries used in:

• Cars and SUVs
• Pickup trucks
• Vans
• Boats and marine engines
• Motorhomes and recreational vehicles
• Commercial and service vehicles
• Petrol engines up to 8.0 litres
• Diesel engines up to 6.0 litres

It may be used with flooded, maintenance-free, AGM and other compatible 12-volt lead-acid starting batteries. It is not intended to jump-start 24-volt electrical systems or lithium starting batteries unless their manufacturer specifically approves external jump starting with this type of device.

Technical Specifications

• Manufacturer: NOCO
• Product family: Genius Boost HD
• Model number: GB70
• Battery-system voltage: 12 volts
• Peak starting current: 2,000 amps
• Internal battery: 56Wh lithium-ion
• Petrol-engine rating: Up to 8.0 litres
• Diesel-engine rating: Up to 6.0 litres
• USB input: 5V, 2.1A maximum
• USB output: 5V, 2.1A maximum
• XGC charging input: 12V, 3A
• XGC accessory output: 12V, 15A
• Flashlight output: 400 lumens
• Housing protection: IP65 with ports closed
• Cooling: Natural convection

Integrated LED Flashlight

The built-in 400-lumen LED flashlight provides seven selectable operating modes:

• 100% brightness
• 50% brightness
• 10% brightness
• SOS
• Blink
• Strobe
• Off

The emergency signalling modes make the GB70 useful for roadside, marine and low-light emergency situations.

Portable Power Functions

In addition to jump starting, the GB70 can serve as a portable power source.

USB Power Bank

The 5V, 2.1A USB output can recharge compatible devices such as smartphones, tablets, GPS units, cameras and handheld electronics.

12-Volt Accessory Output

The included female 12-volt adaptor allows the GB70 to power compatible 12-volt accessories drawing up to 15 amps, including tyre inflators, portable coolers, work lights, small pumps and vacuums. Confirm that the connected accessory does not exceed the GB70’s 15-amp output limit.

Charging Options

The GB70 can be recharged through a USB power source at up to 5V/2.1A, the 12-volt XGC input at up to 3A, or a compatible NOCO XGC vehicle charging accessory. Using the 12-volt XGC fast-charge input can recharge the unit in approximately three hours under appropriate conditions.

Safety Protection

The GB70 incorporates NOCO UltraSafe protection, including:

• Spark-proof battery connections
• Reverse-polarity detection
• Over-temperature protection
• Battery connection error indication
• Automatic battery-voltage detection
• Insulated heavy-duty clamps

A red error light indicates reverse polarity. A flashing error light can indicate that the internal battery is too hot for operation.

Manual Override Mode

The GB70 normally detects the connected battery before enabling its boost output. If the battery voltage has fallen below approximately 2 volts, the unit may not detect it automatically. Manual Override can force the jump-start output on for an extremely discharged battery. This mode disables the normal spark-proof and reverse-polarity safety protections and should only be used by someone who has positively identified the battery terminals and understands the risks.

Dimensions and Weight

• Height: 5.98 inches / 152 mm
• Width: 8.74 inches / 222 mm
• Depth: 2.76 inches / 70 mm
• Weight: 4.18 lb / 1.9 kg

Specifications can vary slightly between production revisions and packaging references.

Fitment Notice

The GB70 is intended exclusively for compatible 12-volt lead-acid battery systems. Before use, confirm:

• The battery is a 12-volt lead-acid battery
• The engine does not exceed the stated displacement rating
• The battery terminals are correctly identified
• The cables and clamps are undamaged
• The vehicle or engine manufacturer permits conventional jump starting
• The unit has sufficient internal charge

Engine displacement is only one factor affecting starting requirements. Cold temperature, battery condition, engine compression, oil viscosity and electrical-system condition can all affect jump-starting performance.

Operating Notes

For normal jump starting:

1. Connect the red clamp to the positive battery terminal.
2. Connect the black clamp to the negative battery terminal or approved engine ground.
3. Turn the GB70 on.
4. Start the engine according to the vehicle or engine manufacturer’s instructions.
5. Turn the GB70 off and disconnect the clamps after the engine starts.

Do not crank the engine continuously for extended periods. Allow the jump starter to cool between unsuccessful attempts and investigate the battery, starter or engine if repeated attempts are required.

Marine Use Notes

The GB70 can be used for emergency jump starting aboard boats with compatible 12-volt lead-acid starting batteries. Store it in a dry, accessible location and keep all charging-port covers securely closed when exposed to a marine environment. Although the housing is rated IP65 with the ports closed, the unit is not intended for submersion. Do not operate it near fuel vapours, leaking batteries or an explosive atmosphere.

When This Product Needs Replacement

Inspect or replace the jump starter if:

• It no longer holds a useful charge
• It cannot start engines within its rated range despite being fully charged
• The battery case is swollen, cracked or distorted
• The clamps or cables are damaged or badly corroded
• The charging ports are loose or damaged
• The unit has been submerged
• It becomes unusually hot during charging or storage
• It produces smoke, odour or visible leakage
• The internal battery has reached the end of its service life

Do not open or attempt to replace the internal lithium-ion cells unless the procedure is specifically authorised by NOCO.

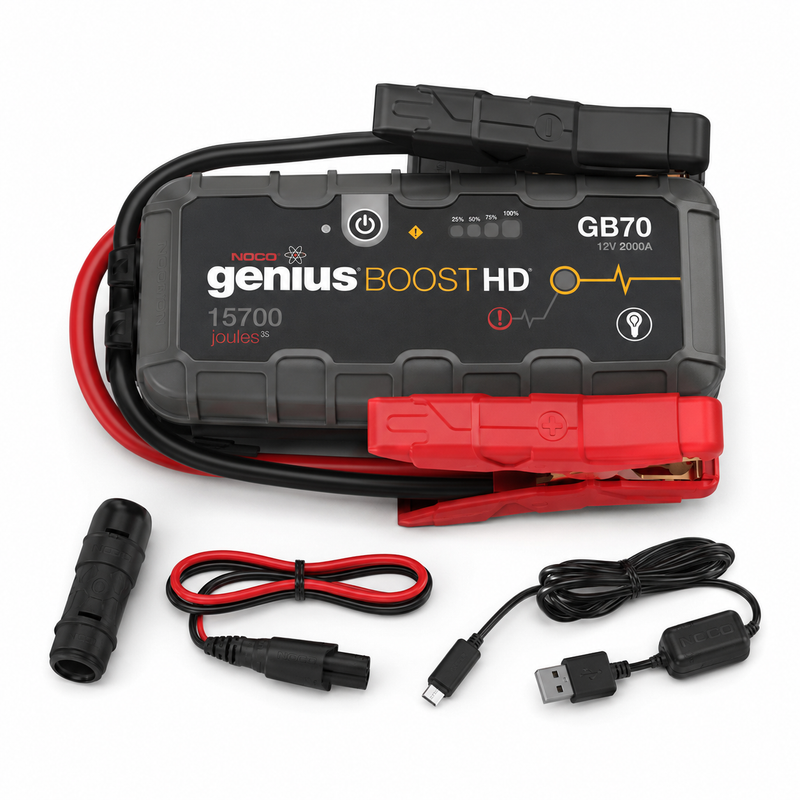

Included Components

• NOCO Genius Boost HD GB70 jump starter
• Integrated heavy-duty battery clamps
• XGC 12-volt male adaptor
• 12-volt female accessory adaptor
• XGC extension cable
• USB-C charging cable
• Microfibre storage bag
• Safety and warranty information

Included charging cables may vary with the production version or market, so verify current package contents when replacing an older GB70.

Alternate Part Numbers

• Manufacturer model: GB70
• Product name: NOCO Genius Boost HD GB70
• Common reference: Boost HD GB70
• Distributor SKU: 589-GB70

Related Products

• NOCO GBX55 Boost X Jump Starter, 1750A – Compact alternative for smaller engines
• NOCO GBX75 Boost X Jump Starter, 2500A – Higher-output alternative
• NOCO GBX155 Boost X Jump Starter, 4250A – Heavy-duty diesel and large-engine option
• NOCO AIR15 Portable Air Compressor, 15A 80PSI – Compatible 12V accessory via GB70 output
• NOCO AIR20 Portable Air Compressor, 20A 100PSI – Compatible 12V accessory via GB70 output

Parts Desk Insight

The GB70 is a strong choice for larger petrol engines and medium-duty diesel applications where a compact emergency starter is preferred over carrying conventional booster cables. Keep it charged, store it where it can be reached without opening an electrically locked compartment, and test its state of charge regularly rather than waiting for a starting emergency.
