OceanLED Explore E6 Thru-Hull Underwater Light — 6,000 Lumen RGBW Multi-Color DMX | E6TH009CD
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.

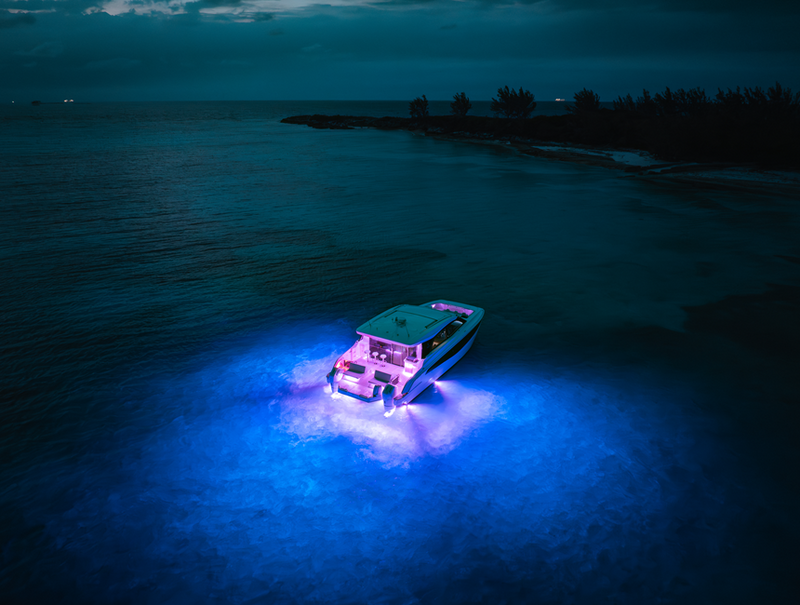

The OceanLED Explore E6 is a compact thru-hull underwater light engineered for larger vessels where output, colour control and installation flexibility are priorities. Delivering 6,000 lumens of RGBW multi-colour light through advanced optics, the E6 produces a focused side beam that drives a blade of illumination deep into the water column — creating the vivid underwater glow effect that attracts fish and transforms a vessel’s appearance at anchor or at the dock. The aluminium bronze body is built for permanent thru-hull installation on transoms or angled hulls, and the compact external driver simplifies wiring in tight spaces.
Key Features
- 6,000 lumens RGBW multi-colour output
- Advanced optics: 90° top beam / 20° focused side beam — rectangular blade of light penetrates further into the water
- Full-colour RGBW with DMX control compatibility
- Fish strobe mode for attracting baitfish and game fish
- Compact thru-hull design — suitable for transoms and angled hulls
- Body: AB2 aluminium bronze — corrosion-resistant for permanent marine installation
- IP69K rated — temporary rear submersion protection
- Small external driver with built-in LED status indicator
- Control via switch or optional lighting controller
- Recommended for vessels 65 ft (20 m) and above
- Weight: 2,495 g / 5.5 lb
Intended Use
Designed for permanent thru-hull installation on larger yachts, sportfishers and motoryachts where a high-output underwater light is required. The RGBW colour mixing and DMX compatibility make it suitable for vessels with integrated lighting control systems, while the fish strobe mode adds practical utility for offshore and bluewater fishing applications.
Fitment Notice
This light is designed for thru-hull installation and requires a suitable hull penetration. The compact body accommodates transoms and angled hull sections where surface-mount or flush-mount lights cannot be used. Confirm hull thickness, transom angle and available interior space for the external driver before ordering. OceanLED recommends this fixture for vessels 65 ft (20 m) and above. DMX control requires a compatible DMX lighting controller (sold separately). For a higher-output option in the same Explore E6 thru-hull family, see the OceanLED E6TH009BW Explore E6 — 11,000 Lumen Dual Blue/White.
Installation and Use Notes
Install according to the OceanLED installation guide supplied with the fixture. The external driver should be mounted in a dry, ventilated location within the recommended cable run distance. Connect to a dedicated circuit with appropriate fusing. Use the built-in LED indicator on the driver to confirm operational status. Rinse the exterior of the light with fresh water periodically and inspect the thru-hull seal annually.
Alternate/Superseded Part Numbers
- Part number: 812-E6TH009CD
- OceanLED model: E6TH009CD
- Brand: OceanLED
- Output: 6,000 lumens, RGBW multi-colour
- Control: Switch or DMX
- Body material: AB2 aluminium bronze
- IP rating: IP69K
- Recommended vessel size: 65 ft (20 m) and above
- Weight: 2,495 g / 5.5 lb
Compatible & Related Products
Parts Desk Insight
This is the right light for a customer who wants full RGBW colour control and DMX integration on a larger vessel — the 6,000-lumen output and focused side beam make it well suited to sportfishers and motoryachts where fish attraction and dock presence are both priorities. If the customer only needs blue/white output and wants maximum raw output, the E6TH009BW at 11,000 lumens is the stronger performer. Confirm DMX controller compatibility before ordering if the customer plans to integrate with an existing lighting system — the controller is not included.
