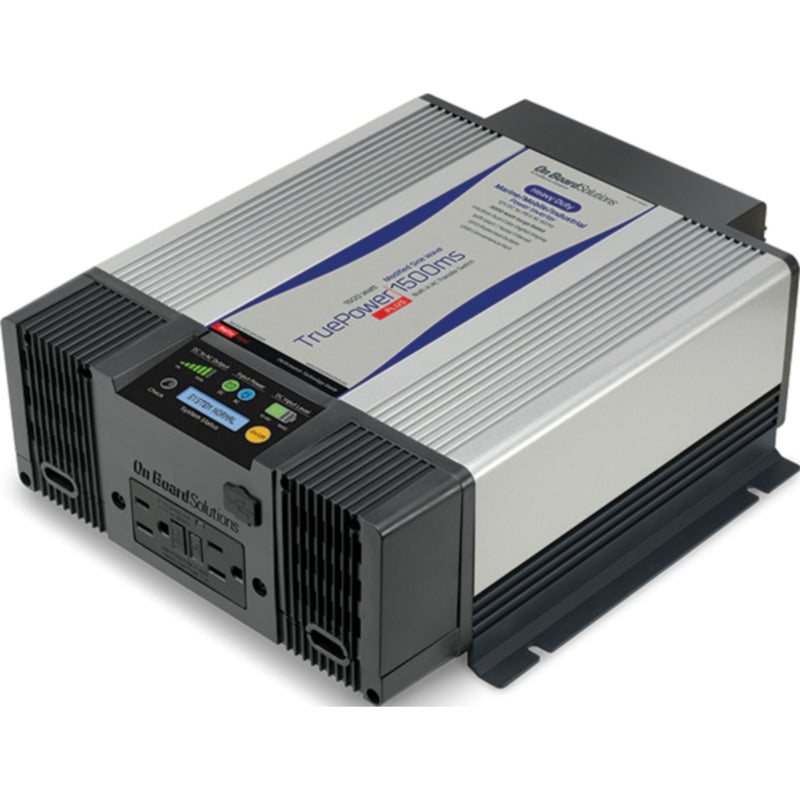

ProMariner TruePower Plus 1500MS Modified Sine Wave Inverter – 06150

Product Description

The ProMariner TruePower Plus 1500MS converts power from a nominal 12-volt battery bank into 115-volt modified sine wave AC power for common onboard and mobile appliances. It delivers 1,500 watts of continuous output and up to 3,000 watts of surge capacity, with an integrated 30-amp transfer switch that automatically passes shore or generator power through to the connected AC circuits when an acceptable external source is available. ProMariner identifies suitable loads including smartphones, laptops, coffee makers and electric grills.

Key Features

• 1,500 watts of continuous AC output
• Up to 3,000 watts of surge capacity
• Converts 12-volt DC battery power to 115-volt AC power
• Modified sine wave output for compatible appliances and equipment
• Integrated 30-amp automatic AC transfer switch
• Dual-colour digital LCD message centre
• Separate gauges for AC output load and DC battery input
• USB charging port
• Dual GFCI-protected convenience outlets
• Soft-start, noise-filtered power technology
• Included remote on/off panel with LED indicators
• Nine-foot remote cable included
• Shock-resistant construction
• Conformal-coated internal electronics
• Two-year manufacturer warranty

Application Compatibility

The TruePower Plus 1500MS is intended for nominal 12-volt systems in applications such as:

• Recreational and commercial boats
• Motorhomes and travel trailers
• Mobile service vehicles
• Commercial trucks
• Remote and off-grid power systems
• Industrial and specialty vehicles

Compatible loads may include:

• Coffee makers
• Electric grills
• Laptops
• Mobile-device chargers
• Televisions
• Lighting
• Small kitchen appliances
• Conventional power tools

The combined continuous demand must remain within the inverter’s 1,500-watt rating, and appliance startup demand must remain within its 3,000-watt surge capacity.

Electrical Specifications

• Nominal DC input voltage: 12 volts
• Continuous AC output: 1,500 watts
• Surge output: 3,000 watts
• AC output voltage: 115 volts nominal
• Output waveform: Modified sine wave
• Automatic AC transfer-switch rating: 30 amps
• AC receptacles: Two duplex GFCI outlets
• DC connection: Hardwired
• USB charging port: Included
• Remote on/off connection: Included
• Manufacturer part number: 06150
• UPC: 031669061507

Display and Remote Control

The front display provides operating information through:

• Dual-colour digital messages
• AC output-load indication
• DC battery-input indication
• Low- and high-voltage warnings
• Overload warnings
• Over-temperature warnings
• Fault and shutdown notifications

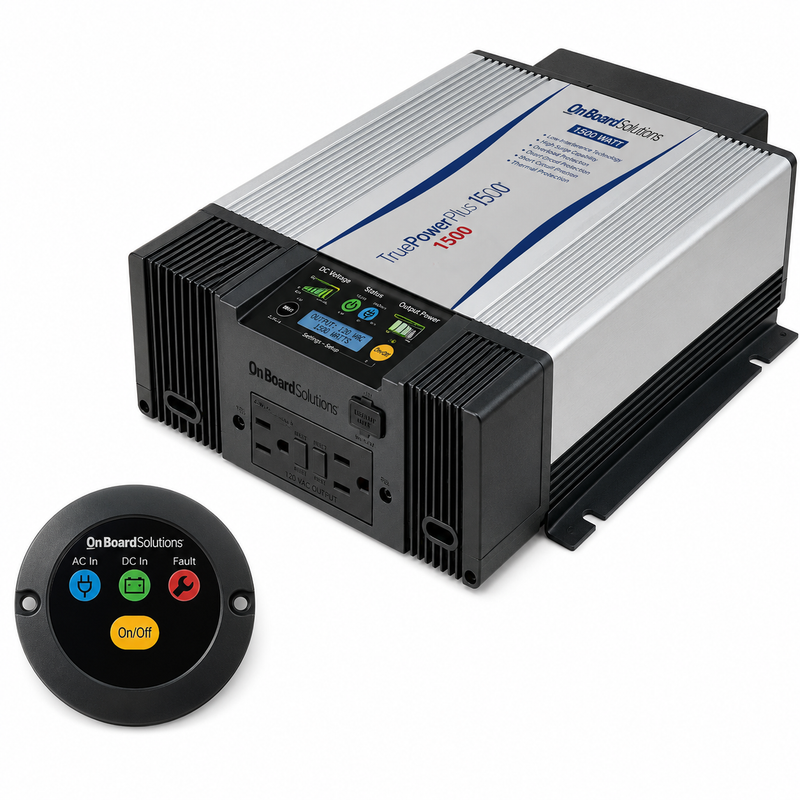

The included remote panel allows the inverter to be switched on or off from a more accessible location and provides basic operating and fault-status indication.

Built-In Protection

The TruePower Plus 1500MS includes protection against:

• AC output overload
• Short circuits
• Excessive operating temperature
• Low DC battery voltage
• High DC battery voltage
• Reverse-polarity connection
• Abnormal operating conditions requiring an audible alarm or shutdown

Reverse-polarity protection does not eliminate the need to verify battery-cable polarity before making the final connection.

Dimensions and Weight

• Approximate packaged dimensions: 7 × 12 × 15 inches
• Approximate packaged weight: 9.6 lb

Verify the available mounting space and required ventilation clearances against the current installation manual before installation.

Fitment Notice

Part number 06150 is the 1,500-watt modified sine wave version of the ProMariner TruePower Plus inverter. It is designed for a nominal 12-volt battery bank and must not be connected to a 24-volt or 48-volt system.

This model is an inverter with automatic AC pass-through. It does not contain a battery charger.

Modified sine wave power is not appropriate for every appliance. Equipment that may require pure sine wave power includes:

• Variable-speed motors
• Induction motors
• Certain refrigeration equipment
• Digital clocks and timers
• Medical equipment
• Electronically controlled appliances
• Some battery chargers
• Sensitive audio and video equipment

ProMariner states that pure sine wave models are better suited to digital electronics and induction motors. Confirm waveform compatibility with the appliance manufacturer before connecting sensitive equipment.

Battery-Bank Requirements

At full output, a 1,500-watt inverter may draw approximately 140 amps or more from a 12-volt battery bank after conversion losses are considered. The electrical system must therefore include:

• Adequate battery capacity
• Correctly sized marine-grade DC conductors
• Short battery-cable runs
• Properly rated overcurrent protection
• A suitable battery disconnect switch
• Secure, corrosion-free terminals

Runtime depends on battery chemistry, usable capacity, battery condition, appliance load and permitted depth of discharge.

Installation Notes

Install the inverter in a dry, ventilated compartment protected from:

• Direct spray or bilge water
• Battery gases
• Fuel vapours
• Excessive heat
• Loose equipment and physical damage

Use properly sized marine-grade conductors and keep the DC cable run as short as practical. All DC studs and cable hardware must be securely tightened, and the DC cables must be supported with suitable strain relief.

The automatic transfer switch passes external shore or generator power through to the connected AC circuits when an acceptable source is detected. AC input, output, grounding and branch-circuit protection must follow the current ProMariner manual and applicable marine electrical standards.

When This Product Needs Replacement

Inspect or replace the inverter if it:

• Repeatedly shuts down under loads it previously operated
• No longer produces stable AC output
• Fails to pass shore or generator power through correctly
• Displays recurring overload or temperature faults
• Has damaged GFCI outlets or DC terminals
• Shows heat damage, moisture intrusion or corrosion
• Produces unusual noise, odour or excessive heat
• Stops communicating with the remote panel

Before replacing the inverter, load-test the battery bank and inspect the DC fuse, disconnect switch, cable terminals, grounding and voltage drop.

Included Components

• TruePower Plus 1500MS inverter
• Remote on/off panel
• Nine-foot remote cable
• DC terminal covers
• Integrated AC cable strain reliefs

Alternate Part Numbers

• ProMariner manufacturer part number: 06150
• Unpadded catalogue reference: 6150
• Model name: TruePower Plus 1500MS
• UPC: 031669061507

Parts Desk Insight

The TruePower Plus 1500MS is a practical choice for conventional resistive loads and less-sensitive appliances where the cost of a pure sine wave inverter is not justified. For refrigeration, variable-speed equipment, induction motors or sensitive electronics, select a pure sine wave model instead.
