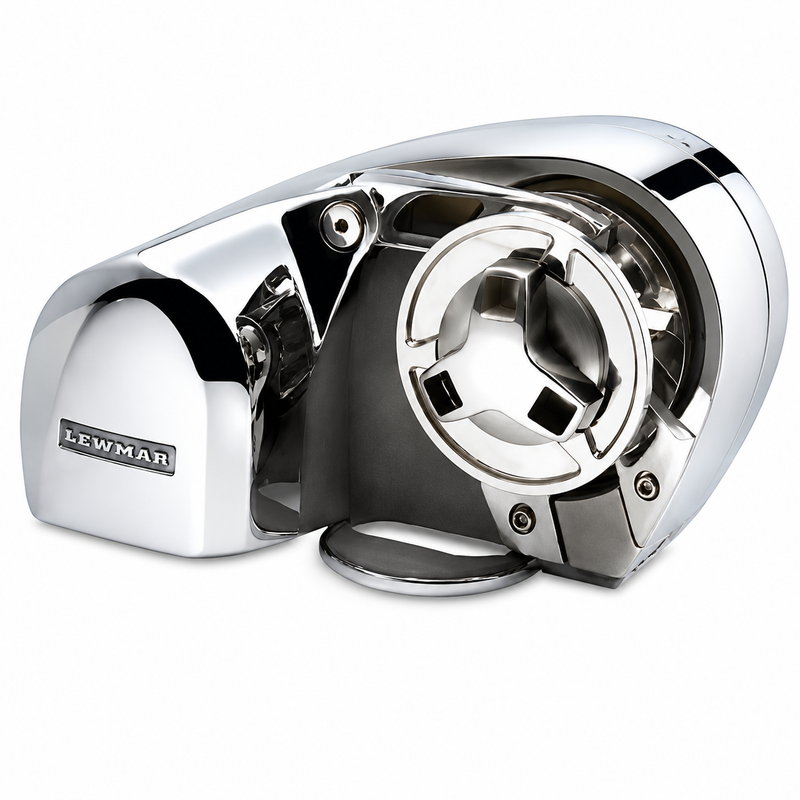

Lewmar Pro Series 1000H Horizontal SS Windlass
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
-
The Lewmar Pro-Series 1000H is a horizontal stainless steel rope-and-chain anchor windlass for boats approximately 27 to 38 feet in length. Part number 6657011108-102 is configured for 5/16" G4 high-test chain with compatible nylon rope rode, making it suitable for common cruising, fishing, and light commercial anchoring setups. This Pro-Series model provides powered retrieval and powered deployment, with a compact deck-mounted design, polished stainless construction, and an emergency manual recovery feature for backup operation.
Key Features
- Lewmar part number: 6657011108-102
- Model: Pro-Series 1000H
- Windlass type: Horizontal rope/chain windlass
- Boat size range: Approximately 27' to 38' LOA
- Voltage: 12V DC
- Motor rating: 700W permanent magnet motor
- Maximum pulling force: 1,000 lb / 454 kg
- Maximum working load: 250 lb / 113 kg
- Maximum line speed: Approximately 88 to 105 ft/min depending on load and rode configuration
- Gypsy size: 5/16" G4 high-test chain
- Rope compatibility: 9/16" to 5/8" 3-strand nylon or 5/8" 8-plait nylon rope
- Typical breaker requirement: 70A circuit breaker
- Typical current draw: Approximately 50A under normal operating load
- Construction: Mirror-polished marine-grade 316 stainless steel
- Manual backup: Emergency manual operation using a standard 1/2" socket ratchet
Product Compatibility
This windlass is intended for boats requiring a compact horizontal windlass compatible with 5/16" G4 high-test chain and matching nylon rope rode. It is commonly used on cruising boats, fishing boats, and small-to-mid-size yachts where the anchor locker, bow roller, deck thickness, wiring, and rode fall are suitable for a horizontal rope/chain windlass.
The Pro-Series 1000H is best suited for installations where controlled powered deployment and powered retrieval are preferred over automatic free-fall anchoring.
Fitment Notice
Confirm the complete anchor system before ordering. Windlass fitment depends on boat length and displacement, anchor size, chain type, rope size, bow roller alignment, deck thickness, anchor locker depth, rode fall, wiring gauge, circuit protection, and available mounting space.
This model uses a 5/16" G4 HT chain gypsy. Do not assume all 5/16" chain will work. Chain grade, link dimensions, and rope splice quality must match the gypsy requirements for reliable feeding.
Pro-Series vs. Pro-Fish
The Pro-Series 1000H uses standard powered up and powered down operation. The motor drives the anchor both down and back up, giving controlled deployment from the helm or deck switch.
The Pro-Fish 1000 is the related free-fall version. It uses an automatic free-fall mechanism that allows the anchor to drop quickly by gravity, then re-engages for powered retrieval. The Pro-Fish version is often preferred by anglers who need fast anchor drops over fishing structure.
These models may look similar and share related stainless construction, but the deployment method is different. Confirm whether the boat needs controlled power-down or free-fall operation before selecting a model.
When This Product Needs Replacement
Replace or upgrade the windlass if the existing unit slips on the rode, fails to retrieve under load, has a worn gypsy, corroded housing, weak motor, damaged gearbox, unreliable solenoid operation, or no longer matches the vessel’s anchor and rode setup. Replacement may also be appropriate when converting from manual anchoring to powered anchoring, changing chain size, or refitting the bow and anchor locker.
Inspect the rode, chain, splice, bow roller, deck switches, breaker, wiring, solenoid, and mounting hardware before assuming the windlass alone is the problem.
Installation Notes
Install the windlass on a strong, flat, properly supported deck surface with correct alignment to the bow roller and anchor locker. The rode must fall freely into the locker without piling up under the gypsy. Poor rode fall can cause feeding problems even when the windlass is correctly sized.
Use properly sized marine-grade wiring, circuit protection, terminals, and switchgear for the full current load and cable run length. Follow Lewmar installation instructions for mounting template use, fastener sealing, deck reinforcement, electrical layout, breaker placement, solenoid wiring, rode setup, manual recovery operation, and commissioning.
Do not use the windlass as a cleat. Once anchored, secure the rode with a chain stopper, snubber, or proper deck hardware so the windlass is not carrying the boat’s anchoring load.
Alternate/Superseded Part Numbers
- Lewmar: 6657011108-102
- Model reference: Pro-Series 1000H
- Common description: Lewmar Pro-Series 1000H Horizontal Stainless Steel Windlass
- Gypsy reference: 5/16" G4 high-test chain
- Related model: Lewmar Pro-Fish 1000 free-fall windlass
Parts Desk Insight
The biggest installation issue with windlasses is not the motor size — it is the whole bow system. Chain type, rope size, splice quality, anchor locker depth, and rode fall all need to work together. Before replacing an older unit, confirm the chain specification and locker clearance so the new Pro-Series 1000H feeds smoothly instead of jamming or piling up below deck.
