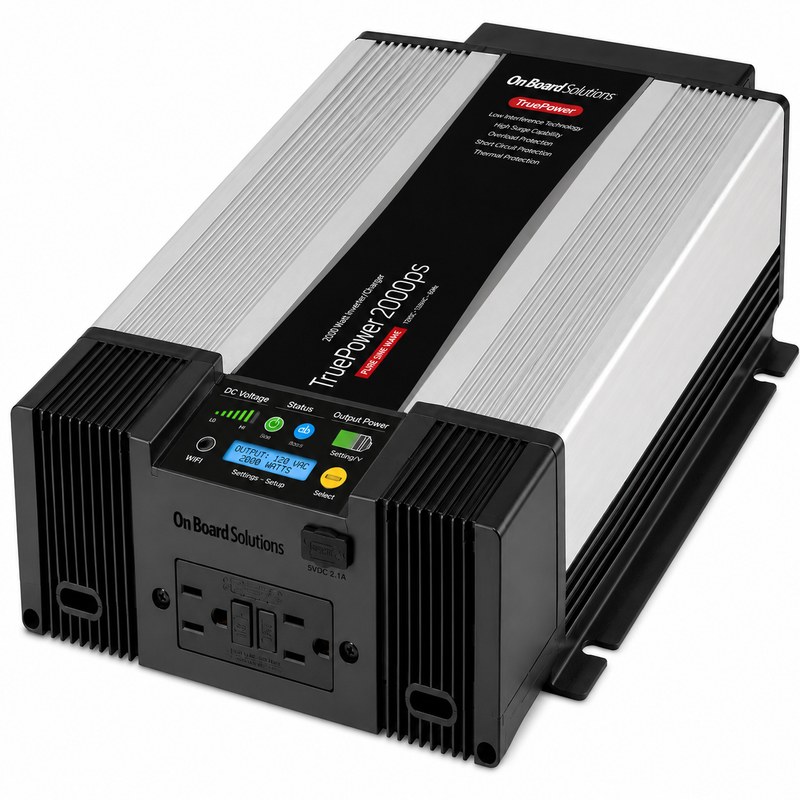

ProMariner 07200 TruePower Plus 2000PS Pure Sine Wave Inverter, 2000W, 12V

The ProMariner TruePower Plus 2000PS is a marine-grade inverter that converts power from a nominal 12-volt battery bank into clean 115-volt pure sine wave AC power. Rated for 2,000 watts of continuous output and 4,000 watts of surge capacity, it is designed to operate sensitive electronics, refrigeration, variable-speed appliances and other onboard equipment that may not perform correctly on modified sine wave power. An internal 30-amp transfer switch automatically passes shore or generator power through to the connected AC circuits when an external source is available.

Key Features

• Produces 2,000 watts of continuous pure sine wave AC power
• Provides up to 4,000 watts of short-duration surge capacity
• Converts 12-volt DC battery power to 115-volt AC power
• Integrated 30-amp automatic AC transfer switch
• Transfers to incoming AC power in less than 30 milliseconds
• Dual-colour digital LCD message centre
• Separate gauges display AC output demand and DC battery input
• Dual GFCI-protected convenience outlets
• Integrated USB charging port
• Soft-start, noise-filtered output for demanding loads
• Includes a remote on/off panel with LED indicators and nine-foot cable
• Conformal-coated internal electronics and shock-resistant construction
• Two-year manufacturer warranty

Application Compatibility

The TruePower Plus 2000PS is designed for nominal 12-volt electrical systems in:

• Recreational and commercial boats
• Motor yachts and cruising vessels
• Recreational vehicles
• Mobile workshops and service vehicles
• Commercial trucks
• Industrial and remote-power systems

Its pure sine wave output is suitable for properly sized equipment such as:

• Refrigerators and freezers
• Washing machines
• High-fidelity audio and video equipment
• Televisions and computers
• Variable-speed motors
• Microwave ovens
• Coffee makers and electric grills
• Battery chargers and communications equipment

The combined continuous load must remain within the inverter’s 2,000-watt rating, and startup demand must remain within its 4,000-watt surge capacity.

Electrical Specifications

• Nominal DC input voltage: 12 volts
• DC input operating range: 11–15 volts
• Continuous AC output: 2,000 watts
• Surge output: 4,000 watts
• AC output voltage: 115 volts
• AC output frequency: 60 Hz
• Output waveform: Pure sine wave
• Optimum efficiency: Greater than 90%
• Internal AC transfer-switch capacity: 30 amps
• AC crossover time: Less than 30 milliseconds
• Inverter-off DC current draw: Approximately 4 mA
• AC outlets: GFCI protected
• USB charging port: Included
• AC connection: Front screw-terminal connections with integrated cable strain reliefs
• DC connection: Hardwired battery cables

Display and Remote Control

The front-mounted display provides an at-a-glance view of operating conditions through:

• Dual-colour digital LCD messages
• AC output-load indication
• DC battery-input indication
• Audible low- and high-voltage warnings
• Overload and over-temperature warnings
• Fault and shutdown messages

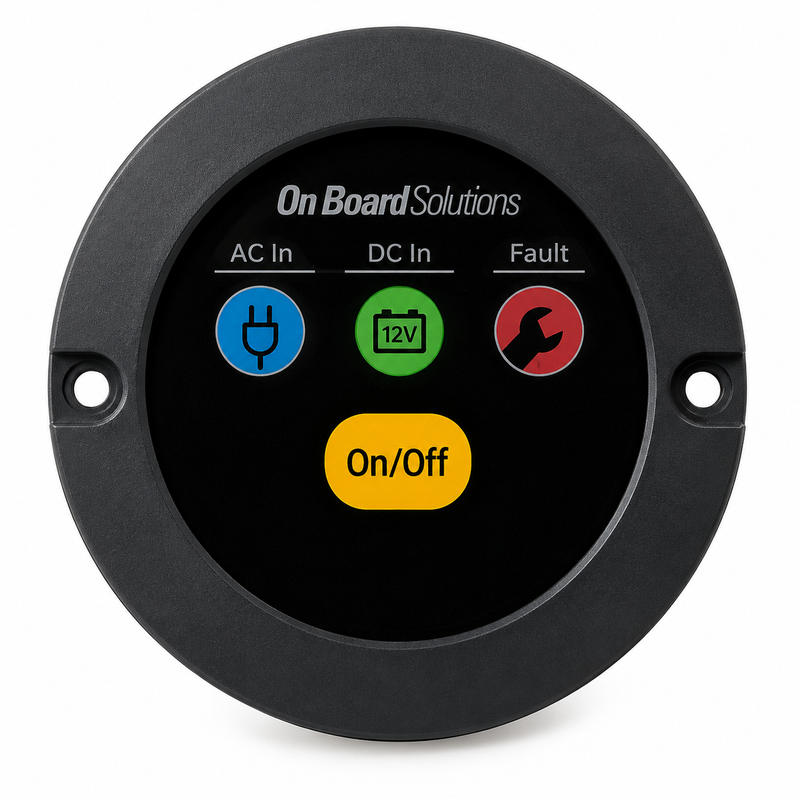

The included remote panel provides inverter on/off control, input-source indication and a fault-status LED. Mounting screws and a nine-foot communication cable are included. Replacement remote part number 07211 is listed for the TruePower Plus series.

Built-In Protection

The TruePower Plus 2000PS includes protection against:

• AC output overload
• Short circuits
• Excessive inverter temperature
• Low DC battery voltage
• High DC battery voltage
• Reverse-polarity connection
• Abnormal operating conditions requiring audible warning and shutdown

Reverse-polarity protection does not eliminate the need to confirm cable polarity before energising the inverter. Incorrect battery connections can still damage wiring, fuses or connected equipment.

Dimensions and Weight

• Height: 4.5 inches
• Width: 10.6 inches
• Length: 15.4 inches
• Product weight: Approximately 8.7 lb
• Shipping dimensions: Approximately 7 × 13 × 18 inches

Fitment Notice

Part number 07200 is the 2,000-watt pure sine wave version of the TruePower Plus inverter and is intended for a nominal 12-volt battery bank. It must not be connected to a 24-volt or 48-volt system.

This unit is an inverter with automatic AC pass-through. It does not contain a battery charger. Customers requiring an inverter and charger in one enclosure should select an appropriately sized inverter/charger instead.

At full output, a 2,000-watt inverter can draw approximately 185 amps or more from a 12-volt battery bank after conversion losses are considered. Battery capacity, DC cable size, fuse rating, battery-switch capacity and connection length must be selected for the actual installation.

Battery-Bank Requirements

ProMariner recommends that the battery bank’s current-output capacity exceed the inverter demand. The manufacturer indicates that a 2,000-watt inverter should generally be supported by at least two Group 31 batteries, although the actual battery-bank size depends on:

• Required runtime
• Battery chemistry
• Permitted depth of discharge
• Appliance load
• Cable length and voltage drop
• Battery age and condition

High-demand or long-runtime installations may require a substantially larger battery bank.

Installation Notes

Install the inverter in a dry, ventilated compartment protected from direct spray, bilge water, excessive heat, battery gases and fuel vapours. Maintain adequate clearance around the enclosure so cooling air can circulate.

Use correctly sized marine-grade DC conductors and keep the battery cables as short as practical. Install properly rated DC overcurrent protection close to the battery bank and use an accessible battery disconnect.

The integrated transfer switch automatically passes external AC power through when shore or generator power is present. Follow the ProMariner installation manual for AC input, AC output, grounding, neutral configuration and branch-circuit protection.

The front screw-terminal blocks and integrated strain reliefs permit hardwired AC installation without requiring ring terminals on the AC conductors.

When This Product Needs Replacement

Inspect or replace the inverter if it:

• Repeatedly shuts down under loads it previously operated
• No longer produces stable 115-volt AC power
• Fails to transfer incoming shore or generator power
• Displays recurring low-voltage, overload or over-temperature faults
• Has damaged GFCI outlets, terminals or communication connections
• Shows evidence of overheating, moisture intrusion or internal corrosion
• Produces unusual odour, noise or heat during operation
• No longer communicates with the included remote panel

Before replacing the inverter, load-test the battery bank and inspect the DC fuse, battery switch, cable terminals, grounding and voltage drop. Weak batteries and undersized conductors can produce symptoms similar to inverter failure.

Included Components

• TruePower Plus 2000PS inverter
• Remote on/off panel
• Nine-foot remote cable
• Remote mounting hardware
• DC terminal covers

Alternate Part Numbers

• ProMariner manufacturer part number: 07200
• Model name: TruePower Plus 2000PS
• Unpadded catalogue reference: 7200
• UPC: 031669072008
• Replacement remote-panel part number: 07211
• Similar modified sine wave model: 06200 — not equivalent

Parts Desk Insight

The 07200 is the pure sine wave model and is the preferred choice for sensitive electronics, refrigeration, audio/video equipment and appliances using electronically controlled or variable-speed motors. Do not confuse it with ProMariner part number 06200, which provides the same 2,000-watt continuous rating but produces modified sine wave power.
