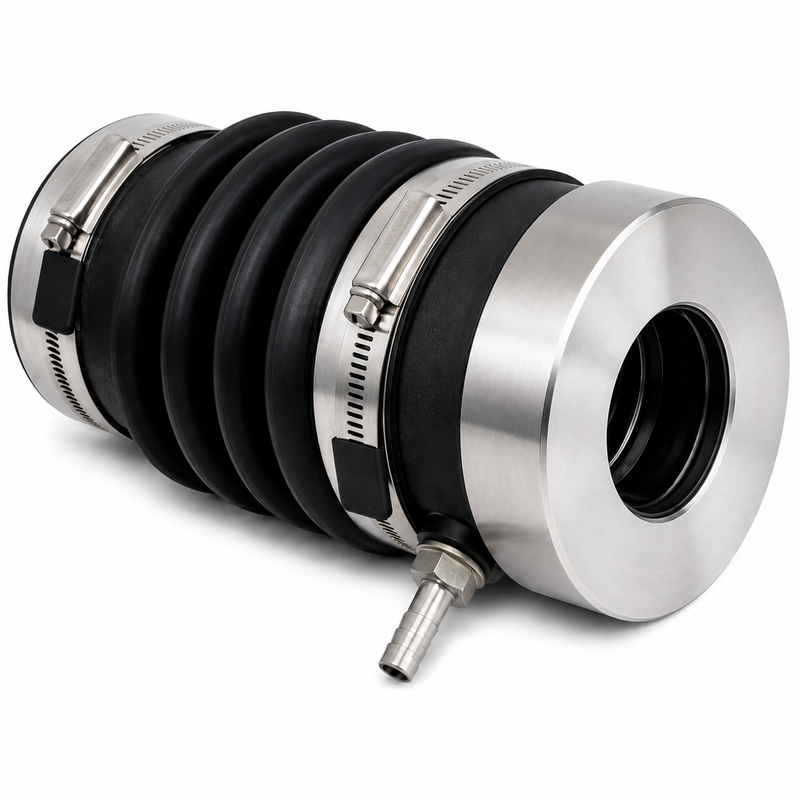

PSS Dripless Shaft Seal — 2-1/2" Shaft × 3-1/2" Stern Tube
The PSS 02-212-312 is a mechanical face-type dripless shaft seal for inboard vessels running a 2-1/2" propeller shaft and a 3-1/2" to 3-5/8" stern tube. A stationary carbon flange presses against a rotating stainless-steel rotor to form a positive seal — no drip, no packing adjustment, no shaft wear from a conventional stuffing box.
Key Specifications
- Shaft diameter: 2-1/2"
- Stern tube (shaft log) OD: 3-1/2" to 3-5/8"
- Seal type: PSS Type A mechanical face seal
- Sealing flange: carbon
- Rotor: stainless steel
- Compression maintained by bellows
- Overall length: approx. 9.625"
- Part number: 02-212-312 / 02212312
Compatible Applications
- Inboard marine propulsion systems with a 2-1/2" propeller shaft
- Stern tubes measuring 3-1/2" to 3-5/8" OD at the bellows connection point
- Both shaft diameter and stern-tube diameter must be confirmed before ordering — do not select by shaft size alone
When to Replace
- Bellows shows aging, cracking, or deterioration (below-waterline component — inspect regularly)
- Sealing faces are damaged or no longer seat correctly
- Leakage develops at the seal interface
- Hose connections, clamps, or rotor set screws show corrosion or looseness
Installation Notes
- Clean and inspect carbon and stainless sealing faces before assembly
- Set bellows compression per PSS specifications for this shaft size
- Position rotor accurately on the shaft and torque hardware to manufacturer spec
- Verify available shaft space against the 9.625" installed length
Alternate & Cross-Reference Part Numbers
- 02-212-312
- 02212312
- 2212312
- Distributor ref: 730-02212312
Other PSS Shaft Seal Sizes
- PSS 02078112 — 7/8" Shaft
- PSS 02100112 — 1" Shaft
- PSS 02114214 — 1-1/4" Shaft
- PSS 02138214 — 1-3/8" Shaft
Parts Desk Insights
The most common ordering mistake with PSS seals is matching only the propeller shaft diameter. For the 02-212-312, the second critical measurement is the stern tube OD — this version fits a 3-1/2" to 3-5/8" tube. Measure both before ordering to avoid a difficult installation mismatch. If you're replacing an existing stuffing box, also confirm you have enough shaft space for the 9.625" installed length before the coupler or cutlass bearing.
