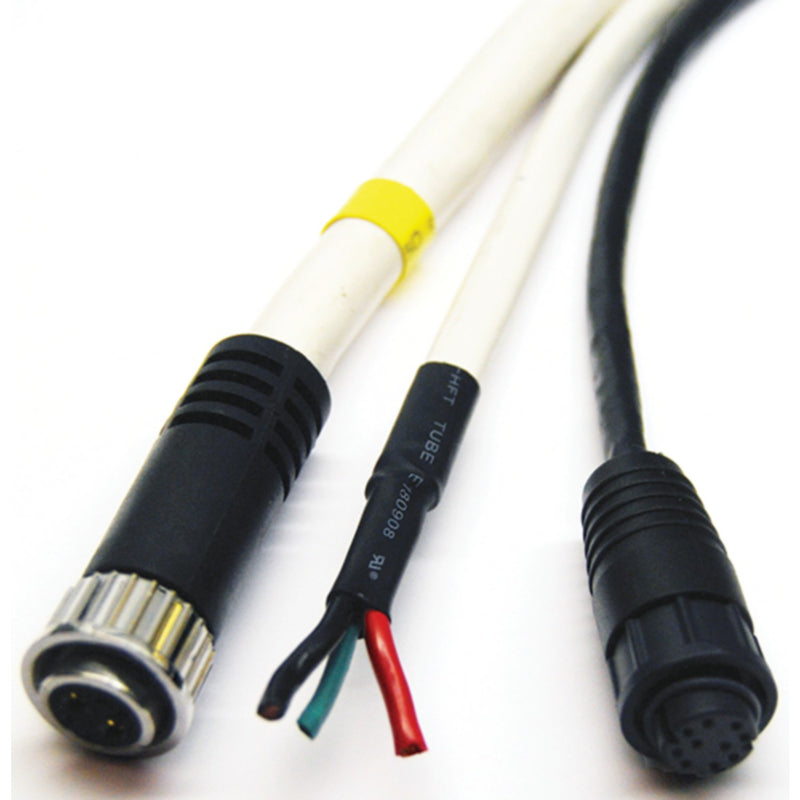

Raymarine Digital Radar Cable — 5 m (16.4 ft)
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
The Raymarine Digital Radar Cable — 5 m is the shorter-run option for connecting Raymarine Digital and HD radar domes to a compatible Raymarine chartplotter or radar interface. Carrying both power and data through a single proprietary cable, it suits installations where the radar dome is mounted close to the helm — such as a low arch on a smaller vessel, a hardtop directly above the helm station, or a flybridge-to-helm run where the distance is under 5 m.
This cable uses Raymarine’s proprietary multi-pin connector and is not interchangeable with the RJ45 Ethernet cable used by Raymarine Quantum series radars. Confirm your radar model and connector type before ordering.
Key Details
- Length: 5 m (16.4 ft)
- Function: Combined power and data connection for Raymarine Digital and HD radar domes
- Connector type: Raymarine proprietary multi-pin (not RJ45/Ethernet)
- Compatible with: Raymarine Digital radar and HD radar dome series
- Not compatible with: Raymarine Quantum or Quantum 2 radar domes (those use a separate Quantum Radar Data Cable)
Choosing the Right Length
The 5 m cable is best suited to compact installations where the dome is mounted directly above or very close to the helm. For most arch-to-helm or mast-to-helm runs on vessels 25 ft and up, the 10 m Digital Radar Cable is the more practical choice and avoids the need for an extension. Measure your intended cable run before ordering — a cable that is too short cannot be easily extended without additional hardware.
Installation Notes
- Route the cable from the radar dome mounting location to the chartplotter or radar interface, keeping bends gradual to protect the connector seals
- If your cable run exceeds 5 m, use the 10 m version rather than attempting to extend this cable
- Verify compatibility with your exact radar dome model number in Raymarine’s installation documentation before purchase
Parts Desk Insights
Best use case: The 5 m cable is the right choice for smaller vessels — typically under 25 ft — where the radar dome is mounted on a low arch or hardtop directly above the helm and the cable run is genuinely short. It’s also used on larger vessels for a second radar position where the dome is close to a secondary display. For the majority of single-station installations on vessels 25 ft and up, the 10 m Digital Radar Cable is the better starting point — excess cable can be coiled and secured, but a cable that is too short requires a return. If you are installing a Raymarine Quantum or Quantum 2 radar, you need the Quantum Radar Data Cable instead — the connector and protocol are different.
