Raymarine EV-200 Mechanical Linear Drive Autopilot — p70Rs — T70158
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.

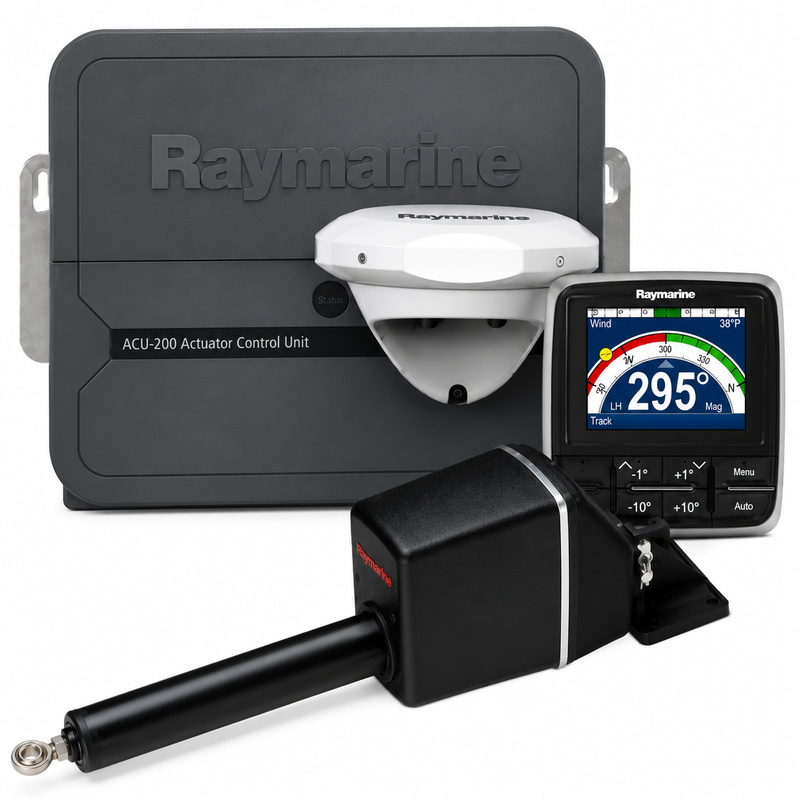

The Raymarine EV-200 Mechanical Linear Drive (T70158) is a complete Evolution autopilot system for power boats and motor yachts with mechanical steering. Everything needed for a full autopilot installation is included in the box: the EV1 Sensor Core, ACU-200 Actuator Control Unit, p70Rs control head, Type 1 Mechanical Linear Drive, and the EV1 cabling kit.
At the heart of the system is the EV1 Sensor Core — a 9-axis solid-state sensor that monitors pitch, roll, yaw and heading simultaneously. Unlike conventional heading sensors, the EV1 requires no compass calibration and can be installed above or below deck, upside-down, or off the vessel’s centreline, giving significant flexibility in tight engine rooms or helm stations.
The included p70Rs control head features a rotary knob interface suited to power-boat operation, with a bright optically bonded display and full LightHouse menu navigation. The ACU-200 drives the Type 1 Mechanical Linear Drive, which connects directly to the vessel’s mechanical steering system.
What’s in the Box
- EV1 Sensor Core (9-axis, pitch/roll/yaw/heading)
- ACU-200 Actuator Control Unit
- p70Rs Control Head
- Type 1 Mechanical Linear Drive
- EV1 Cabling Kit
Key Features
- Complete autopilot system — no additional components required for basic installation
- EV1 9-axis Sensor Core — no compass calibration required
- Flexible sensor placement — above or below deck, any orientation
- Type 1 Mechanical Linear Drive for mechanical steering systems
- p70Rs rotary control head with optically bonded sunlight-readable display
- LightHouse user interface with automatic 3-step setup
- SeaTalkng networking — compatible with NMEA 2000
- Autopilot modes: Auto, Standby, Pattern, Track, Power Steer, Jog Steer
- Raymarine part number: T70158
Related Autopilot Systems
Other Evolution autopilot systems available:
- Raymarine EV-200 Hydraulic Autopilot with p70Rs — T70157 — for hydraulic steering
- Raymarine EV-100 Wheel Pilot with p70s — T70152 — for sailing yachts with wheel steering
- Raymarine EV-100 Power Pilot with p70Rs — T70154
- Raymarine EV-100 Power Pilot with p70Rs & 1.0L Hydraulic Pump — T70330
- Raymarine EV-100 Cockpit Autopilot — Sail
- Raymarine p70s Control Head — Sail — E70328 — standalone sail control head
Parts Desk Insight
The EV-200 Mechanical Linear Drive is the right choice for power boats with mechanical (cable or rack-and-pinion) steering where a hydraulic system is not installed and not planned. If your vessel already has hydraulic steering, the EV-200 Hydraulic (T70157) is the correct system — the linear drive cannot be used with hydraulic steering. For smaller power boats or sailing yachts, the EV-100 family is worth considering before committing to the EV-200 drive capacity. Confirm your steering type and available mounting space for the linear drive before ordering.
