Scanstrut ATMOS Built-In Onboard Air Station (SC-AOB-A2)

Scanstrut ATMOS — Flush-Mount Onboard Inflation System for Boats

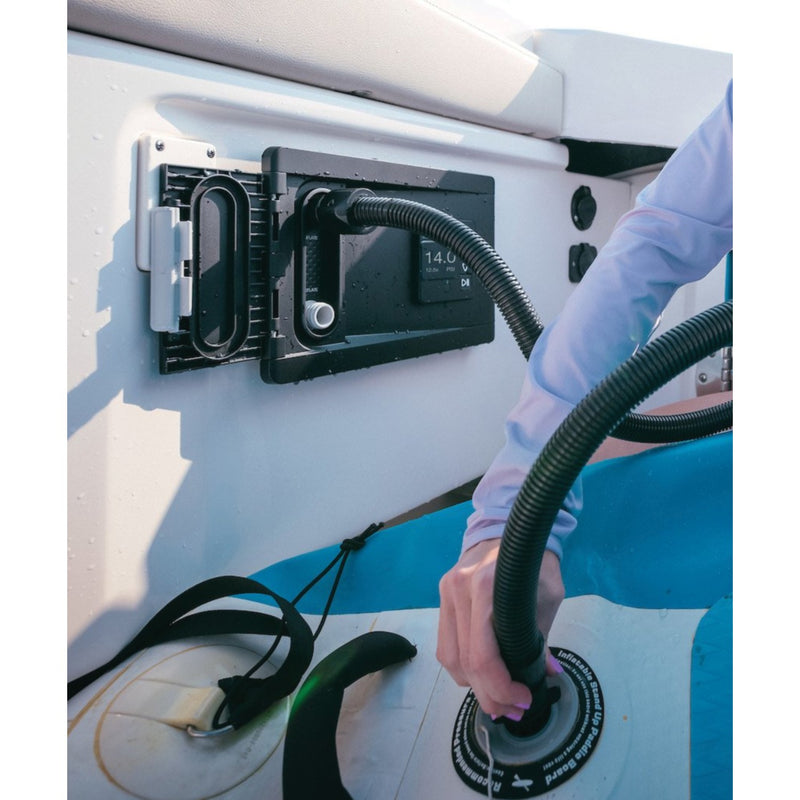

The Scanstrut ATMOS is a permanently installed, waterproof onboard air station designed to live in your boat's console, dashboard, or helm panel. Built to replace the portable compressors and hand pumps that clutter your deck, it inflates and deflates paddleboards, foils, tenders, towables, and other inflatables at the push of a button — with no cables to uncoil and no pump to stow.

The ATMOS uses an innovative two-stage pump: it starts in high-volume, low-pressure (HVLP) mode to fill volume quickly, then automatically shifts to high-pressure, low-volume (HPLV) mode to hit your exact target PSI. Set your target pressure on the backlit LCD display and walk away — the unit stops automatically when it gets there.

Key Features

• Flush-mount, built-in design — installs permanently in console, helm, or any suitable cavity
• Inflate and deflate functions with precise digital pressure control
• Two-stage brushless pump: HVLP for fast fill, HPLV for precise final pressure
• Max pressure: 20 PSI / 1.37 BAR
• Max airflow: 70 LPM / 2.5 CFM (at 1–20 PSI)
• Max current draw: 12 A (140 W) on 12 V DC
• Soft-touch TPE buttons and backlit LCD display
• Waterproof construction — built for the marine environment
• Compact shallow-mount design — minimum cavity depth required: 4.33" (110 mm)
• Can be installed at an angle from +10º to −30º from vertical

In the Box

• 1 × ATMOS unit with black sun cover
• 8 ft. inflation hose
• 6 hose adapters: Boston Valve, C7 Valve, H3/HR Valve, Pinch Valve (2×), 805 Valve

Compatible Applications

• Stand-up paddleboards (SUP) and inflatable foil boards
• Inflatable tenders and dinghies
• Towable tubes and water sports inflatables
• Any inflatable using Boston, C7, H3/HR, Pinch, or 805 valve types
• Vessels with a suitable flush-mount cavity at the helm, console, or dash

Installation Notes

• Minimum cavity depth: 4.33" (110 mm)
• Installation angle: +10º to −30º from vertical
• Connects to 12 V DC vessel power
• Optional white sun cover available separately (SC-AOB-A2-SC1)

Specifications

• Part Number: SC-AOB-A2
• SKU: 922-SCAOBA2
• Max Pressure: 20 PSI / 1.37 BAR
• Max Airflow: 70 LPM / 2.5 CFM
• Max Current Draw: 12 A / 140 W
• System Voltage: 12 V DC
• Min Cavity Depth: 4.33" (110 mm)
• Install Angle: +10º to −30º from vertical
• Weight: 2.5 kg (5.5 lb)

Parts Desk Insights

Best use case: The ATMOS is ideal for boat owners who regularly use inflatables — particularly those who launch a SUP, tender, or foil board frequently and want a clean, permanent solution at the helm rather than dealing with a portable compressor. It's a popular upgrade on pontoons, cruisers, and center-consoles where deck space is limited and convenience matters. The built-in format keeps the deck clear and gives the boat a finished, custom look.

Common questions: Customers often ask about cavity depth — at 4.33" minimum, it fits most helm pads and console panels but measure carefully before ordering. Customers also ask about valve compatibility: the six included adapters cover the most common inflatable types, but confirm your specific valve type before purchasing. The unit draws up to 12 A, so verify your panel circuit can support it. The optional white sun cover (SC-AOB-A2-SC1) is a popular add-on for light-coloured helm panels.
