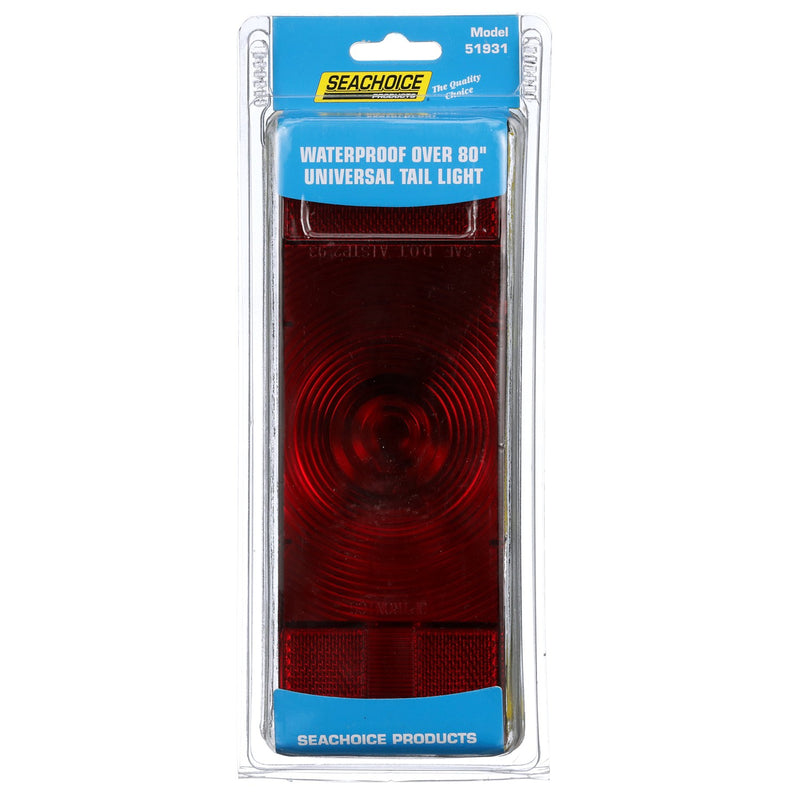

Seachoice Universal Mount Tail Light, 7-Function, Passenger Side — For Trailers Over 80"
A waterproof 7-function tail light for the passenger side (road-right) of boat trailers wider than 80 inches. The low-profile housing is built for marine environments — handling road spray, rain, and launch ramp exposure without corroding. Mounts on a universal 2″ center stud pattern with a separate ground wire and eyelet for flexible grounding to the trailer frame.
The acrylic lens and corrosion-proof plastic housing are designed for long service life, and both the lens and bulbs are replaceable in the field. At 8.063″ × 2.875″ × 2.813″, it matches the dimensions of the companion driver-side light for a consistent look across both sides.
7 Functions
- Stop
- Turn
- Tail
- Rear clearance
- Rear reflex
- Side marker
- Side reflex
Specifications
- Side: Passenger (road-right)
- For trailers over 80″ overall width
- Mount: Universal stud mount on 2″ centers
- Ground: Separate ground wire with eyelet
- Lens: Replaceable acrylic
- Housing: Corrosion-proof plastic
- Dimensions: 8.063″ × 2.875″ × 2.813″
- Meets SAE, DOT, FMVSS, and CMVSS standards when properly installed
Related Products
- Seachoice Universal Mount Combination Tail Light, 8-Function, Driver Side — companion driver-side light
- Seachoice Universal Mount Combination Trailer Light Kit — Driver & Passenger Side — matched pair with harness
- Seachoice 52921 Submersible Trailer Light Set — For Trailers Over 80"
- Seachoice 8-Function Submersible Combination Tail Light — Driver Side, 80"+ Trailers
- Seachoice 7-Function Submersible Combination Tail Light — Passenger Side, 80"+ Trailers
- Seachoice 52991 Passenger Side Trailer Light, 6-Function
- Seachoice Submersible LED Combination Light
- Seachoice Trailer Light, 7-Function, Submersible
Parts Desk Insights
Best Use Case: Best suited as a single-side replacement for the passenger-side tail light on a wide boat trailer — pontoon, tri-toon, or large center console trailers — that exceeds 80 inches in overall width. If both sides need replacing, the matched kit (linked above) includes both lights plus a 25-foot harness and all mounting hardware, which is typically the better value. For trailers that are regularly submerged during launching, consider the submersible options linked above — this light is waterproof but not rated for full immersion.
