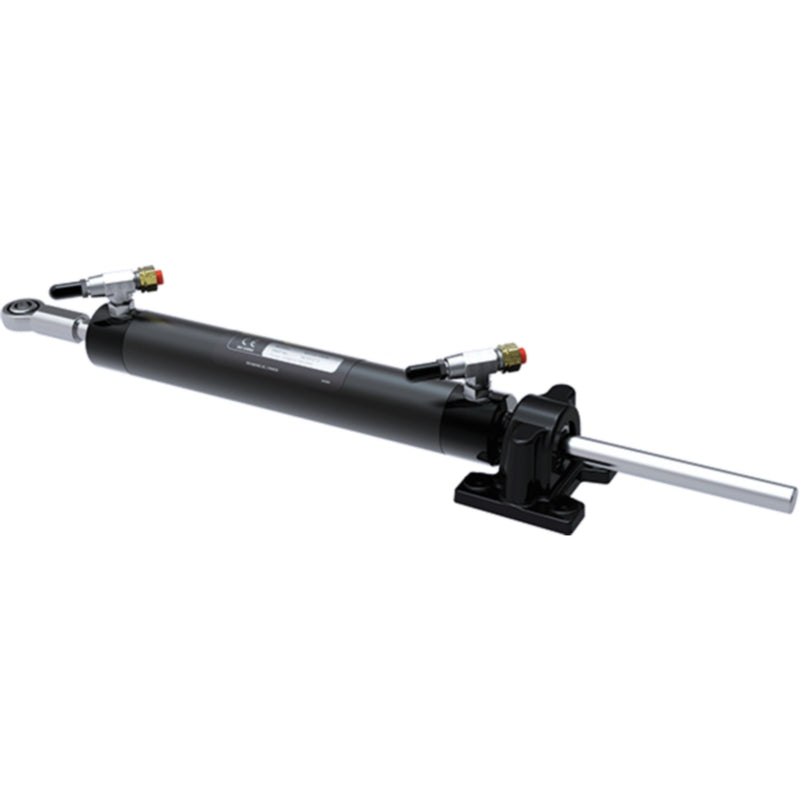

SeaStar HC5312-3 Inboard Hydraulic Steering Cylinder
The SeaStar HC5312-3 is a heavy-duty hydraulic steering cylinder designed for inboard-powered vessels with single or dual rudder configurations. With a 7-inch stroke and 7.2 cubic inch displacement, it delivers smooth, precise steering response suited to a wide range of inboard applications.
The HC5312-3 features two-axis articulation, allowing the cylinder to flex with the rudder's natural movement — reducing stress on the steering system and extending service life. Bleeder fittings are included, simplifying air purging during installation and routine maintenance.
An integrated autopilot interface port allows straightforward connection to compatible autopilot systems without additional adapters on most installations.
Key Specifications
- Model: HC5312-3
- Application: Inboard
- Stroke: 7 inches
- Displacement: 7.2 cubic inches
- Compatible Reference: BA125-7ATM
- Seal Kit: HP6023 (sold separately)
- Rudder Compatibility: Single and dual rudder
- Articulation: Two-axis
- Bleeder Fittings: Included
- Autopilot Interface: Yes
- Weight: 2.42 kg (5.34 lbs)
Best Use Cases
- Inboard vessels with single or dual rudder steering requiring a full hydraulic cylinder replacement or upgrade
- Boats where two-axis articulation is needed to accommodate rudder geometry or reduce system stress
- Installations where autopilot integration is planned or already in place
- Full hydraulic steering system builds on inboard-powered cruisers, sportfishers, and workboats
In the Box
- HC5312-3 Hydraulic Steering Cylinder with bleeder fittings installed
Note: The HP6023 seal kit is recommended as a service item and is available separately. Always follow the manufacturer's installation guide and consult a qualified marine technician for installation.
Parts Desk Insights
This cylinder is the go-to choice for inboard rudder applications where two-axis articulation is required — particularly on twin-rudder vessels or installations where the cylinder mount angle doesn't align perfectly with the rudder arm. The included bleeder fittings are a practical advantage during commissioning. Stock the HP6023 seal kit alongside this unit for customers doing a full service or rebuild. Before ordering, confirm the customer's helm pump displacement matches the 7.2 cu. in. cylinder rating, and verify rudder arm geometry to ensure correct stroke utilization. For dual-rudder setups, confirm whether a second cylinder or a tie-bar arrangement is being used.
