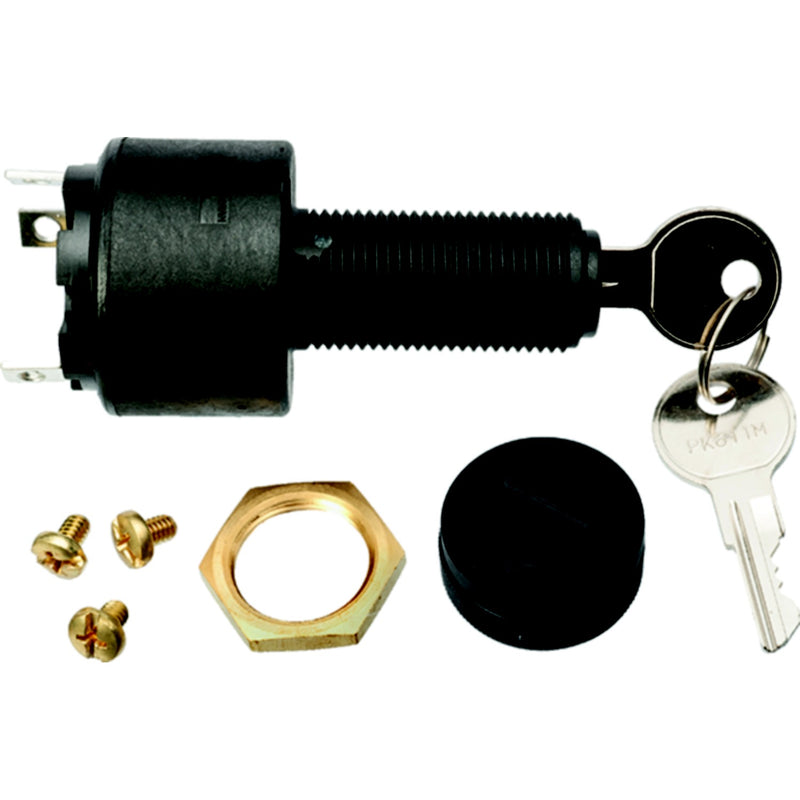

Sierra MP39200 Marine Ignition Starter Switch – 3-Position, Conventional, 3-Screw, 12V/15A
Free returns on all eligible orders
You have 30 days to request a return. All sale items are final sale.
Sierra MP39200 Marine Ignition Starter Switch – 3-Position Conventional, 3-Screw Terminal, 12V/15A
The Sierra MP39200 is a heavy-duty marine ignition starter switch built for conventional ignition systems with screw-terminal wiring connections. The 3-screw terminal layout accepts ring and spade lug connectors directly, making it the preferred choice when your wiring harness uses crimped lug connectors rather than blade-style push-on connectors. A corrosion-resistant polyester housing with an inner cylinder seal keeps moisture out and prevents shorts in demanding saltwater and high-humidity marine environments.
The 3-position action — Off, Ignition, and Start — provides clean, positive control over engine startup and shutdown, backed by a 30A solenoid rating and a 15A circuit rating. The 1-1/8" cylinder diameter and 7/8" mounting hole fit a wide range of marine dash panels. Note: no push-to-choke function or boot is included.
Key Specifications
- Part Number: 11-MP39200
- Switch Type: 3-Position (Off – Ignition – Start)
- Ignition Type: Conventional
- Voltage: 12V DC
- Current Rating: 15A
- Solenoid: 30A
- Cylinder Diameter: 1-1/8"
- Mounting Hole: 7/8"
- Terminals: 3 Screw
- Housing Material: Polyester (corrosion-resistant)
- Inner Cylinder Seal: Yes
- Push-to-Choke: Not included
- Boot: Not included
Compatible Applications
- Outboard and inboard engines with conventional ignition systems and screw-terminal wiring harnesses
- Marine helm panels with a 7/8" mounting hole accepting a 1-1/8" cylinder switch
- Installations using ring or spade lug connectors rather than blade-style push-on connectors
- 12V DC electrical systems requiring a 3-position Off/Ignition/Start switch
- Direct replacement for worn or damaged OEM conventional ignition switches with 3-screw terminal connections
Parts Desk Insights
The MP39200 is the right choice when your conventional ignition wiring harness uses ring or spade lug connectors that terminate to screw posts — the same application as the closely related Sierra MP39120 Conventional 3-Screw Switch. Both are conventional polyester 3-position 3-screw switches in the 1-1/8" format; if you’re replacing an OEM switch, match the part number on your existing switch to confirm the correct fit. If your harness uses blade-style push-on connectors instead, the Sierra MP39770 Conventional 3-Blade Terminal Switch is the correct fit and includes a boot. For a 4-position switch with an Accessory position, the Sierra MP41040 4-Position Conventional Switch (boot included) or the Sierra MP39800 4-Position Conventional Switch (no boot) are the next step up.
