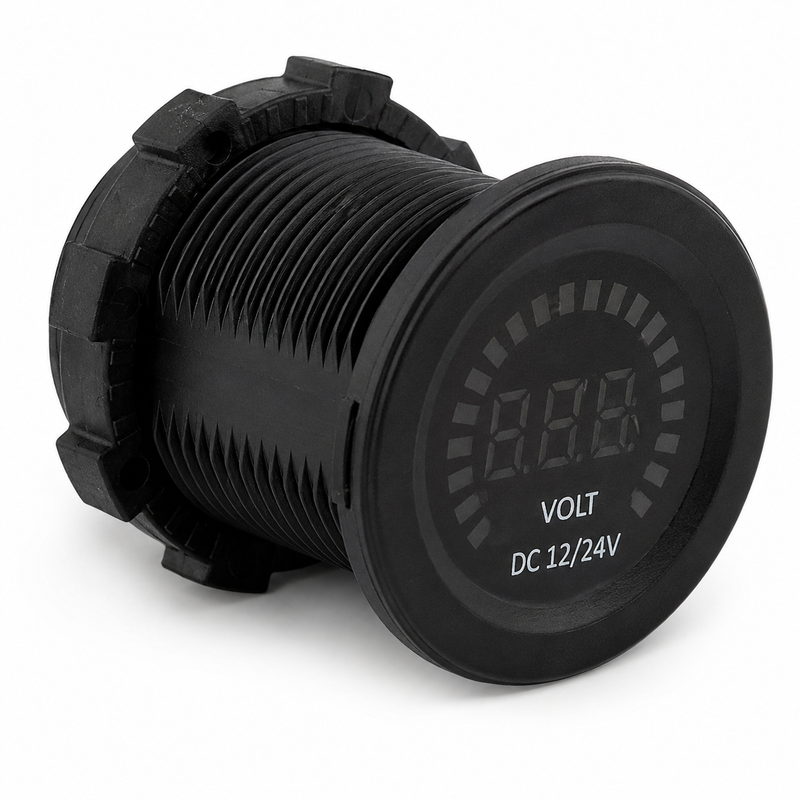

Sierra Digital Graph Display Voltmeter
A compact, panel-mount digital voltmeter that gives you a precise, real-time read on your DC system voltage — right from a standard 1-1/8" cutout. The Sierra EA01090 combines a 3-digit LED display with a circumferential battery level graph, so you get both an exact voltage reading and an intuitive charge level indicator at a glance. Self-powered from the circuit being measured, it requires no separate power feed — just a clean 2-wire connection. IP67 rated and completely sealed for reliable performance in the marine environment.
Key Features
- 3-digit digital LED display with floating decimal point for precision below 10V
- Circumferential battery level graph display for at-a-glance charge status
- Voltage range: 2.5–30V DC — compatible with 12V and 24V systems
- Resolution: 0.010V
- Sampling rate: 2ms for responsive, real-time readings
- Self-powered from the DC voltage being measured — no separate power wire required
- 2-wire design for simple installation
- Fits standard 1-1/8" panel cutout
- IP67 rated — completely sealed against dust and water immersion
- Reverse polarity protection
- Current consumption: less than 30mA
Installation
Fits any standard 1-1/8" round panel cutout. 2-wire self-powered design — connects directly to the circuit being monitored. Compatible with 2.5–30V DC systems. Part number: 11-EA01090.
Parts Desk Insights
Best Use Case: This voltmeter is the right fit for customers who want a clean, accurate battery or system voltage display at the helm without running a dedicated power feed. The 2-wire self-powered design makes it one of the simplest panel instruments to install — ideal for retrofits on boats where running additional wiring is difficult. The circumferential graph adds visual battery state-of-charge context alongside the precise digital readout, making it more informative than a basic analog gauge. Well-suited for monitoring house banks, start batteries, or any 12V/24V circuit. The IP67 rating makes it appropriate for exposed helm positions on open boats.
