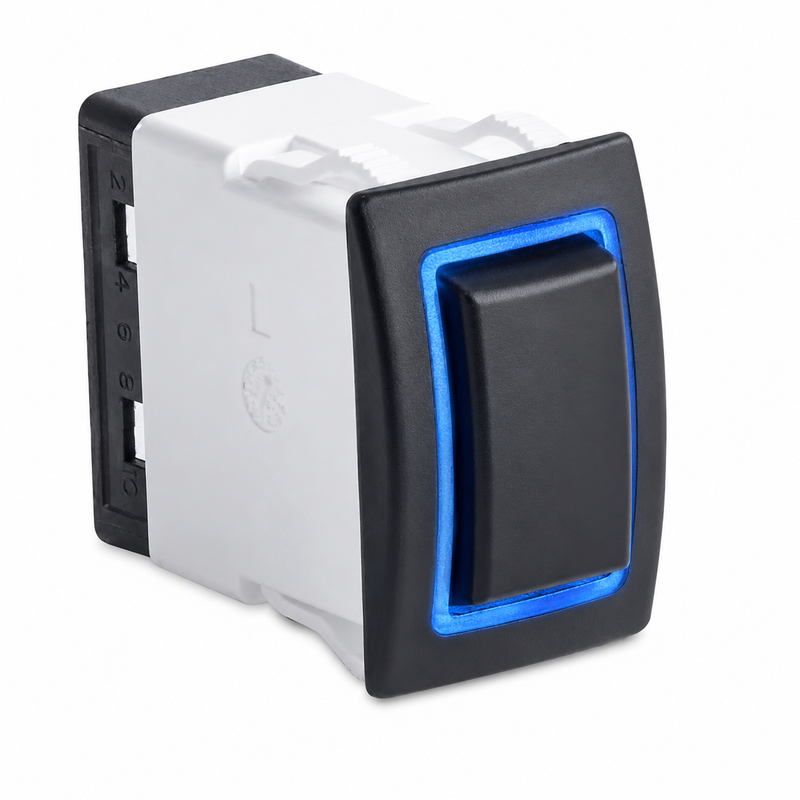

Sierra RK40690B Marine Rocker Switch – On-Off-On, SPDT, Blue Halo LED, IP68, Status Illumination
The Sierra RK40690B is a premium illuminated marine rocker switch with a maintained On-Off-On SPDT (Single Pole, Double Throw) configuration and a blue halo LED with dependent (status) illumination. Unlike switches with independent illumination that glow continuously regardless of switch position, the RK40690B’s LED is dependent — it only illuminates when the switch is in an active position, giving you a clear visual confirmation that the circuit is energized. This makes it the preferred choice for applications where you want the switch to serve as a circuit status indicator, not just a panel backlight.
The blue halo LED illuminates the perimeter of the switch when active. Sealed to IP68 for direct water exposure protection. Rated at 20A at 12V DC for high-current marine loads. The dedicated TE connector with .110 terminals provides a secure, vibration-resistant wiring connection. Fits industry-standard panel cutouts for straightforward installation in new builds and retrofits.
Key Specifications
- Part Number: 11-RK40690B
- Switch Type: Rocker, On-Off-On (maintained)
- Circuit Configuration: SPDT (Single Pole, Double Throw)
- Action: Maintained — stays in position when released
- LED Color: Blue
- Illumination Type: Dependent (status) — LED illuminates only when switch is in an active position
- Sealing: IP68
- Current Rating: 20A at 12V DC
- Connector: Dedicated TE connector, .110 terminals
- Panel Cutout: Industry-standard fit
- Note: (On) in parentheses on any switch in this series designates a momentary position
Compatible Applications
- Marine helm panels where the switch LED should indicate circuit status rather than provide continuous panel lighting
- Single-circuit On-Off-On switching with a center-off position and blue status LED
- High-current marine loads up to 20A at 12V DC
- New helm panel builds and retrofits using industry-standard panel cutouts
- Powerboats, center consoles, sportfishers, and cruisers requiring status-indicating illuminated switches
Parts Desk Insights
The RK40690B is the right choice when you want the switch LED to tell you whether the circuit is on — the dependent illumination means the blue halo only glows when the switch is active, so a lit switch means the circuit is energized. This is a meaningful functional difference from switches with independent illumination, where the LED glows continuously regardless of switch position and serves primarily as a panel backlight. If you prefer independent (always-on) illumination in a blue halo LED switch, the Sierra RK40680B Blue Halo LED (On)-Off-(On) DPDT uses independent illumination in the same blue color. For a non-illuminated On-Off-On SPDT switch in the Contura XIV series, the Sierra RK19050 On-Off-On SPDT is the non-illuminated alternative.
