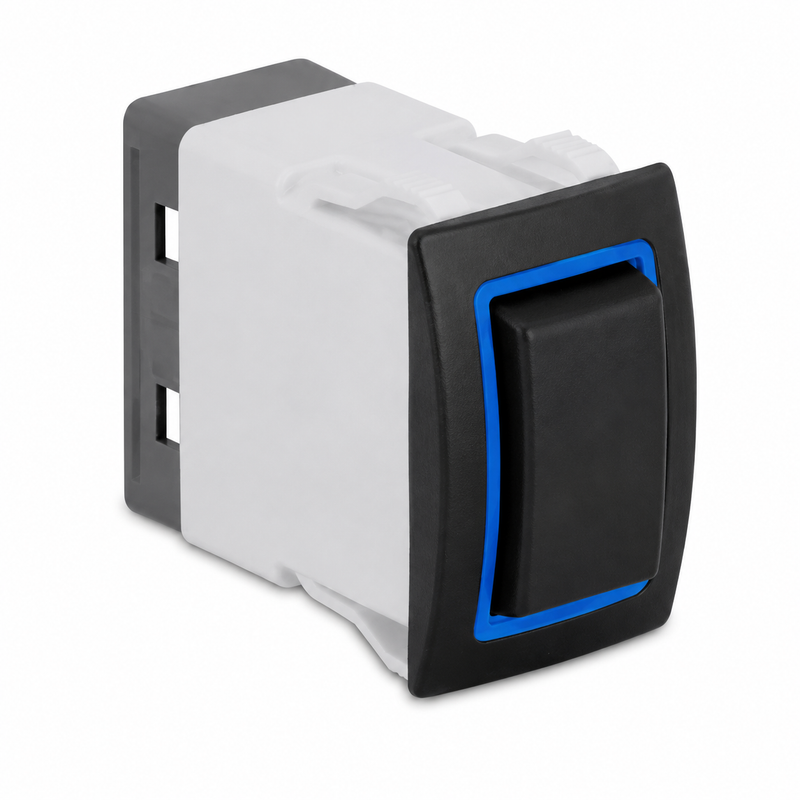

Sierra RK40700B Marine Rocker Switch – On-Off-On, DPDT, Blue Halo LED, IP68, Status Illumination
The Sierra RK40700B is a premium illuminated marine rocker switch with a maintained On-Off-On DPDT (Dual Pole, Double Throw) configuration and a blue halo LED with dependent (status) illumination. The LED only illuminates when the switch is in an active position — giving you a clear visual confirmation that the circuit is energized. This makes it the preferred choice for applications where you want the switch to serve as a circuit status indicator rather than a continuous panel backlight.
The DPDT configuration simultaneously switches two circuits between two output states, with a center-off position in between — making it ideal for reversing motor circuits (such as trim tabs or actuators where maintained position control is needed) or dual-circuit source selection. The blue halo LED illuminates the perimeter of the switch when active. Sealed to IP68 for direct water exposure protection. Rated at 20A at 12V DC for high-current marine loads. The dedicated TE connector with .110 terminals provides a secure, vibration-resistant wiring connection. Fits industry-standard panel cutouts.
Key Specifications
- Part Number: 11-RK40700B
- Switch Type: Rocker, On-Off-On (maintained)
- Circuit Configuration: DPDT (Dual Pole, Double Throw)
- Action: Maintained — stays in position when released
- LED Color: Blue
- Illumination Type: Dependent (status) — LED illuminates only when switch is in an active position
- Sealing: IP68
- Current Rating: 20A at 12V DC
- Connector: Dedicated TE connector, .110 terminals
- Panel Cutout: Industry-standard fit
- Note: (On) in parentheses on any switch in this series designates a momentary position
Compatible Applications
- Trim tab or actuator control requiring maintained dual-pole polarity reversal with blue status LED confirmation
- Dual-circuit source selection where two circuits must be routed to either of two outputs with a center-off
- Marine helm panels where the switch LED should indicate circuit status rather than provide continuous panel lighting
- High-current marine loads up to 20A at 12V DC
- New helm panel builds and retrofits using industry-standard panel cutouts with blue LED lighting
Parts Desk Insights
The RK40700B is the right choice when you need a maintained DPDT On-Off-On switch with a blue status LED that only lights when the circuit is active — the combination of dual-pole switching and status illumination makes it well suited for trim tab panels where you want to see which direction is engaged. The dependent illumination means the LED confirms circuit state rather than glowing continuously, which is a meaningful functional difference from independent-illumination switches. For the same blue status illumination in a single-pole SPDT configuration, the Sierra RK40690B Blue Halo LED On-Off-On SPDT switches one circuit rather than two. For a green status LED in the same DPDT On-Off-On configuration, the Sierra RK40700G Green Halo LED On-Off-On DPDT is the color alternative. For a non-illuminated maintained DPDT On-Off-On switch, the Sierra RK19090 Contura XIV On-Off-On DPDT is available.
