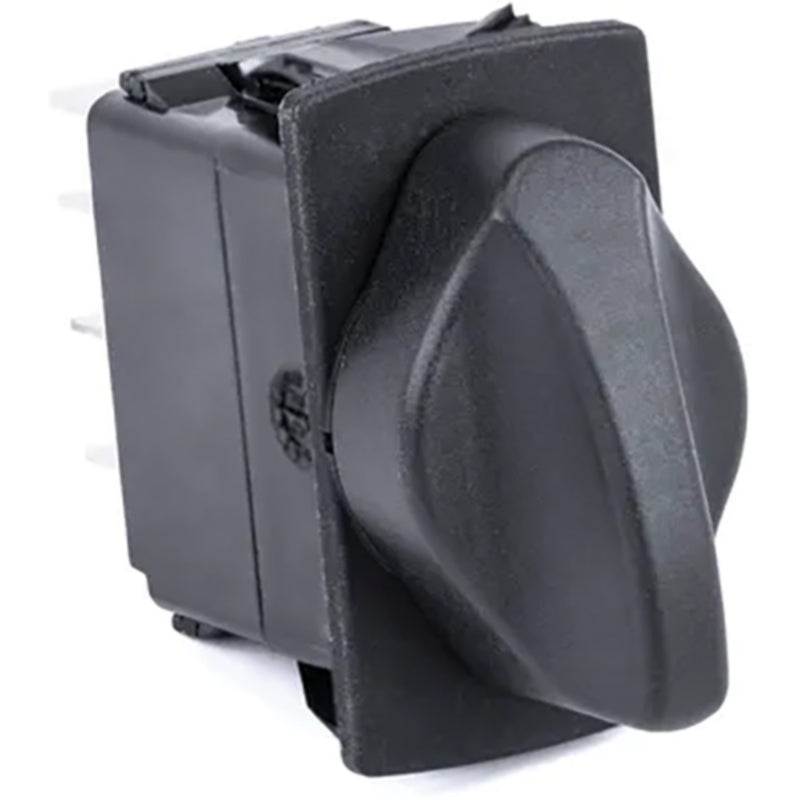

Sierra RS20050 Contura Marine Rotary Switch – Off-On-(On), 3-Position (Off/1/1&2), IP67, Definitive Detent
The Sierra RS20050 is a Contura marine rotary switch with a three-position Off-On-(On) configuration labeled Off / 1 / 1&2. This is a specialized battery management switch with a deliberate mix of maintained and momentary positions: Position Off disconnects all banks, Position 1 connects Battery Bank 1 only (maintained — stays in position when released), and Position 1&2 connects both banks simultaneously (momentary — springs back to Position 1 when released).
The momentary behavior on the 1&2 position is intentional — it prevents accidentally leaving both battery banks connected continuously, which could drain a reserve bank if the primary bank is depleted. This makes the RS20050 a more conservative battery management switch than the RS20040 (On-On-On, all positions maintained), suited to installations where protecting the reserve bank is a priority. The patented mechanism translates rotary motion into linear switching action, and a secondary cam provides definitive detent positions. Sealed to IP67 for above-panel components. Fits industry-standard panel openings.
Key Specifications
- Part Number: 11-RS20050
- Series: Contura
- Switch Type: Rotary (patented rotary-to-linear mechanism)
- Configuration: Off-On-(On), 3-position — Off / Bank 1 (maintained) / Banks 1&2 (momentary)
- Position Off: All banks disconnected
- Position 1: Battery Bank 1 only — maintained
- Position 1&2: Both banks simultaneously — momentary, springs back to Position 1 when released
- Illumination: None
- Detent: Secondary cam with definitive click positions
- Sealing: IP67 (above-panel components)
- Panel Opening: Industry-standard fit
- Note: (On) in parentheses designates a momentary position
Compatible Applications
- Marine battery management where Bank 1 is the primary bank and both banks should only be connected momentarily for charging or emergency use
- Installations where protecting a reserve battery bank from continuous parallel drain is a priority
- Marine helm panels requiring IP67-rated three-position battery management rotary switches
- New helm panel builds and retrofits using industry-standard panel openings
Parts Desk Insights
The RS20050 is the right choice when you want a battery selector that actively prevents leaving both banks connected — the momentary 1&2 position means you have to hold the switch to keep both banks parallel, which is the correct behavior for emergency parallel starts or equalization charging where you don’t want the connection to persist unattended. This is a more conservative battery management approach than the Sierra RS20040 On-On-On 1-2-3 Battery Selector, which keeps all positions maintained. For a two-position On-On rotary switch with a dual red/green LED indicator, the Sierra RS20000 Contura On-On Rotary Switch is the simpler two-position alternative. For a three-position On-Off-On rotary switch with a center-off and red LED, the Sierra RS20020 Contura On-Off-On Rotary Switch covers that application.
